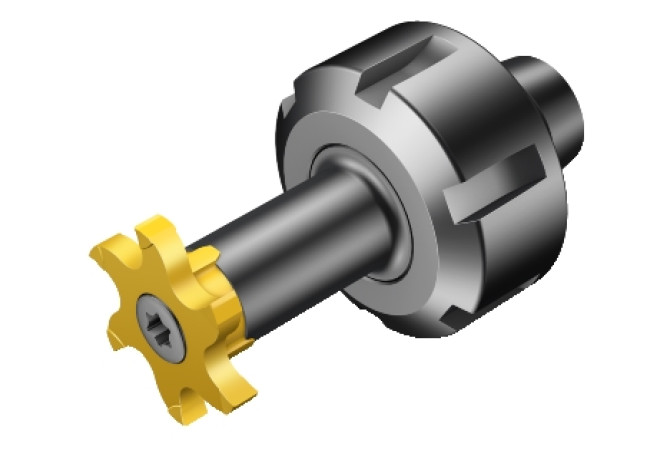

Главная Инструменты 401-02 - Converter, stationary 392.ER327-16 09 022

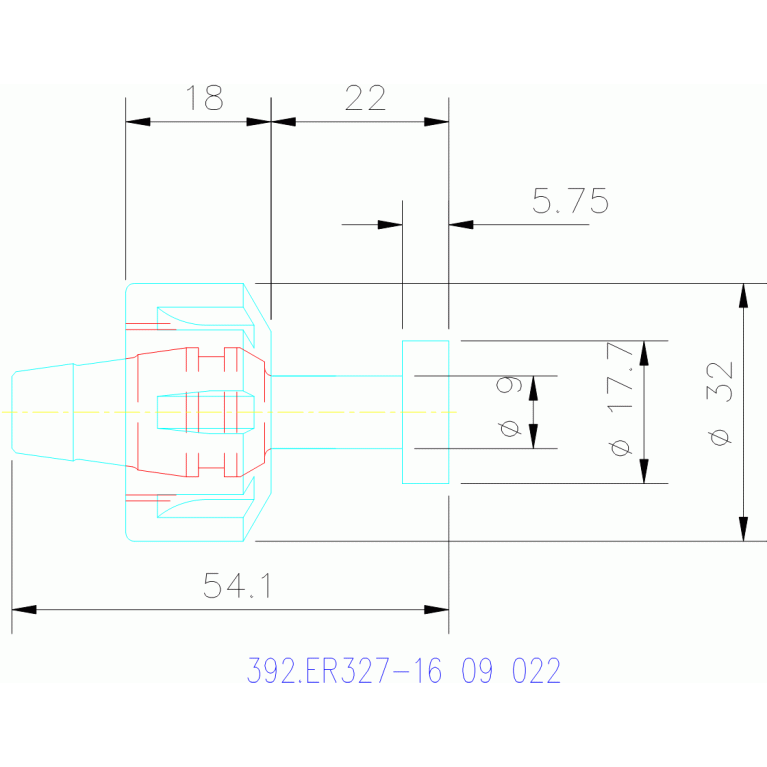

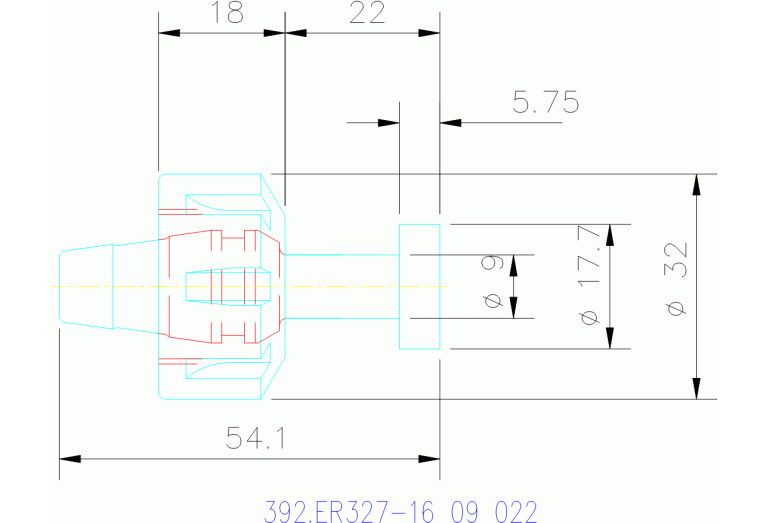

392.ER327-16 09 022

Артикул: 6073868

В наличии

0 ₽

В корзину

Описание

Характеристики

BD (Body diameter)

9 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

CMS

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

CZCWS (Connection size code)

0090

DCONWS (Diameter)

17 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

17 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SZD01600285

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

SZD02C0160$$$$

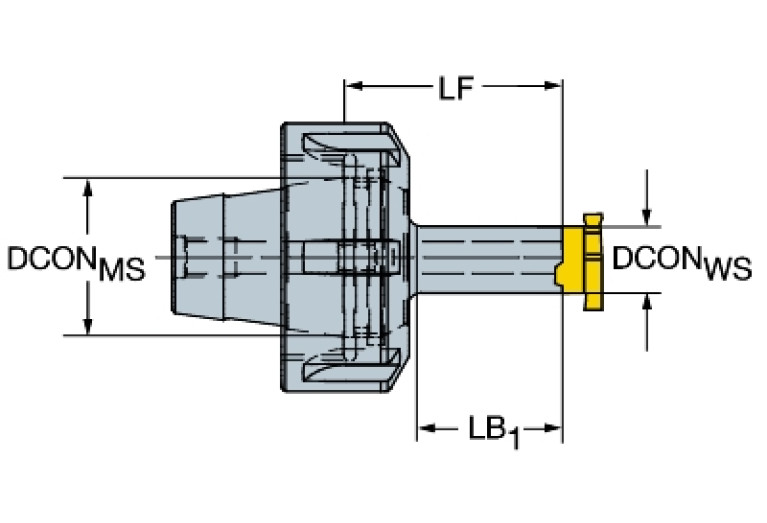

LB (Body length 1)

16.25 mm

LF (Functional length)

26.78 mm

LOC-01 ISO

CMS02C0090****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

7 Serrated connection

LOC-01 (CCTWS Connection code type)

CMS Coromant Modular boring SANDVIK

LOC-01 (CCUWS Connection code unit base)

8 non-dimensional size

LOC-01 (CZCWS Connection size code)

0090

LOC-01 (DCONWS Diameter)

17 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CMS00900287

LOC-03 ISO

SZD02C0160$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SZD Collet adapter DIN / ISO

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0160

LOC-03 (DCONMS Diameter)

17 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD01600285

LPR (Protruding length)

26.78 mm

OAL (Overall length)

48.41 mm

RPMX (Rotational speed maximum)

40000 1/min

WT (Weight of item)

0.145 kg
