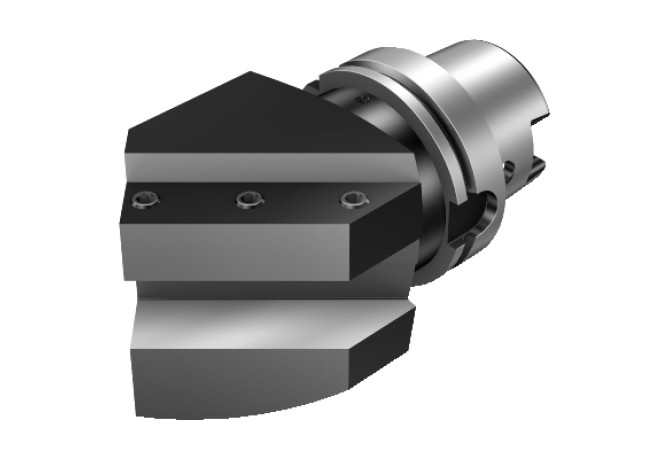

Главная Инструменты 401-02 - Converter, stationary 392.410-100-ASHL45-32

392.410-100-ASHL45-32

Артикул: 5759908

В наличии

0 ₽

В корзину

Описание

Характеристики

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

VKT

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

CZCWS (Connection size code)

3220

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

HSK10000195

HAND (Cutting direction)

L - Left

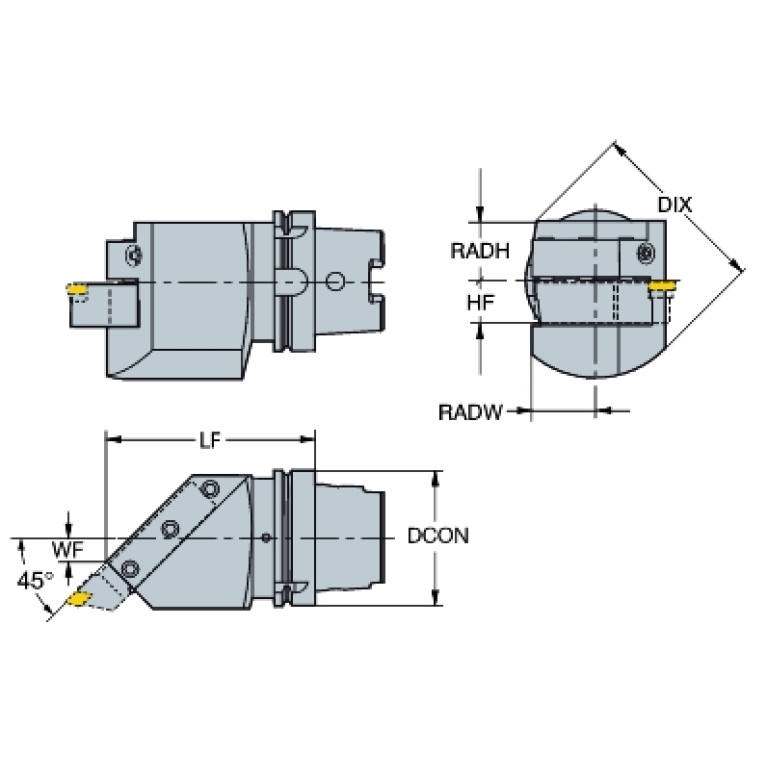

HF (Functional height)

32 mm

Interface codes

J6 / J61

ISO

HSK01C1000$$$$

LF (Functional length)

150 mm

LOC-01 ISO

VKT01A3220****VKT01A3234****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

VKT Square mounting

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

3220

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

VKT32200115VKT32340115

LOC-03 ISO

HSK01C1000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

HSK Hollow taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

1000

LOC-03 (DCONMS Diameter)

100 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK10000195

LPR (Protruding length)

150 mm

OAH (Overall height)

120 mm

OAL (Overall length)

199.9 mm

OAW (Overall width)

100 mm

RADH (Radial height)

32 mm

RADW (Radial width)

50 mm

WF (Functional width)

17 mm

WT (Weight of item)

7.804 kg
