Главная Инструменты 401-02 - Converter, stationary 327-16B42EC-12

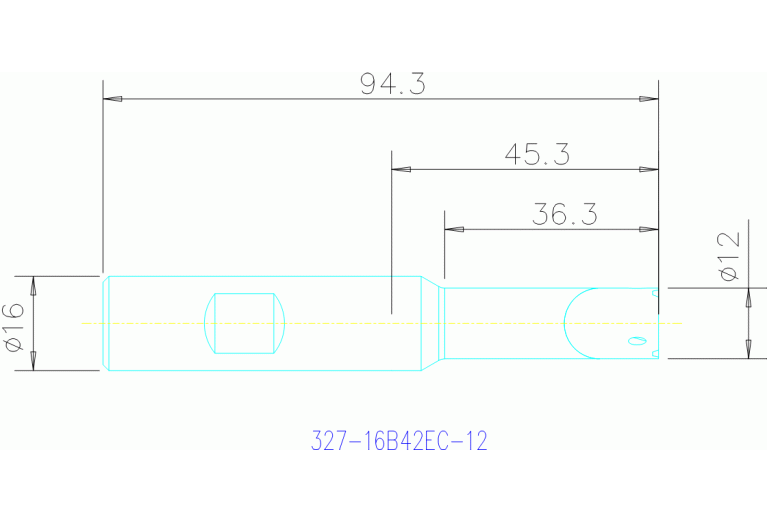

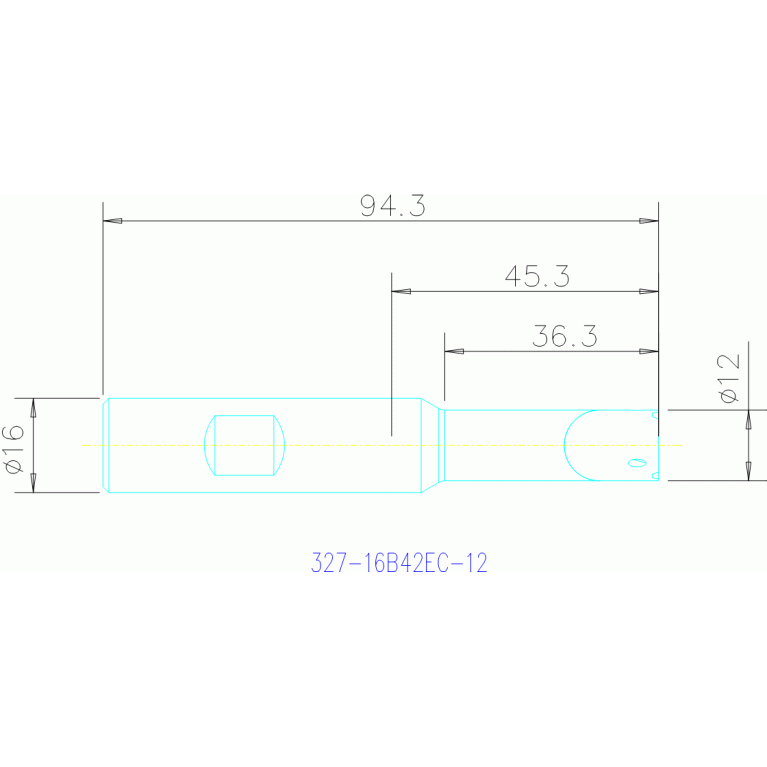

327-16B42EC-12

Артикул: 5758731

В наличии

0 ₽

В корзину

Описание

Характеристики

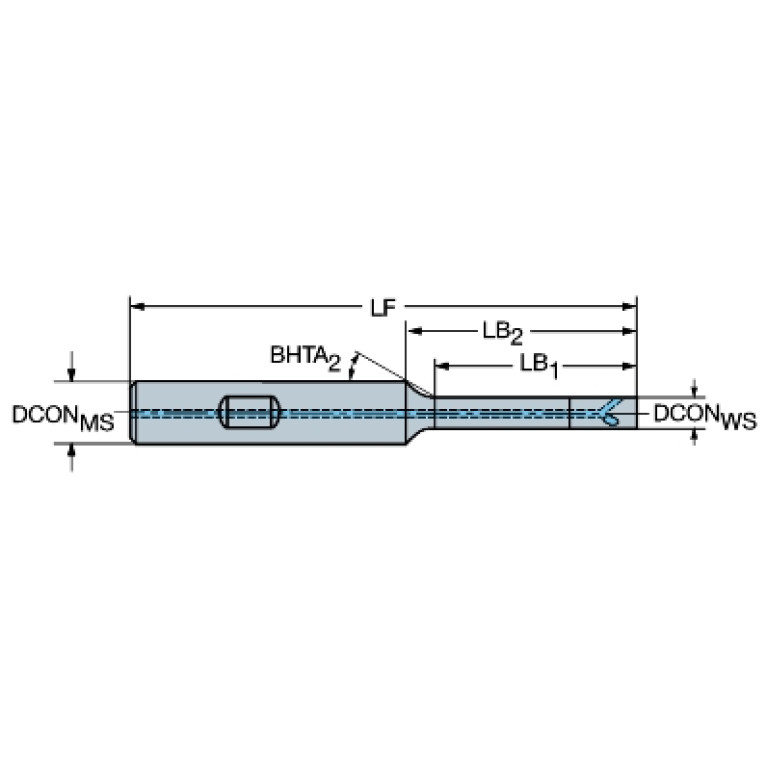

BD (Body diameter 2)

16.619 mm

BD (Body diameter)

12 mm

BHTA (Body half taper angle 2)

30 Degree

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

CMS

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0120

DCONWS (Diameter)

16 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

16 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL01601015

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

ZYL10G1600h$06

LB (Body length 1)

36.3 mm

LB (Length 2)

4 mm

LF (Functional length)

70.3 mm

LOC-01 ISO

CMS02C0120****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

7 Serrated connection

LOC-01 (CCTWS Connection code type)

CMS Coromant Modular boring SANDVIK

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0120

LOC-01 (DCONWS Diameter)

16 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CMS01200297

LOC-03 ISO

ZYL10G1600h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0160

LOC-03 (DCONMS Diameter)

16 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01601015

LPR (Protruding length)

40.3 mm

LS (Shank length)

49 mm

LSCX (Clamping length maximum)

49 mm

OAL (Overall length)

94.3 mm

RPMX (Rotational speed maximum)

40000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

WT (Weight of item)

0.228 kg
