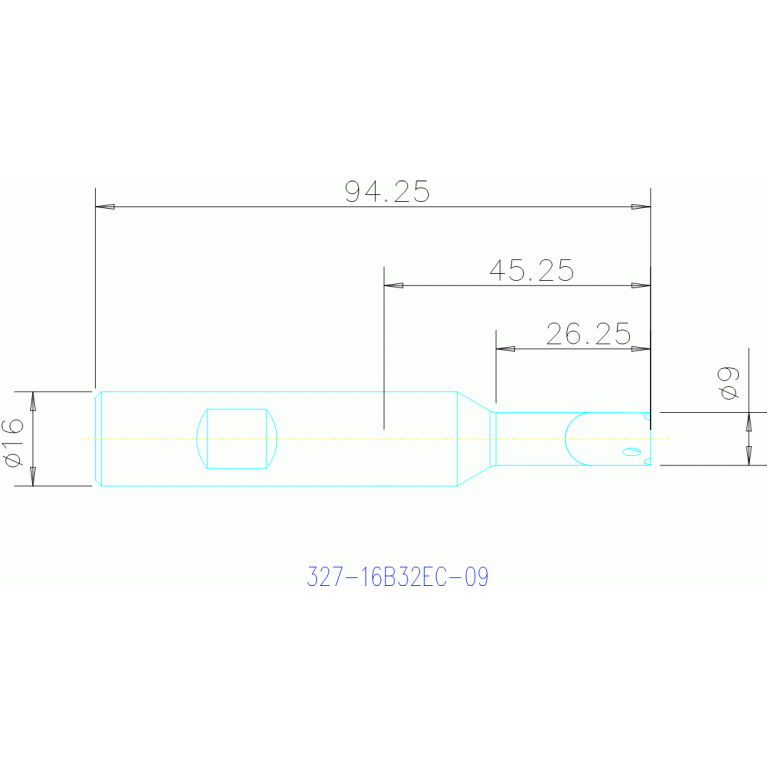

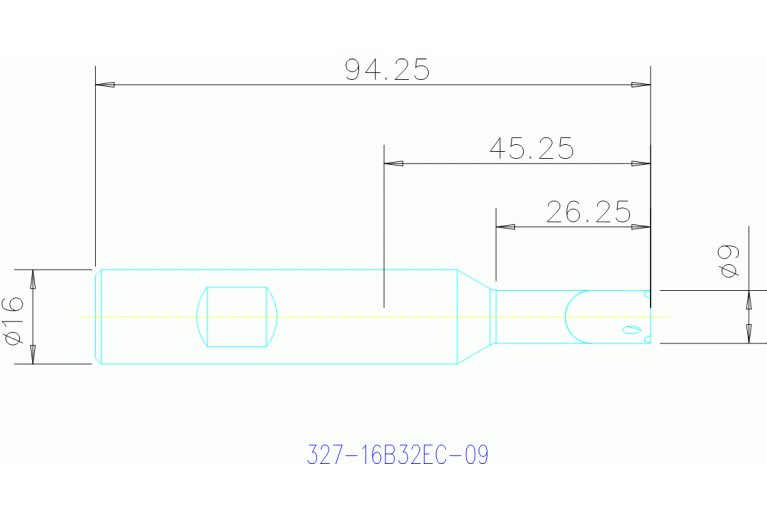

Главная Инструменты 401-02 - Converter, stationary 327-16B32EC-09

327-16B32EC-09

327-16B32EC-09 327-16B32EC-09 327-16B32EC-09 327-16B32EC-09

327-16B32EC-09

SV - Sandvik-Coromant
Артикул: 5758730
В наличии
0 ₽
В корзину
Описание
Характеристики
BD (Body diameter 2)
16.619 mm
BD (Body diameter)
9 mm
BHTA (Body half taper angle 2)
30 Degree
BLDEV (Balancing device)
CCFWS (Connection code form)
02
CCSWS (Connection code style)
7
CCTWS (Connection code type)
CMS
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0090
DCONWS (Diameter)
16 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
16 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
ZYL01601015
HAND (Cutting direction)
N - Neutral
Interface codes
J6 / J61
ISO
ZYL10G1600h$06
LB (Body length 1)
26.25 mm
LB (Length 2)
6.598 mm
LF (Functional length)
70.25 mm
LOC-01 ISO
CMS02C0090****
LOC-01 (CCFWS Connection code form)
02
LOC-01 (CCSWS Connection code style)
7 Serrated connection
LOC-01 (CCTWS Connection code type)
CMS Coromant Modular boring SANDVIK
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0090
LOC-01 (DCONWS Diameter)
16 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CMS00900297
LOC-03 ISO
ZYL10G1600h$06
LOC-03 (CCFMS Connection code form)
10
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
0160
LOC-03 (DCONMS Diameter)
16 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01601015
LPR (Protruding length)
45.25 mm
LS (Shank length)
49 mm
LSCX (Clamping length maximum)
49 mm
OAL (Overall length)
94.25 mm
RPMX (Rotational speed maximum)
40000 1/min
TCDCONMS (ISO-tolerance class shank diameter)
h6
WT (Weight of item)
0.2 kg
