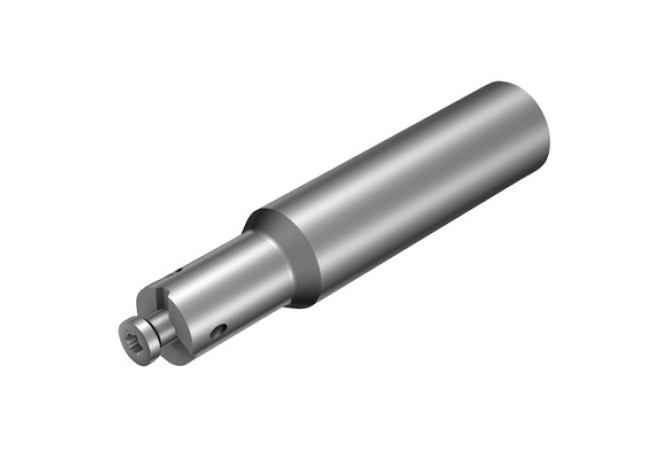

Главная Инструменты 401-02 - Converter, stationary 327-16A42EC-14

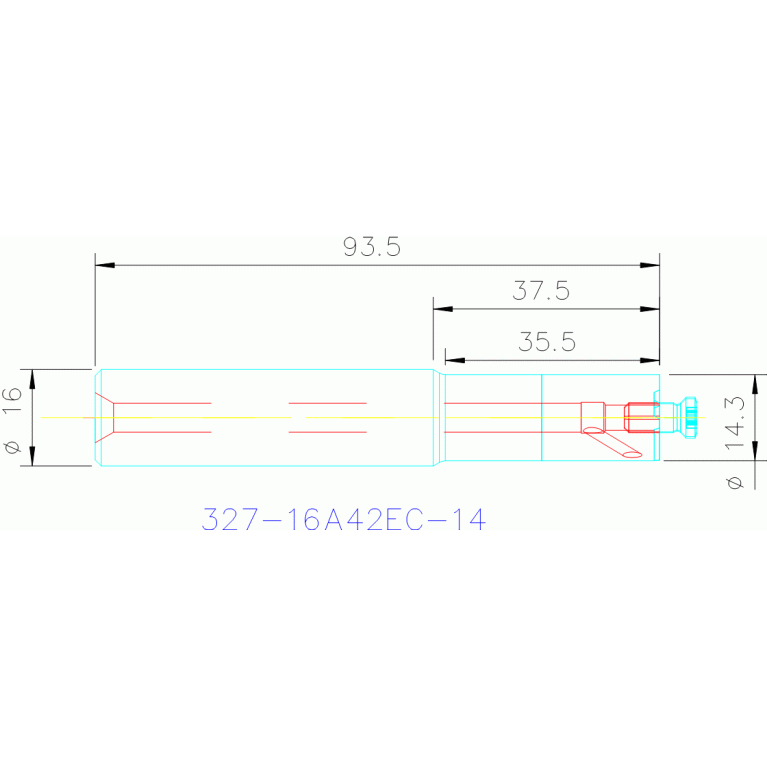

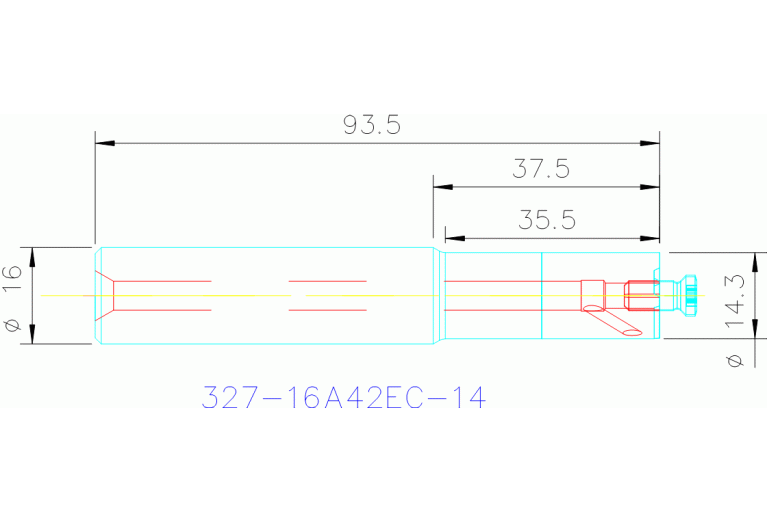

327-16A42EC-14

Артикул: 8610067

В наличии

0 ₽

В корзину

Описание

Характеристики

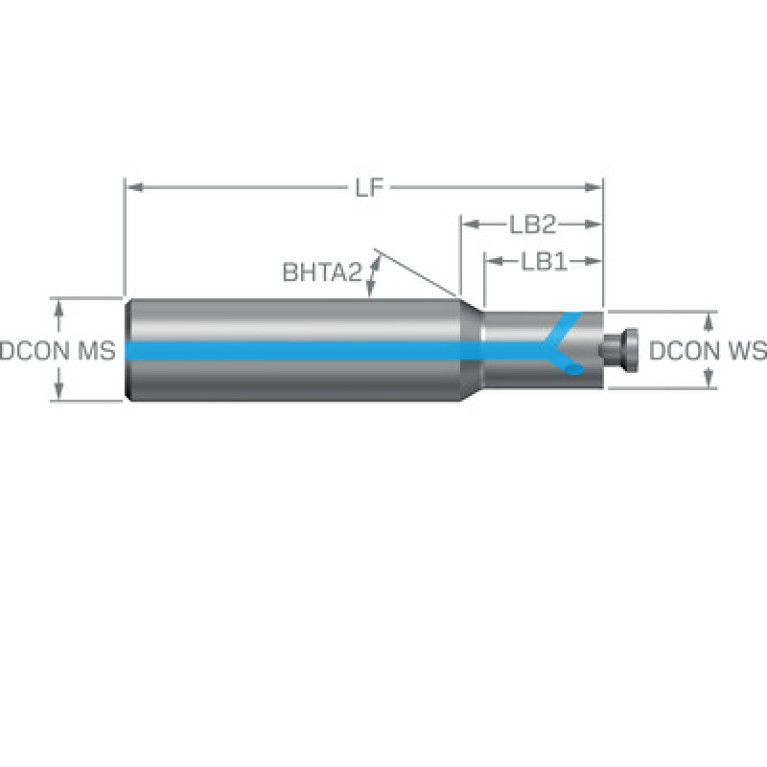

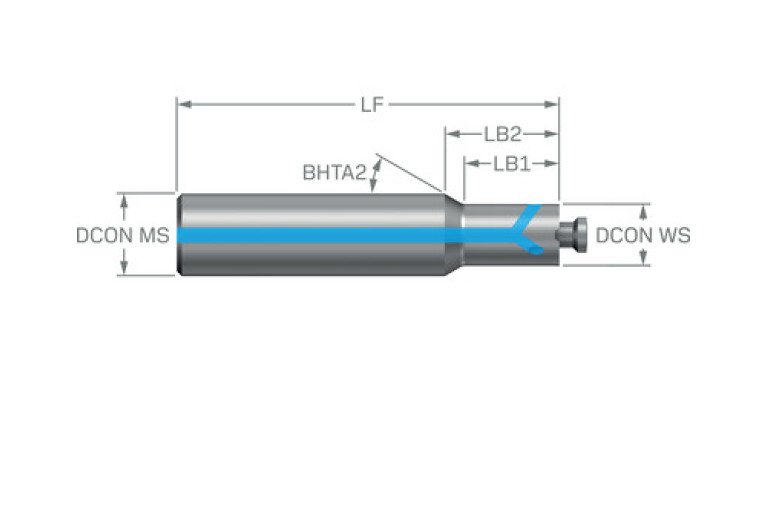

BD (Body diameter 2)

16.609 mm

BD (Body diameter)

14.3 mm

BHTA (Body half taper angle 2)

30 Degree

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

CMS

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

CZCWS (Connection size code)

0140

DCONWS (Diameter)

14.3 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

14.3 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2024

DIN

ZYL01600115

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

ZYL01G1600h$06

LB (Body length 1)

35.5 mm

LB (Length 2)

2 mm

LF (Functional length)

93.5 mm

LOC-01 ISO

CMS02C0140****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

7 Serrated connection

LOC-01 (CCTWS Connection code type)

CMS Coromant Modular boring SANDVIK

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0140

LOC-01 (DCONWS Diameter)

14.3 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CMS01400297

LOC-03 ISO

ZYL01G1600h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0160

LOC-03 (DCONMS Diameter)

16 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600115

LPR (Protruding length)

44.5 mm

OAL (Overall length)

93.5 mm

TCDCONMS (ISO-tolerance class shank diameter)

WT (Weight of item)

0.245 kg
