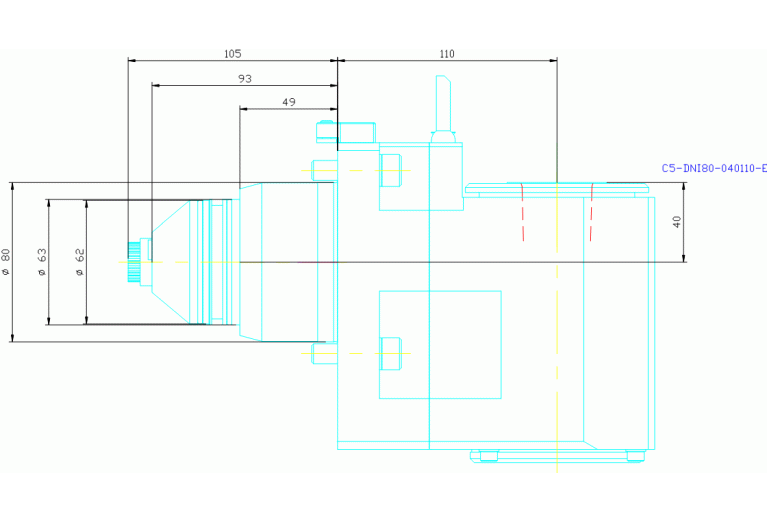

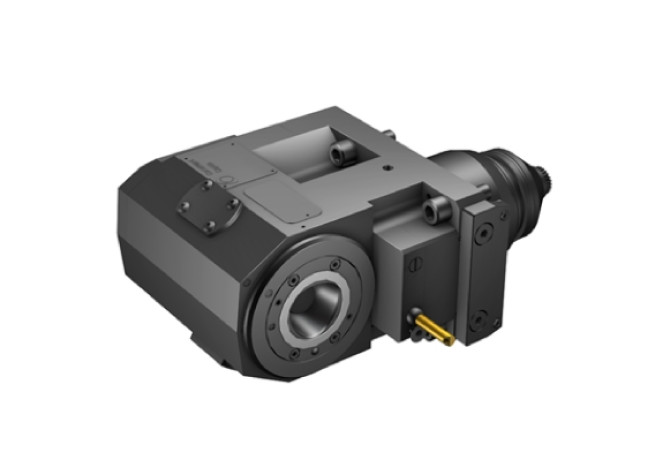

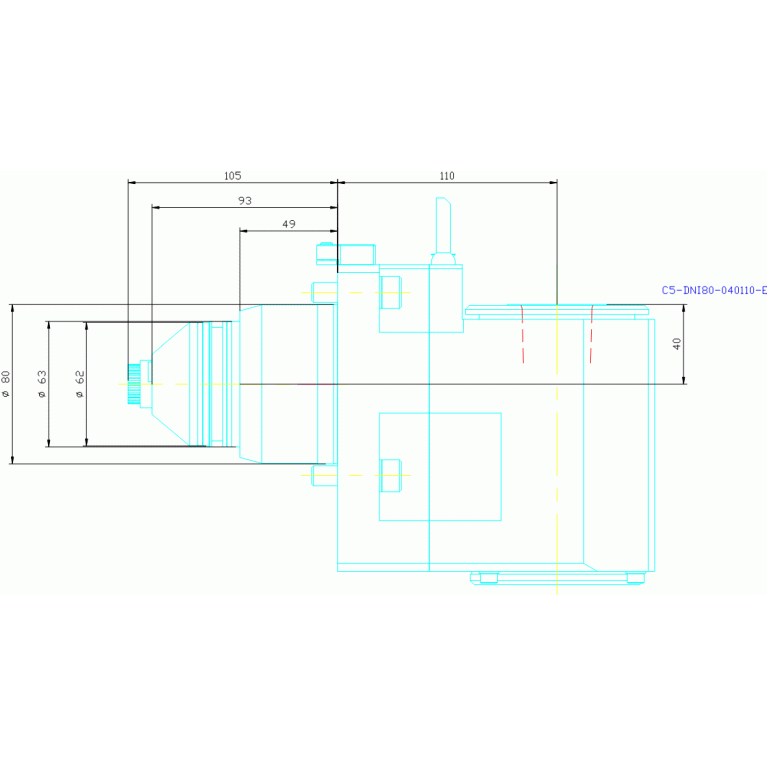

Главная Инструменты 403-05 - Driven tool unit - 90 degree output design C5-DNI80-040110-E

C5-DNI80-040110-E

Артикул: 6039889

В наличии

0 ₽

В корзину

Описание

Характеристики

CNSC (Coolant entry style code)

7 - Coolant entry, decentral and axially concentric

CONARWS (Connection arrangement workpiece side)

CXSC (Coolant exit style code)

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CXSC (Coolant exit style code) / Тип подвода СОЖ

6 - With coolant supply (discharge), peripheral/decentralized adjustable

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

FLC038N0295

DIN CSW1

CCS05000195

Interface codes

J6 / J61

Interface codes CSW1

J41 / J431

ISO

FLC02C038N$$$$

ISO CSW1

CCS01C0500****

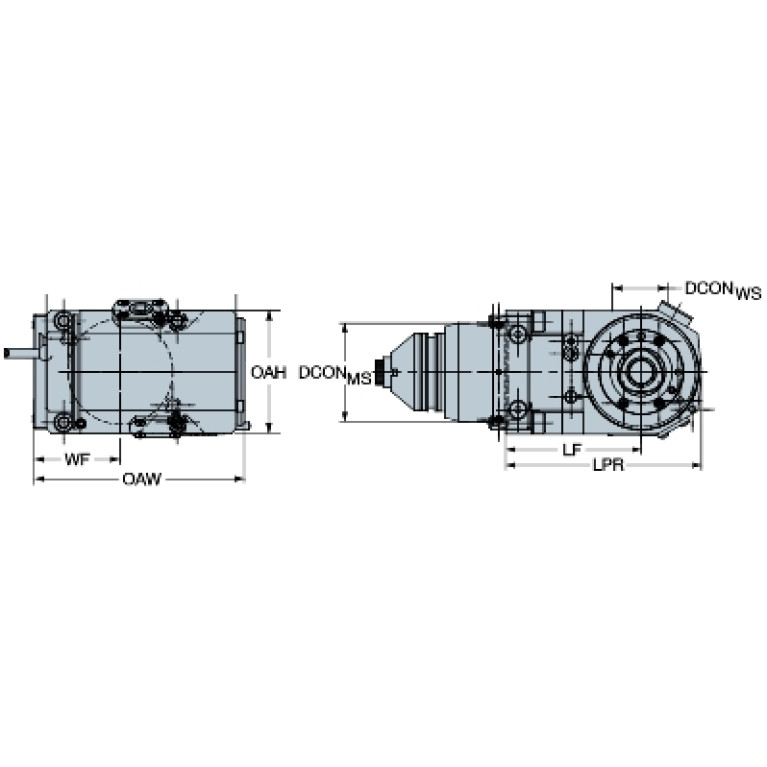

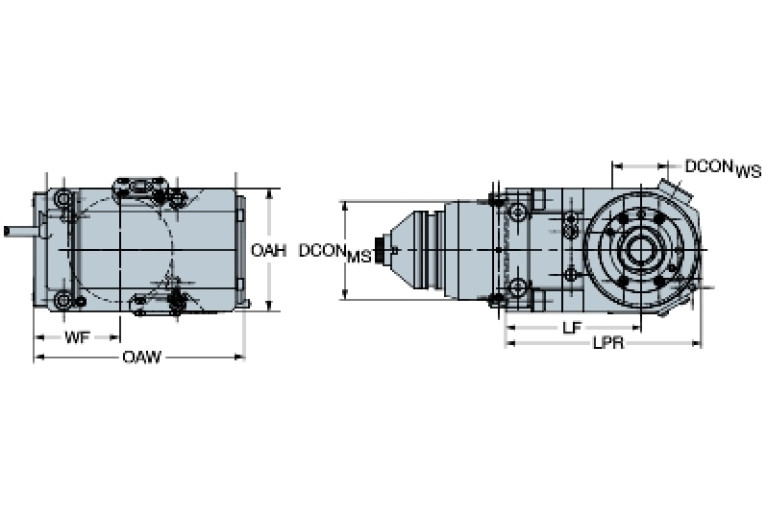

LF (Functional length)

110 mm

LOC-01 ISO

CCS01C0500****

LOC-01-Connection-codes

J41 / J441 - Trennstellenkodierung, Abtrieb 1

LOC-01-DIN

CCS05000195

LOC-02 ISO

CCS02C0500****

LOC-02-Connection-codes

J41 / J441 - Trennstellenkodierung, Abtrieb 1

LOC-02-DIN

CCS050002

LOC-03 ISO

FLC02C038N$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

FLC Flange mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

038N

LOC-03 (DCONMS Diameter)

80 mm

LOC-03-Connection-codes

J6 / J61 - Trennstellenkodierung, maschinenseitig

LOC-03-DIN

FLC038N0295

LPR (Protruding length)

159 mm

OAH (Overall height)

100 mm

OAL (Overall length)

159 mm

OAW (Overall width)

170.6 mm

RPMX (Rotational speed maximum)

6000 1/min

WF (Functional width)

40 mm

Working process

No working processes available

WT (Weight of item)

16.56 kg
