Главная Инструменты 403-05 - Driven tool unit - 90 degree output design C3-DNI-NA55A-I

C3-DNI-NA55A-I

Артикул: 6144211

В наличии

0 ₽

В корзину

Описание

Характеристики

CCSWS (Connection code style workpiece side)

5 - Shaft in machine direction or hole in workpiece direction

CCUWS (Connection code unit base workpiece side)

9 - non-dimensional size with coolant

CNSC (Coolant entry style code)

7 - Coolant entry, decentral and axially concentric

CONARWS (Connection arrangement workpiece side)

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

FLCE5AD0295

DIN CSW1

CCS03200195

Interface codes

J6 / J61

Interface codes CSW1

J41 / J431

ISO

FLC02CE5AD$$$$

ISO CSW1

CCS01C0320****

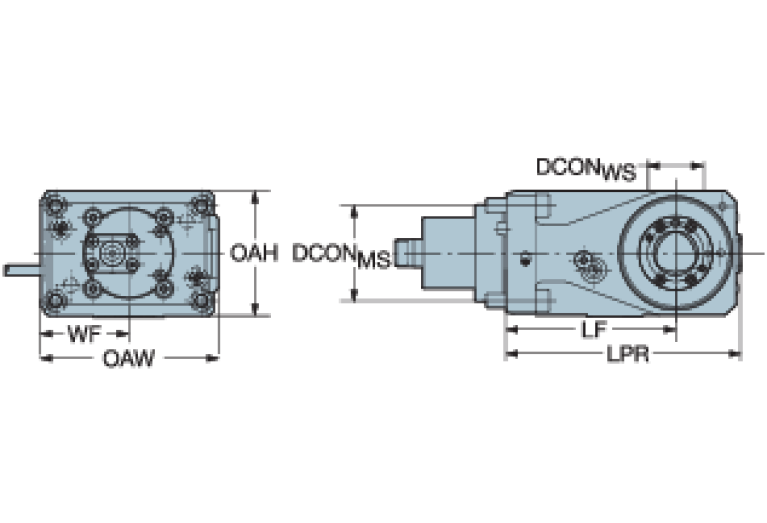

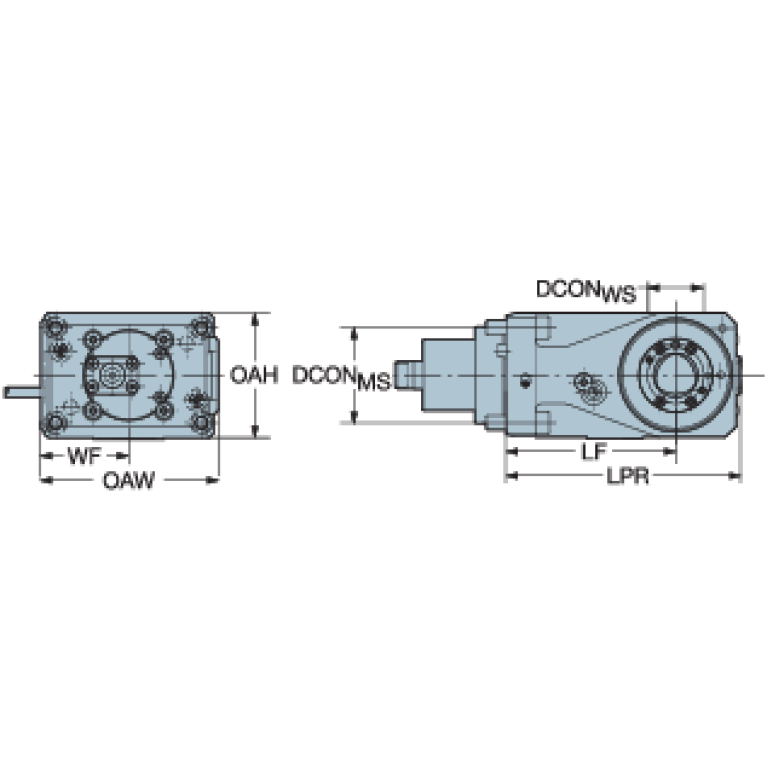

LF (Functional length)

65 mm

LOC-01 ISO

CCS01C0320****

LOC-01-Connection-codes

J41 / J441 - Trennstellenkodierung, Abtrieb 1

LOC-01-DIN

CCS03200195

LOC-02 ISO

CCS02C0320****

LOC-02-Connection-codes

J41 / J441 - Trennstellenkodierung, Abtrieb 1

LOC-02-DIN

CCS03200295

LOC-03 ISO

FLC02CE5AD$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

FLC Flange mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

E5AD

LOC-03 (DCONMS Diameter)

55 mm

LOC-03-Connection-codes

J6 / J61 - Trennstellenkodierung, maschinenseitig

LOC-03-DIN

FLCE5AD0295

LPR (Protruding length)

100 mm

OAH (Overall height)

84 mm

OAL (Overall length)

208 mm

OAW (Overall width)

104 mm

RPMX (Rotational speed maximum)

6000 1/min

WF (Functional width)

50 mm

Working process

No working processes available

WT (Weight of item)

5.316 kg
