Главная Инструменты 303-02 - Centre cutting end mill RA215.26-4050DAK20H 1610

RA215.26-4050DAK20H 1610

Артикул: 5739296

В наличии

0 ₽

В корзину

Описание

Характеристики

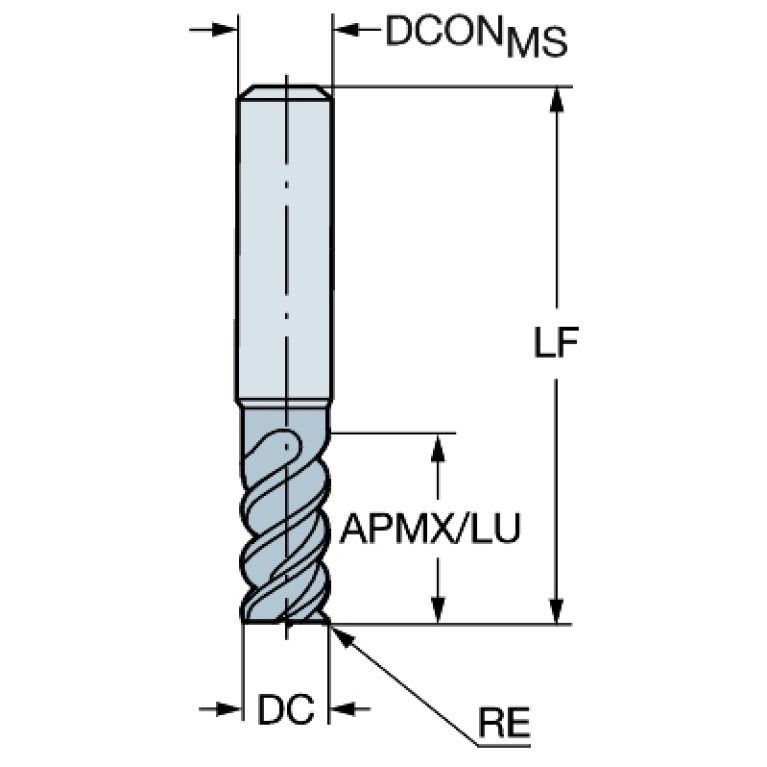

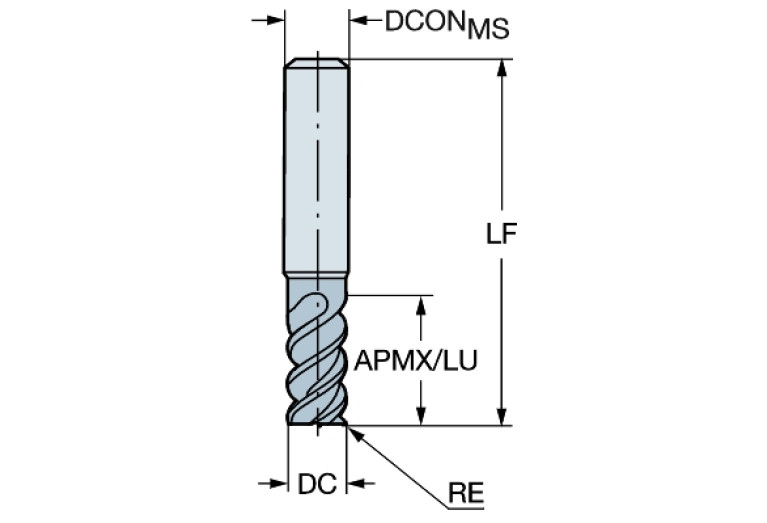

APMX (Depth of cut maximum)

31.75 mm

BMC (Body material code)

H - Solid carbide

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD TIALN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

15.875 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL06250125

F71 (Number of corner designs)

FHA (Flute helix angle)

50 Degree

FHH (Flute helix hand)

R - Hand of helix right

GAMF (Rake angle radial)

-8.5 Degree

GAMP (Rake angle axial)

1.5 Degree

GRDMFG (Grade manufacturers designation)

1610

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01R6250h$06

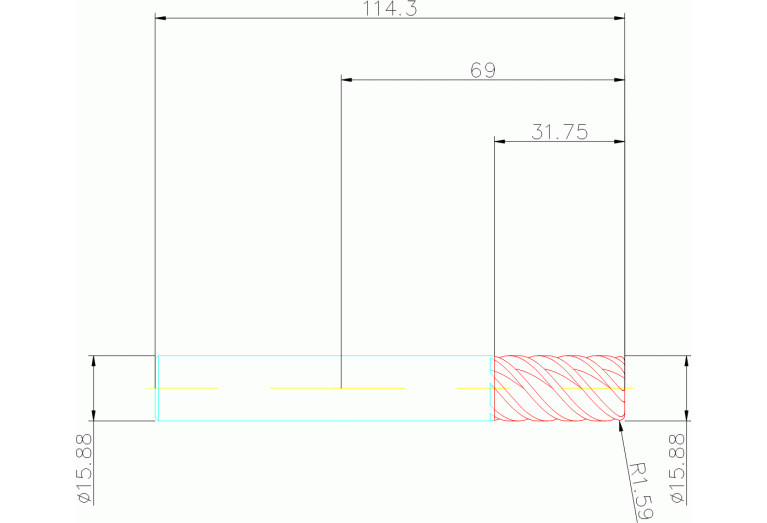

LF (Functional length)

114.3 mm

LOC-03 ISO

ZYL01R6250h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

0625

LOC-03 (DCONMS Diameter)

15.875 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL06250125

LPR (Protruding length)

65.9 mm

OAL (Overall length)

114.3 mm

RE (Corner radius)

1.588 mm

RMPX (Ramping angle maximum)

2 Degree

RPMX (Rotational speed maximum)

80000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling

WT (Weight of item)

0.36 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
