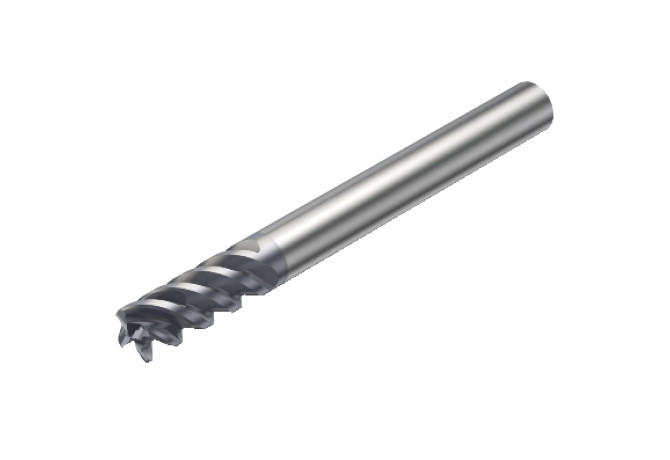

Главная Инструменты 303-02 - Centre cutting end mill R216.24-20050IAK38P 1620

R216.24-20050IAK38P 1620

Артикул: 5742906

В наличии

0 ₽

В корзину

Описание

Характеристики

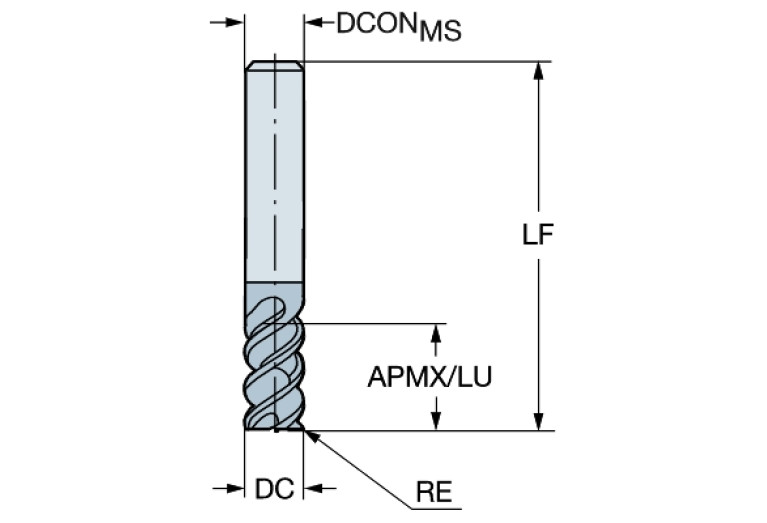

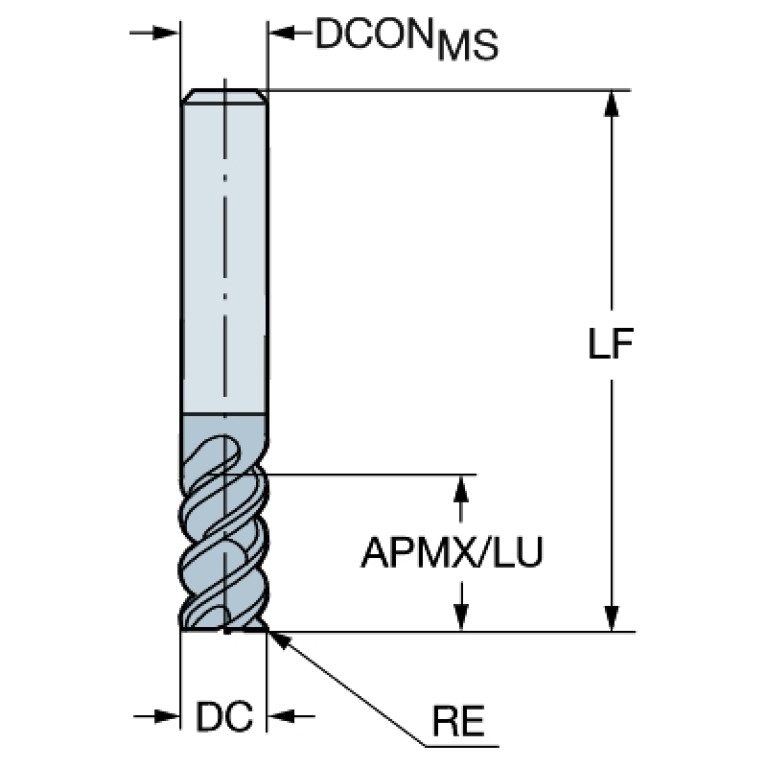

APMX (Depth of cut maximum)

38 mm

BMC (Body material code)

H - Solid carbide

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD TiAlN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

20 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL02000105

F71 (Number of corner designs)

FHA (Flute helix angle)

50 Degree

FHH (Flute helix hand)

R - Hand of helix right

GAMF (Rake angle radial)

10.5 Degree

GAMP (Rake angle axial)

13.5 Degree

GRDMFG (Grade manufacturers designation)

1620

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01G2000h$06

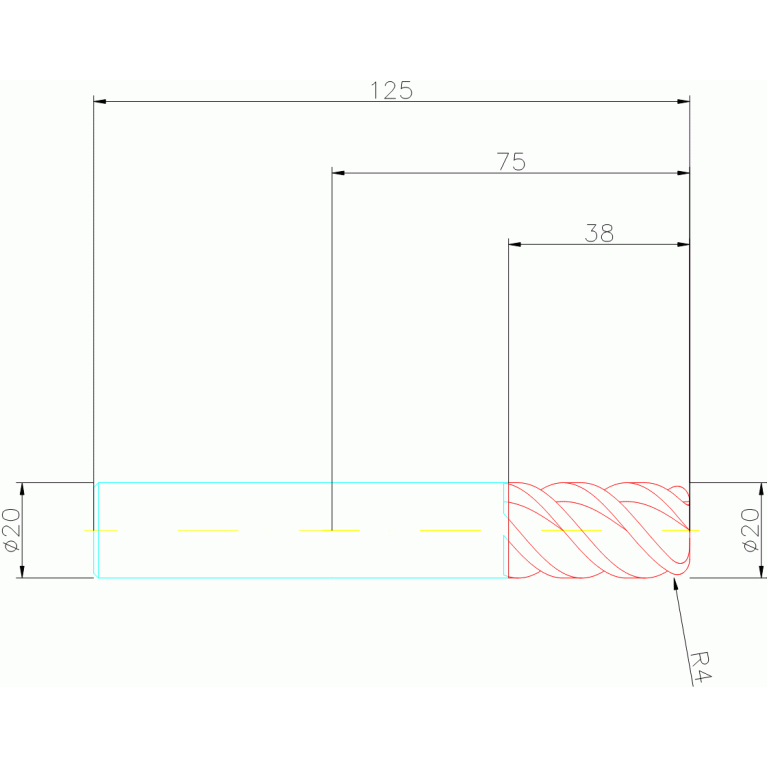

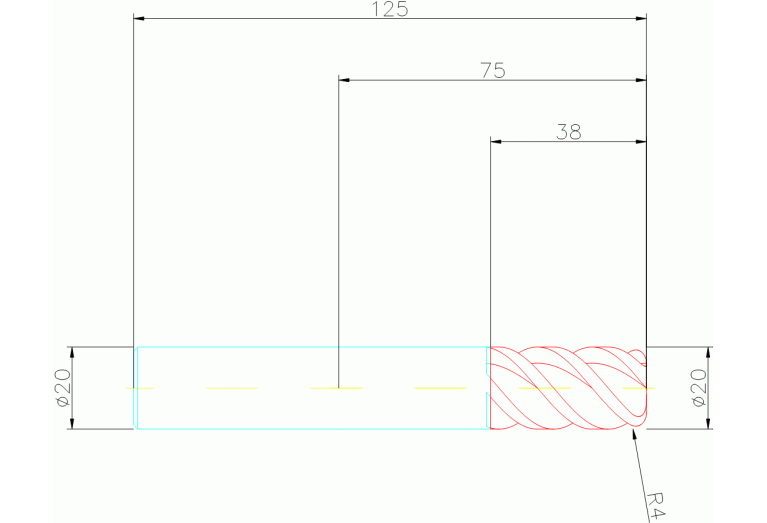

LF (Functional length)

125 mm

LOC-03 ISO

ZYL01G2000h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0200

LOC-03 (DCONMS Diameter)

20 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02000105

LPR (Protruding length)

75 mm

LS (Shank length)

50 mm

Materials

P,M,K,S

OAL (Overall length)

125 mm

RE (Corner radius)

4 mm

RMPX (Ramping angle maximum)

5 Degree

RPMX (Rotational speed maximum)

80000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FFO - Die milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling,FPR - Profile milling

WT (Weight of item)

0.526 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
