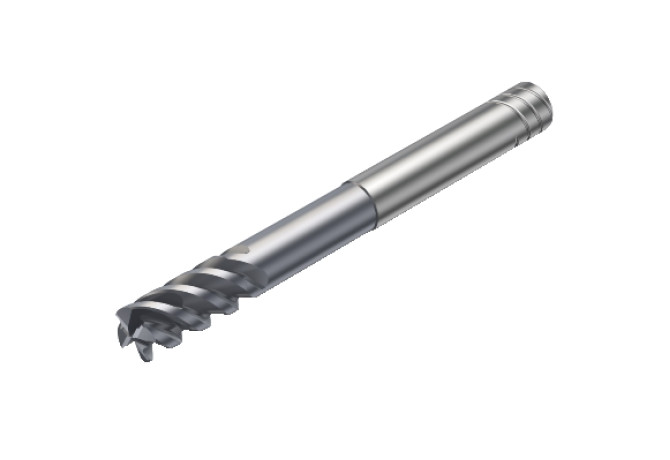

R216.24-20050FYK44P 1620
R216.24-20050FYK44P 1620
Артикул:
6153949
В наличии
0 ₽
Характеристики

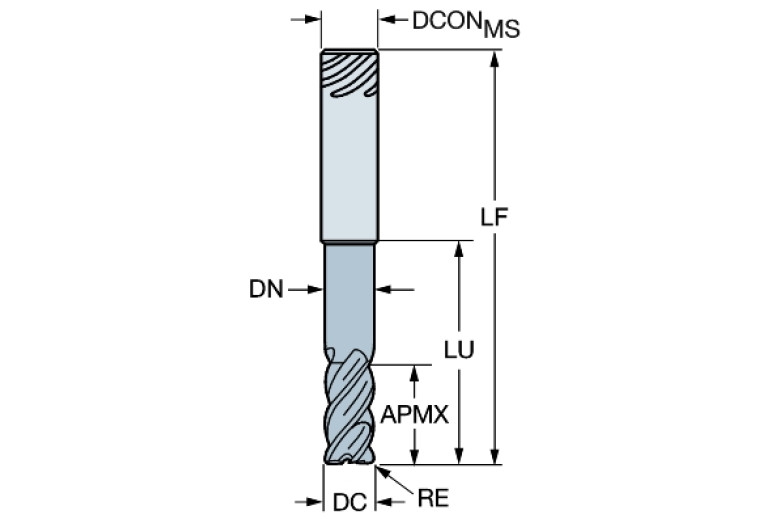

APMX (Depth of cut maximum)
44 mm
BMC (Body material code)
H - Solid carbide
CNSC (Coolant entry style code)
0 - Without coolant entry
COATN (Coating)
PVD TIALN
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DC (Cutting diameter)
20 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
ZYL02000305
DN (Neck diameter)
19 mm
F71 (Number of corner designs)
1
FHA (Flute helix angle)
50 Degree
FHH (Flute helix hand)
R - Hand of helix right
GAMF (Rake angle radial)
10.5 Degree
GAMP (Rake angle axial)
13.5 Degree
GRDMFG (Grade manufacturers designation)
1620
GRDPRIO (Standard designation of the grade main application)
HC
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL03G2000$$$$
LF (Functional length)
145 mm
LOC-03 ISO
ZYL03G2000$$$$
LOC-03 (CCFMS Connection code form)
03
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
0 Metric
LOC-03 (CZCMS Connection size code)
0200
LOC-03 (DCONMS Diameter)
20 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02000305
LPR (Protruding length)
65 mm
OAL (Overall length)
145 mm
RE (Corner radius)
2.5 mm
RMPX (Ramping angle maximum)
5 Degree
RPMX (Rotational speed maximum)
80000 1/min
TCDCONMS (ISO-tolerance class shank diameter)
h6
Working process
FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling
WT (Weight of item)
0.6 kg
ZEFF (Face effective cutting edge count)
4
ZEFP (Peripheral effective cutting edge count)
4
