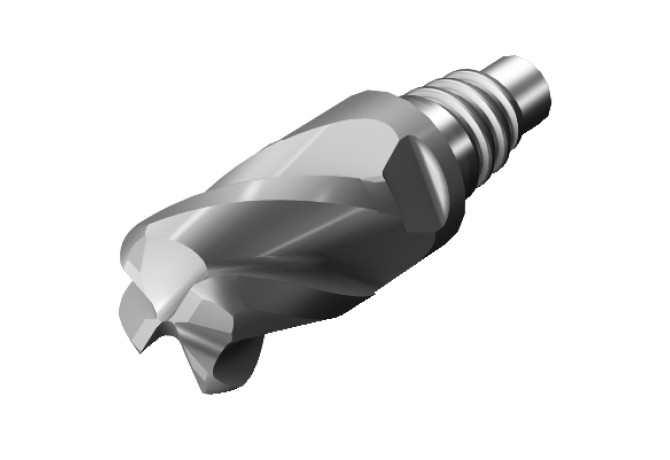

Главная Инструменты 303-02 - Centre cutting end mill A316-25SL442-10015P 1730

A316-25SL442-10015P 1730

Артикул: 6874276

В наличии

0 ₽

В корзину

Описание

Характеристики

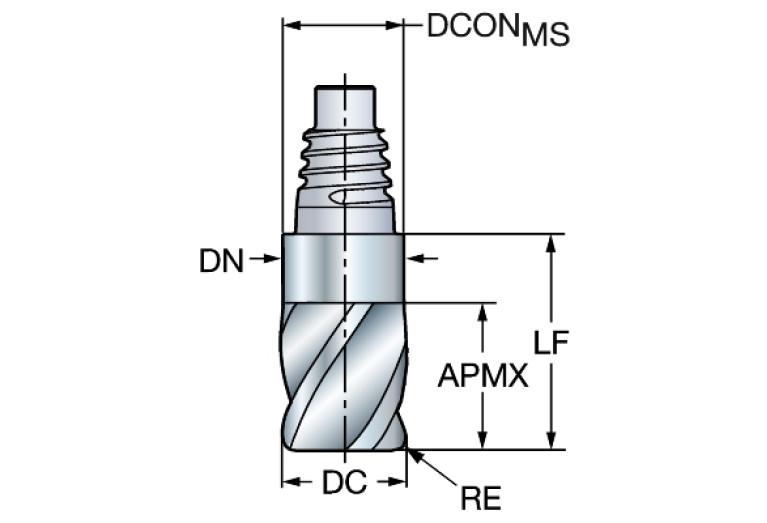

APMX (Depth of cut maximum)

30.5 mm

BMC (Body material code)

H - Solid carbide

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD AlTiN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

25.4 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SAC02500405

DN (Neck diameter)

24.5 mm

F71 (Number of corner designs)

FHA (Flute helix angle)

42 Degree

FHH (Flute helix hand)

R - Hand of helix right

GAMF (Rake angle radial)

10.5 Degree

GAMP (Rake angle axial)

10.5 Degree

GRDMFG (Grade manufacturers designation)

1730

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

SAC04B0250$$$$

LF (Functional length)

42.3 mm

LOC-03 ISO

SAC04B0250$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SAC Screw mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0250

LOC-03 (DCONMS Diameter)

24.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAC02500405

LPR (Protruding length)

42.3 mm

Materials

P,M,K,S

OAL (Overall length)

66.3 mm

RE (Corner radius)

1.524 mm

RMPX (Ramping angle maximum)

5 Degree

RPMX (Rotational speed maximum)

50000 1/min

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling

WT (Weight of item)

0.265 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
