Главная Инструменты 303-02 - Centre cutting end mill A316-20SM645-07504K 1730

A316-20SM645-07504K 1730

Артикул: 7611885

В наличии

0 ₽

В корзину

Описание

Характеристики

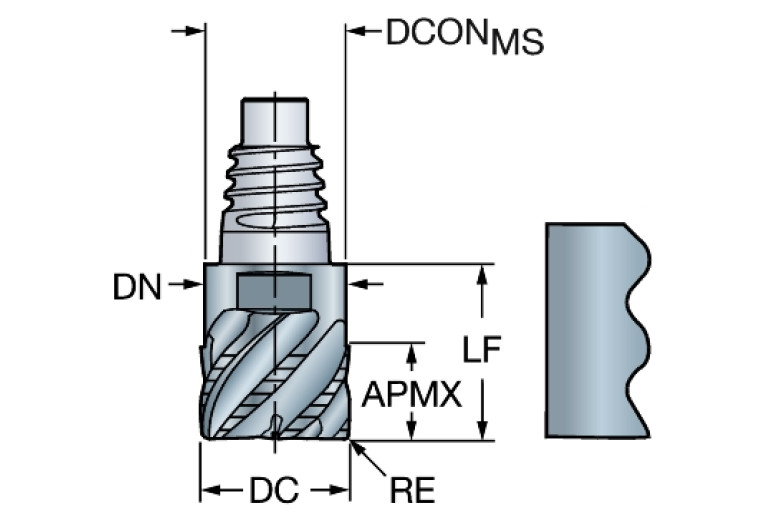

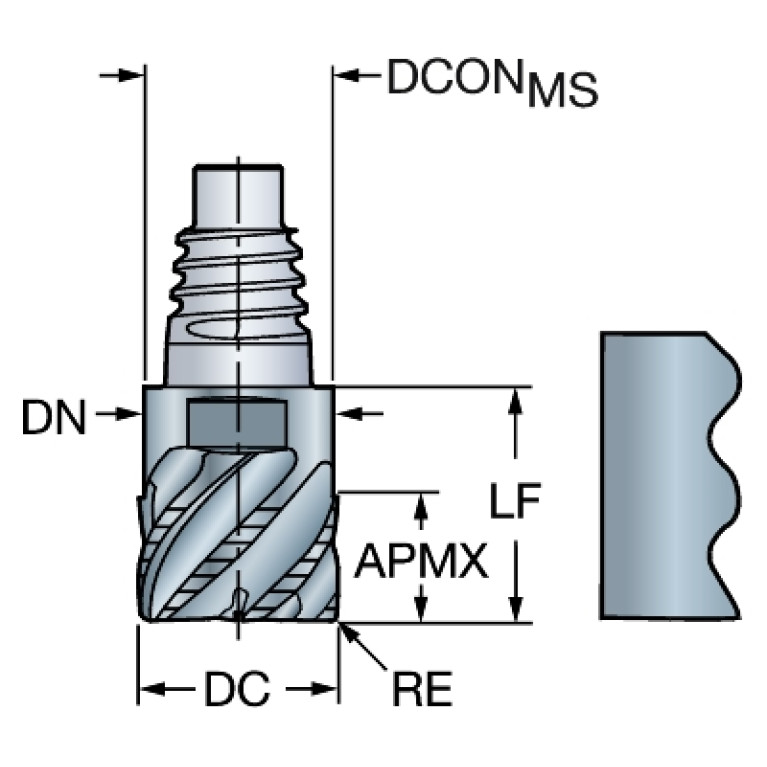

APMX (Depth of cut maximum)

10.5 mm

BMC (Body material code)

H - Solid carbide

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD AlTiN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

19.05 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SAC02000405

DN (Neck diameter)

18.5 mm

F71 (Number of corner designs)

FHA (Flute helix angle)

45 Degree

FHH (Flute helix hand)

R - Hand of helix right

GAMF (Rake angle radial)

-9 Degree

GAMP (Rake angle axial)

2 Degree

GRDMFG (Grade manufacturers designation)

1730

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

SAC04B0200$$$$

LF (Functional length)

21.3 mm

LOC-03 ISO

SAC04B0200$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SAC Screw mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0200

LOC-03 (DCONMS Diameter)

18.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAC02000405

LPR (Protruding length)

21.3 mm

Materials

P,M,K,S

OAL (Overall length)

40.8 mm

RE (Corner radius)

0.4 mm

RMPX (Ramping angle maximum)

5 Degree

RPMX (Rotational speed maximum)

80000 1/min

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling

WT (Weight of item)

0.12 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
