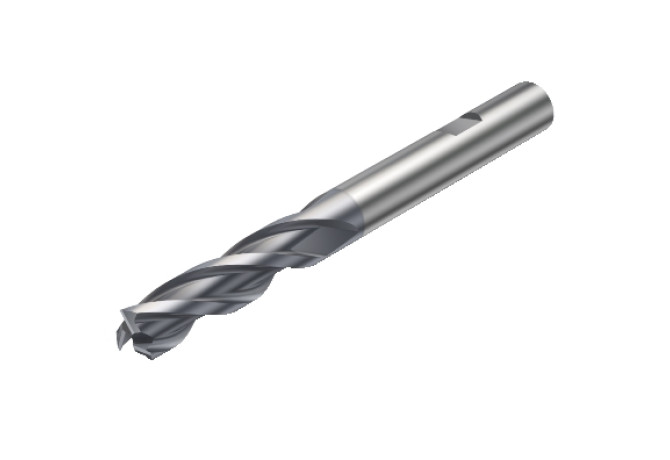

Главная Инструменты 303-02 - Centre cutting end mill 1P260-1600-XB 1620

1P260-1600-XB 1620

Артикул: 6259829

В наличии

0 ₽

В корзину

Описание

Характеристики

APMX (Depth of cut maximum)

50 mm

BMC (Body material code)

H - Solid carbide

CHW (Corner chamfer width)

0.15 mm

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD TiAlN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

16 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

ZYL01601005

F71 (Number of corner designs)

FHA (Flute helix angle)

30 Degree

FHH (Flute helix hand)

R - Hand of helix right

GAMF (Rake angle radial)

10.5 Degree

GAMP (Rake angle axial)

13.5 Degree

GRDMFG (Grade manufacturers designation)

1620

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL10G1600h$06

KCH (Corner chamfer angle)

45 Degree

LF (Functional length)

91 mm

LOC-03 ISO

ZYL10G1600h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0160

LOC-03 (DCONMS Diameter)

16 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01601005

LPR (Protruding length)

67 mm

LS (Shank length)

48 mm

Materials

P,M,K,S

OAL (Overall length)

115 mm

RPMX (Rotational speed maximum)

17800 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FPL - Face milling

WT (Weight of item)

0.273 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
