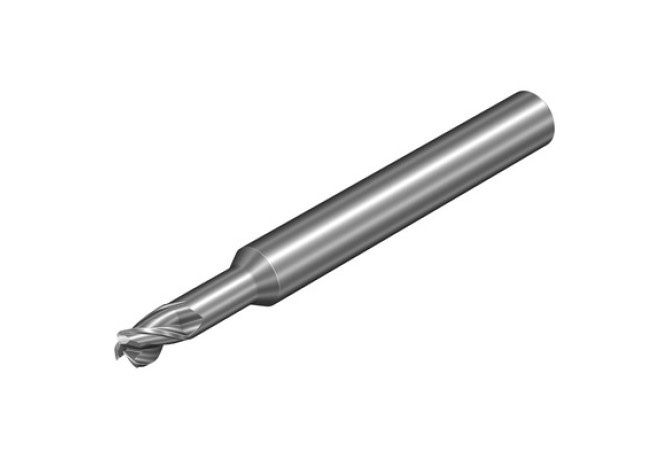

Главная Инструменты 303-02 - Centre cutting end mill 1K223-0400-100-NG H10F

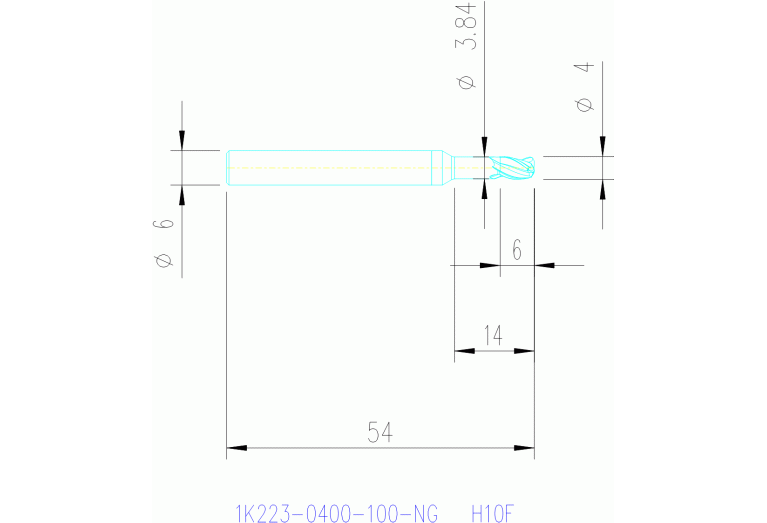

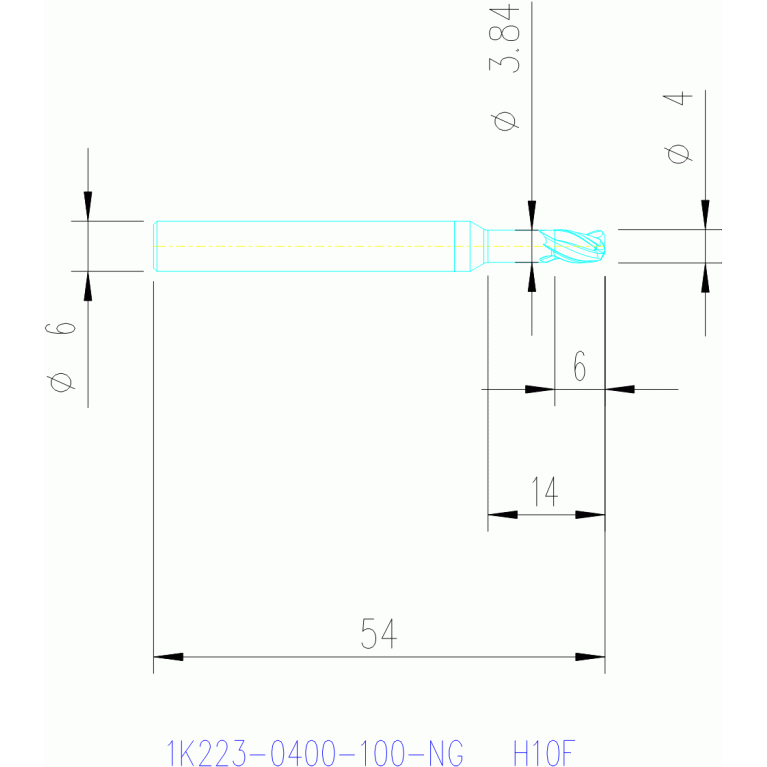

1K223-0400-100-NG H10F

Артикул: 8412595

В наличии

0 ₽

В корзину

Описание

Характеристики

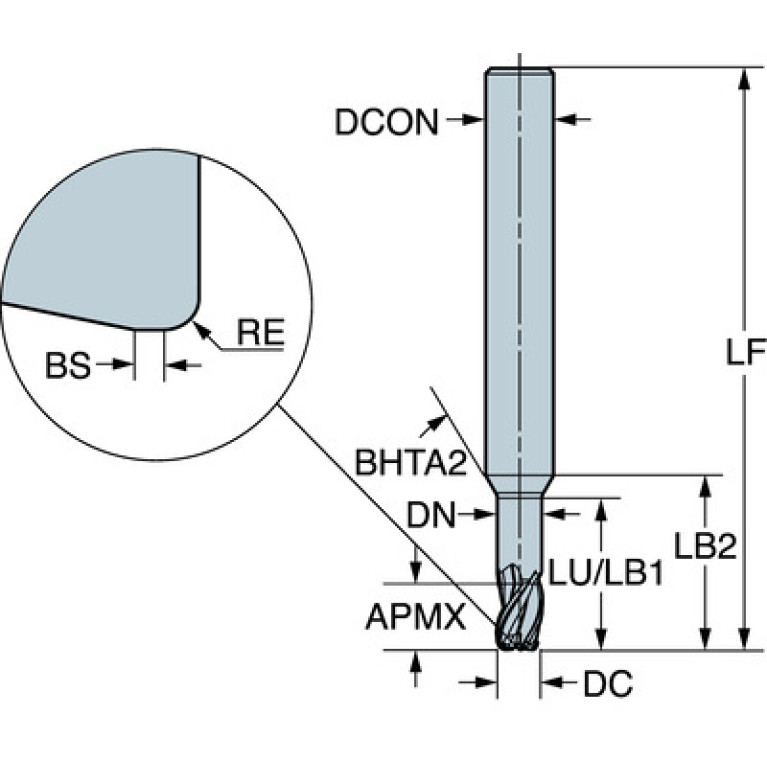

APMX (Depth of cut maximum)

6 mm

BMC (Body material code)

H - Solid carbide

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

4 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL00601005

DN (Neck diameter)

3.84 mm

F71 (Number of corner designs)

FHA (Flute helix angle)

35 Degree

FHH (Flute helix hand)

R - Hand of helix right

GAMF (Rake angle radial)

13 Degree

GAMP (Rake angle axial)

6 Degree

GRDMFG (Grade manufacturers designation)

H10F

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL10F6000h$06

LF (Functional length)

36 mm

LN (Neck length)

13.861 mm

LOC-03 ISO

ZYL10F6000h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0060

LOC-03 (DCONMS Diameter)

6 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00601005

LPR (Protruding length)

18 mm

LS (Shank length)

36 mm

Materials

OAL (Overall length)

54 mm

RE (Corner radius)

1 mm

RMPX (Ramping angle maximum)

20 Degree

RPMX (Rotational speed maximum)

80000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FFO - Die milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling,FPR - Profile milling

WT (Weight of item)

0.018 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
