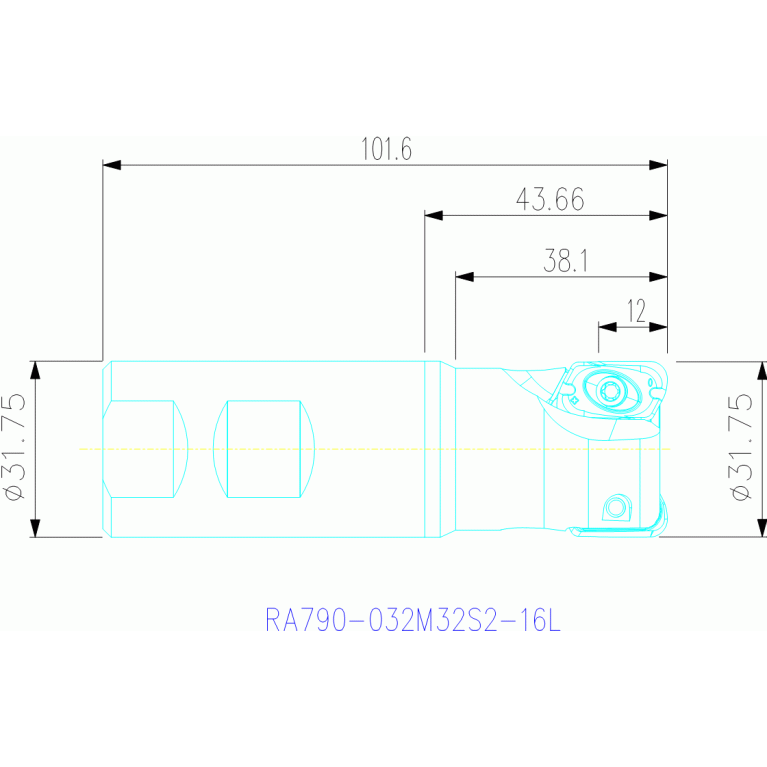

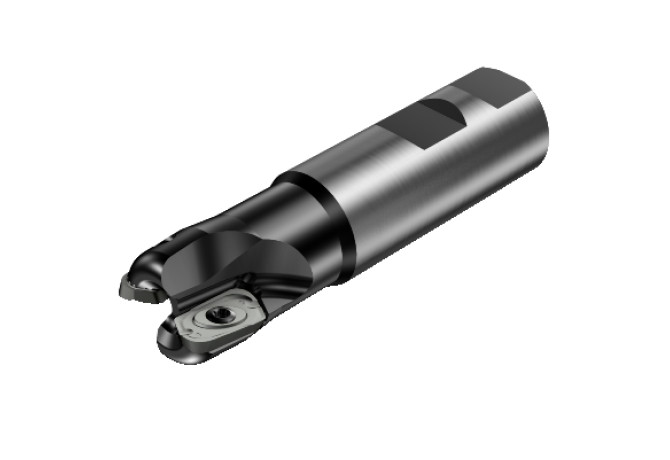

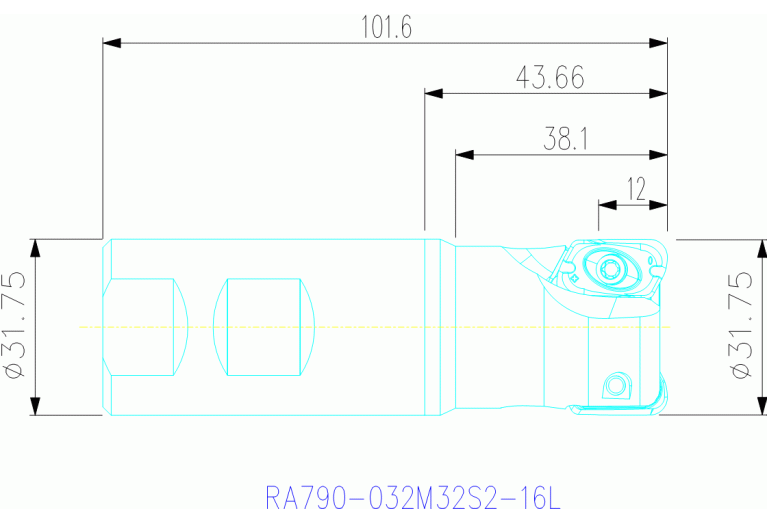

Главная Инструменты 307-01 - Non-centre cutting single row end mill RA790-032M32S2-16L

RA790-032M32S2-16L

Артикул: 5740372

В наличии

0 ₽

В корзину

Описание

Характеристики

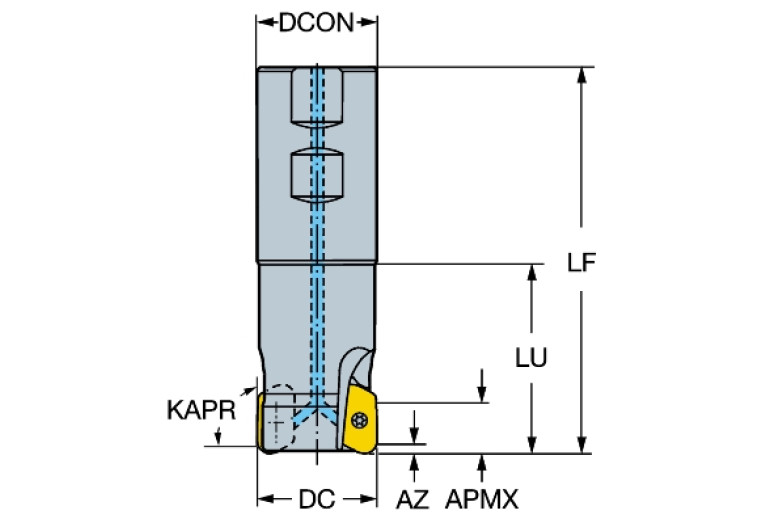

APMX (Depth of cut maximum)

12 mm

AZ (Plunge depth maximum)

2 mm

B2A (Insert width Pos. A)

11 mm

BI (Block index)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

4 mm

CCONMS (Connection count machine side)

CICT (Cutting item count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DC (Cutting diameter)

31.75 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL12501035

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

GAMF (Rake angle radial)

11 Degree

GAMP (Rake angle axial)

1 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL10S1250h$06

KAPR (Tool cutting edge angle)

90 Degree

LOC-03 ISO

ZYL10S1250h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

1250

LOC-03 (DCONMS Diameter)

31.75 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL12501035

LPR (Protruding length)

43.66 mm

LU (Usable length)

38.1 mm

MIID (Master insert identification)

R790-1604..

OAL (Overall length)

101.6 mm

RMPX (Ramping angle maximum)

13 Degree

RPMX (Rotational speed maximum)

49900 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling

WT (Weight of item)

0.515 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
