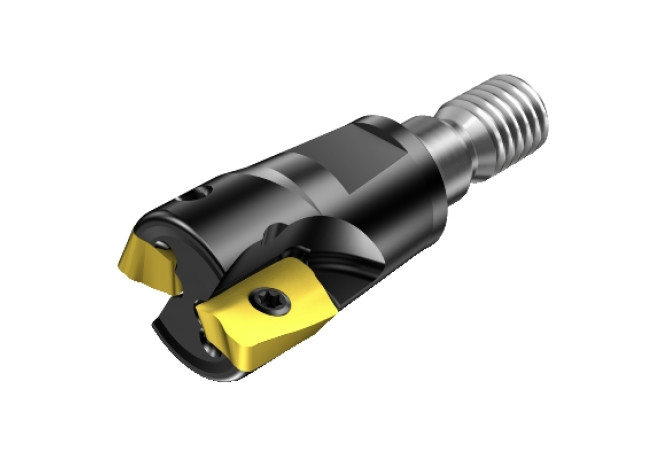

Главная Инструменты 307-01 - Non-centre cutting single row end mill RA390-25T12-11M

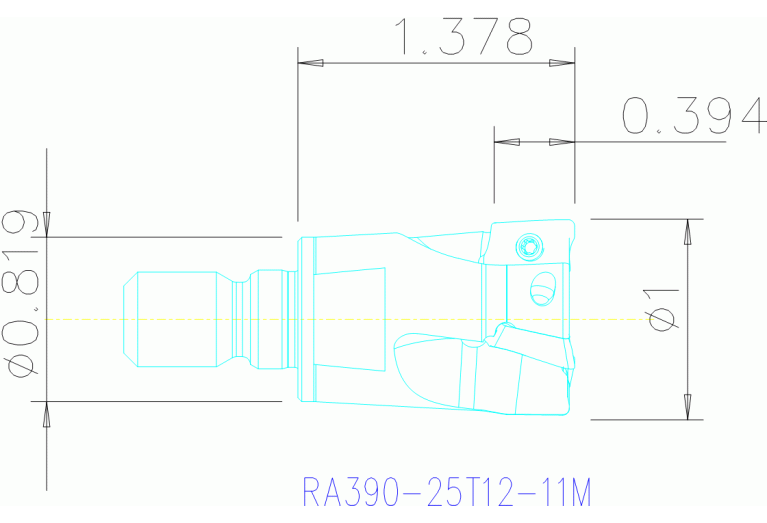

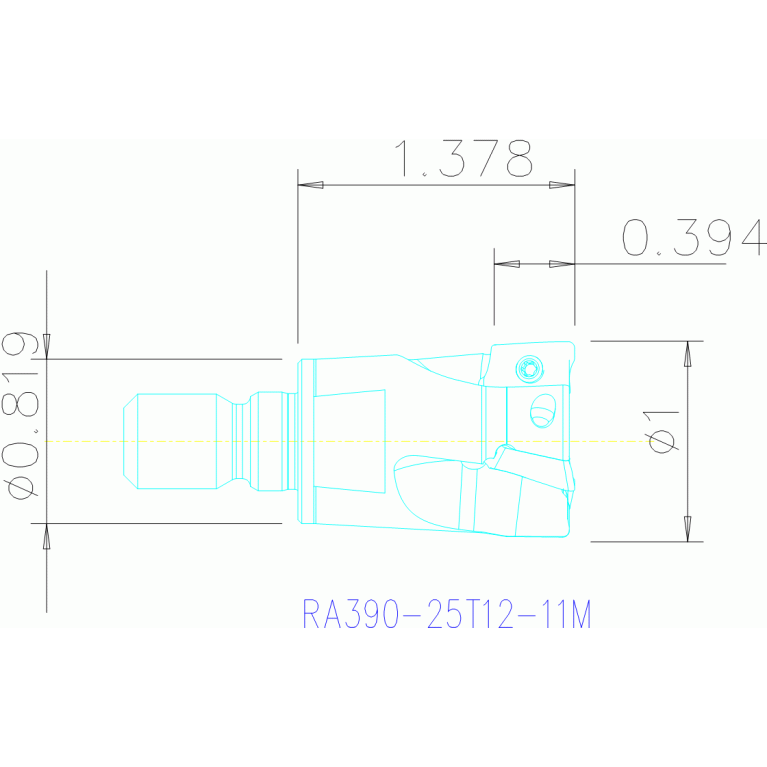

RA390-25T12-11M

Артикул: 5740327

В наличии

0 ₽

В корзину

Описание

Характеристики

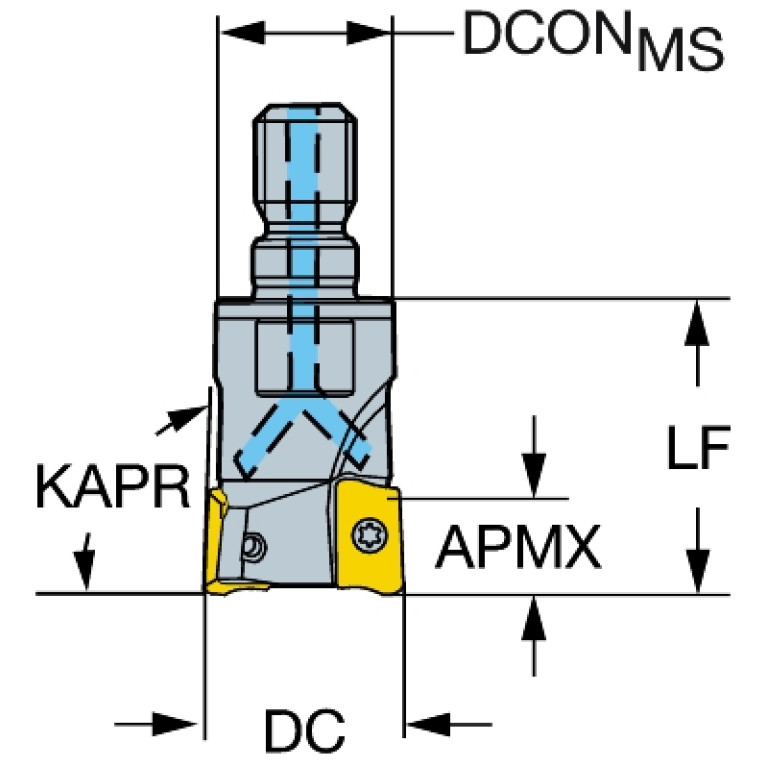

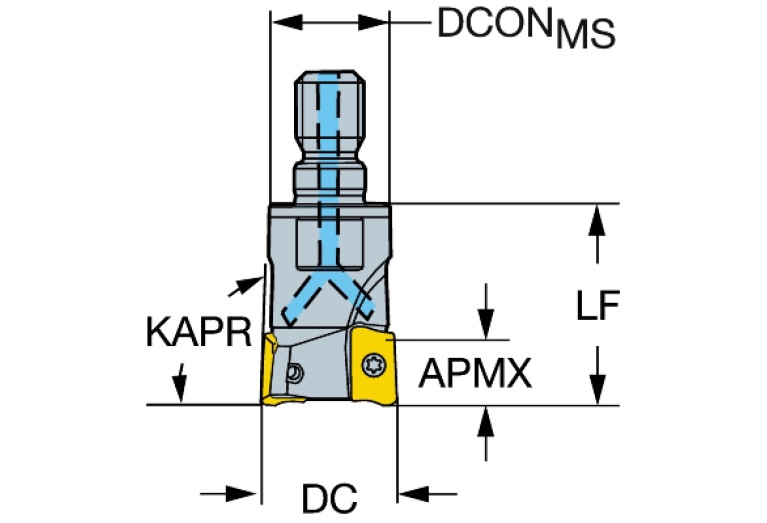

A2A (Clearance angle major Pos. A)

21 Degree

APMX (Depth of cut maximum)

10 mm

AZ (Plunge depth maximum)

1 mm

B1A (Cutting edge length Pos. A)

11.45 mm

B2A (Insert width Pos. A)

6.8 mm

B3A (Inscribed circle diameter Pos. A)

6.8 mm

BI (Block index)

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

3.59 mm

CCONMS (Connection count machine side)

CICT (Cutting item count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

DC (Cutting diameter)

25.4 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SAC01200315

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

GAMF (Rake angle radial)

17.06 Degree

GAMP (Rake angle axial)

-8.671 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

SAC03A0120$$$$

KAPR (Tool cutting edge angle)

90 Degree

LOC-03 ISO

SAC03A0120$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SAC Screw mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0120

LOC-03 (DCONMS Diameter)

20.8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAC01200315

LPR (Protruding length)

35.001 mm

LS (Shank length)

22 mm

MIID (Master insert identification)

R390-11..

OAL (Overall length)

57.001 mm

RMPX (Ramping angle maximum)

4.9 Degree

RPMX (Rotational speed maximum)

8100 1/min

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling

WT (Weight of item)

0.088 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
