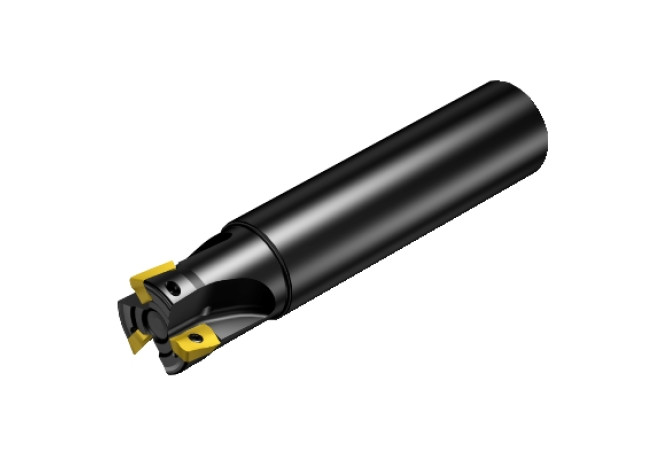

Главная Инструменты 307-01 - Non-centre cutting single row end mill RA390-038O32L-17L

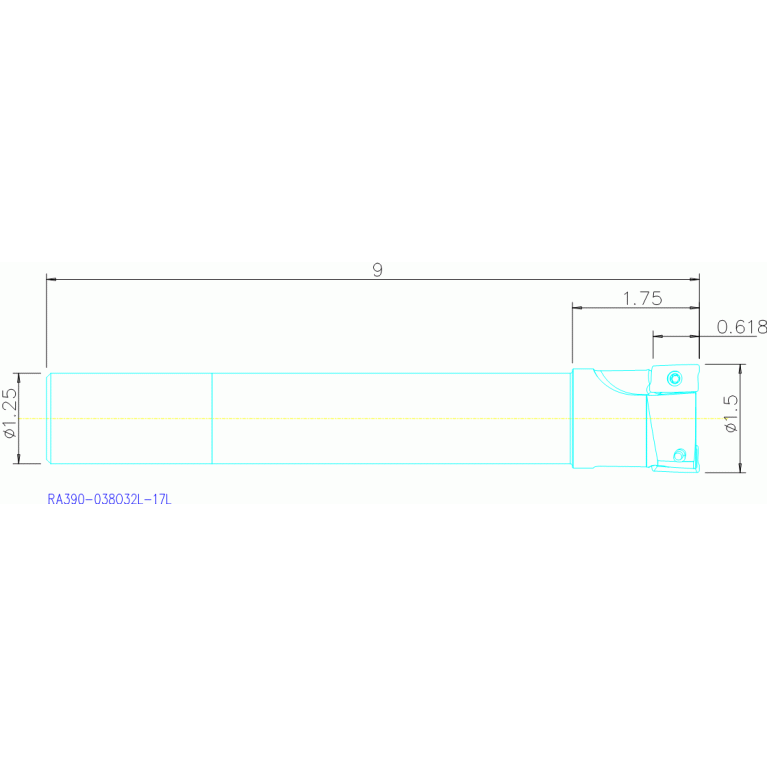

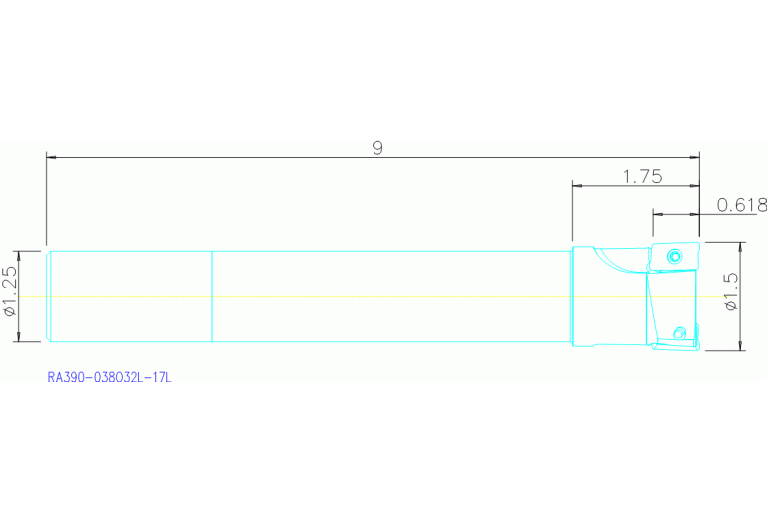

RA390-038O32L-17L

RA390-038O32L-17L RA390-038O32L-17L RA390-038O32L-17L RA390-038O32L-17L

RA390-038O32L-17L

SV - Sandvik-Coromant
Артикул: 5740098
В наличии
0 ₽
В корзину
Описание
Характеристики

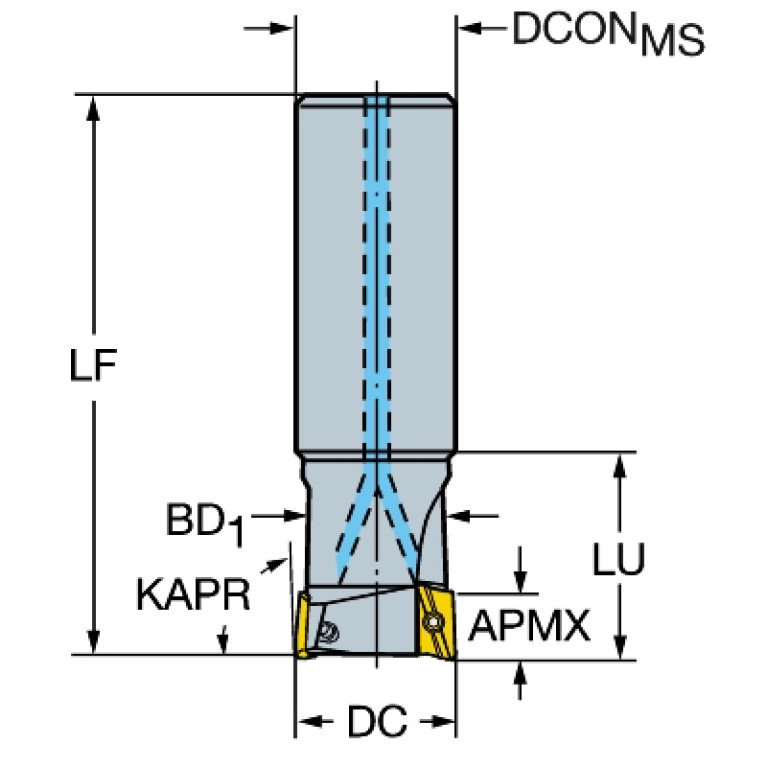

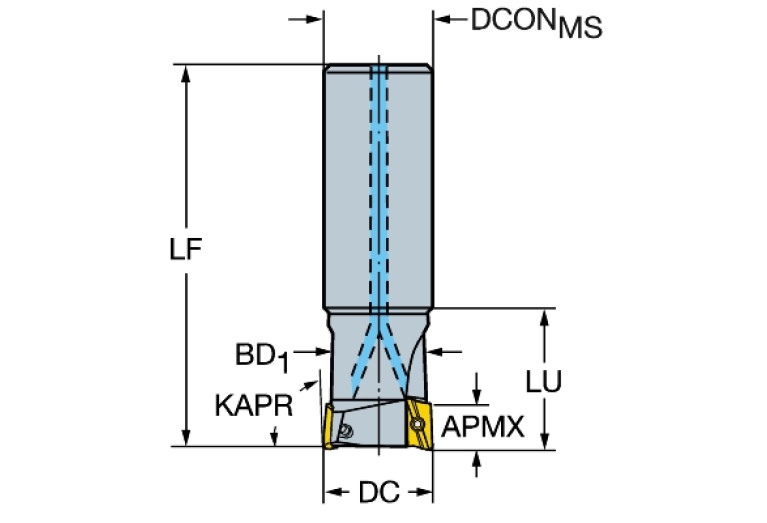

A2A (Clearance angle major Pos. A)
19 Degree
APMX (Depth of cut maximum)
15.697 mm
AZ (Plunge depth maximum)
1.5 mm
B1A (Cutting edge length Pos. A)
17.45 mm
B2A (Insert width Pos. A)
9.6 mm
B3A (Inscribed circle diameter Pos. A)
9.6 mm
BI (Block index)
1
BLDA (Tool style code Position A)
4
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
4.762 mm
CCONMS (Connection count machine side)
2
CICT (Cutting item count)
2
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DC (Cutting diameter)
38.1 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
ZYL12500135
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
2
GAMF (Rake angle radial)
14.76 Degree
GAMP (Rake angle axial)
-5.382 Degree
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL01S1250$$$$
KAPR (Tool cutting edge angle)
90 Degree
LF (Functional length)
228.6 mm
LOC-03 ISO
ZYL01S1250$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
1250
LOC-03 (DCONMS Diameter)
31.75 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL12500135
LPR (Protruding length)
170.66 mm
LS (Shank length)
179.15 mm
MIID (Master insert identification)
R390-17..
OAL (Overall length)
228.6 mm
RMPX (Ramping angle maximum)
4.1 Degree
RPMX (Rotational speed maximum)
9000 1/min
Working process
FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling
WT (Weight of item)
1.345 kg
ZEFF (Face effective cutting edge count)
2
ZEFP (Peripheral effective cutting edge count)
2
