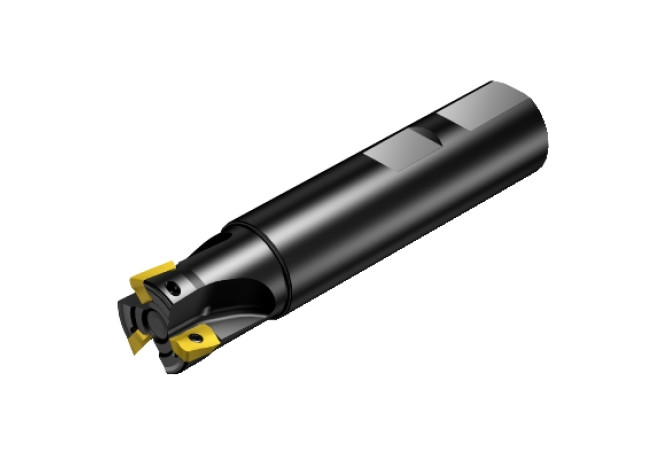

Главная Инструменты 307-01 - Non-centre cutting single row end mill RA390-025M25-17L

RA390-025M25-17L

Артикул: 5739318

В наличии

0 ₽

В корзину

Описание

Характеристики

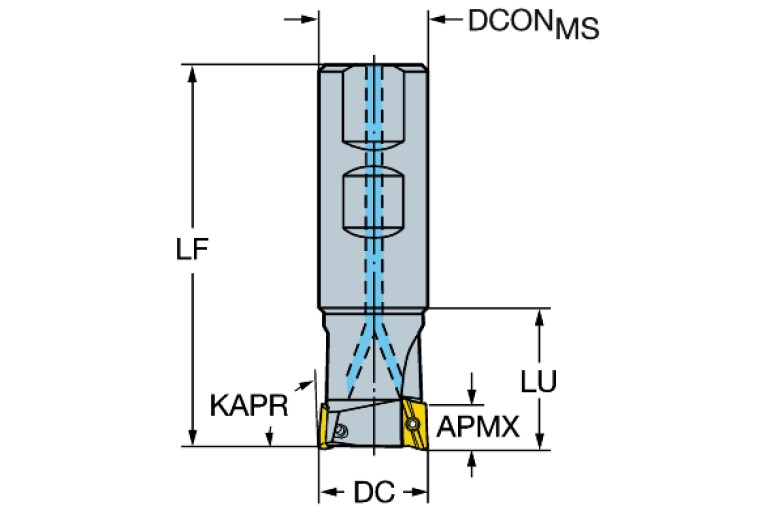

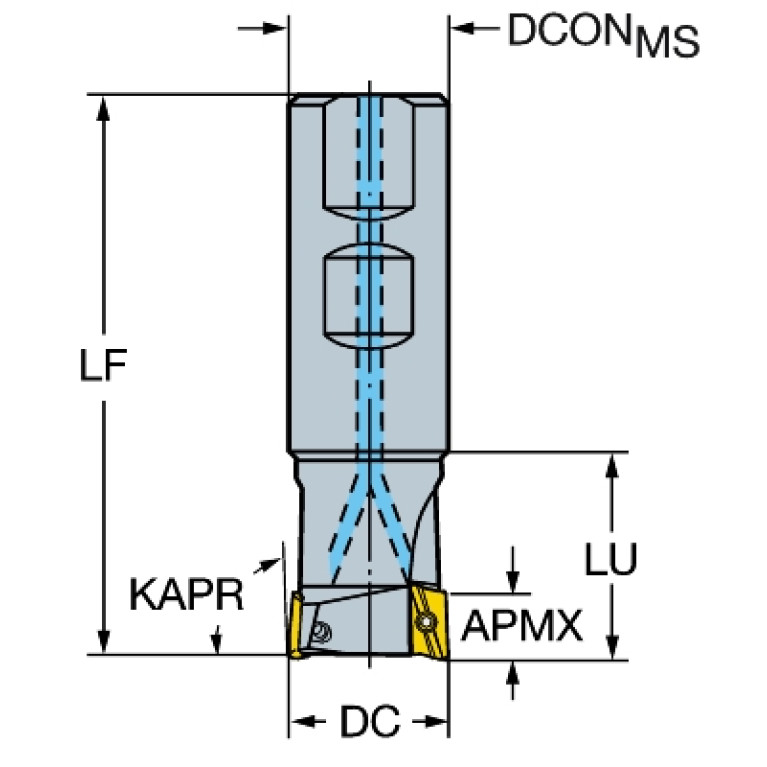

A2A (Clearance angle major Pos. A)

19 Degree

APMX (Depth of cut maximum)

15.697 mm

AZ (Plunge depth maximum)

1.5 mm

B1A (Cutting edge length Pos. A)

17.45 mm

B2A (Insert width Pos. A)

9.6 mm

B3A (Inscribed circle diameter Pos. A)

9.6 mm

BI (Block index)

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

4.762 mm

CCONMS (Connection count machine side)

CICT (Cutting item count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DC (Cutting diameter)

25.4 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL10001035

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

GAMF (Rake angle radial)

11.7 Degree

GAMP (Rake angle axial)

-6.461 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL10S1000h$06

KAPR (Tool cutting edge angle)

90 Degree

LOC-03 ISO

ZYL10S1000h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

1000

LOC-03 (DCONMS Diameter)

25.4 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL10001035

LPR (Protruding length)

43.685 mm

LU (Usable length)

38.1 mm

MIID (Master insert identification)

R390-17..

OAL (Overall length)

101.625 mm

RMPX (Ramping angle maximum)

14 Degree

RPMX (Rotational speed maximum)

30500 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling

WT (Weight of item)

0.318 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
