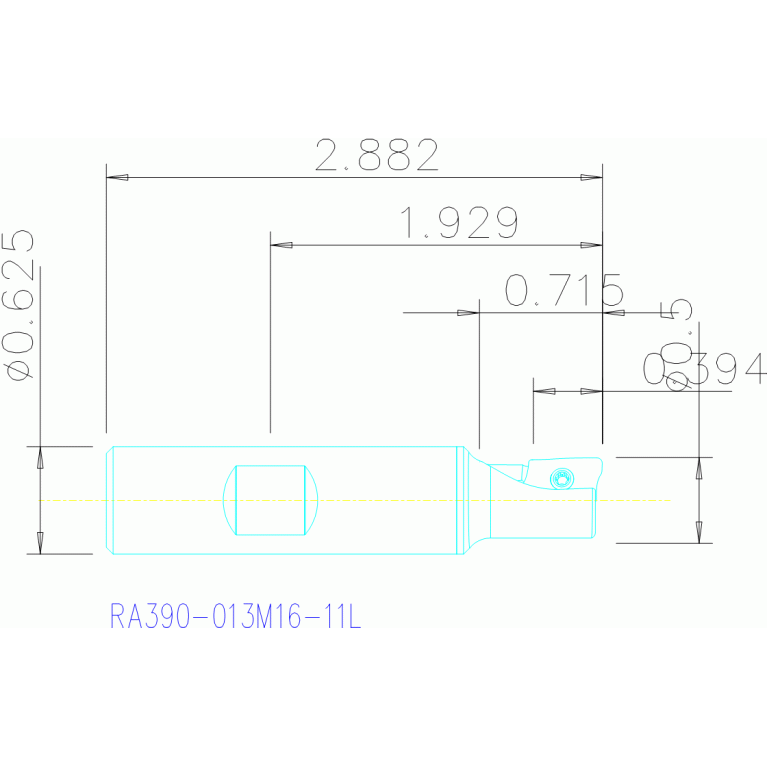

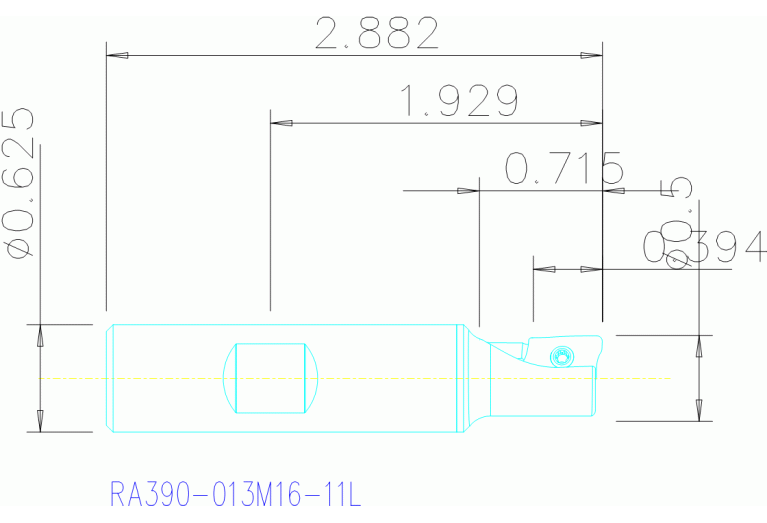

RA390-013M16-11L
RA390-013M16-11L
Артикул:
5739424
В наличии
0 ₽
Характеристики

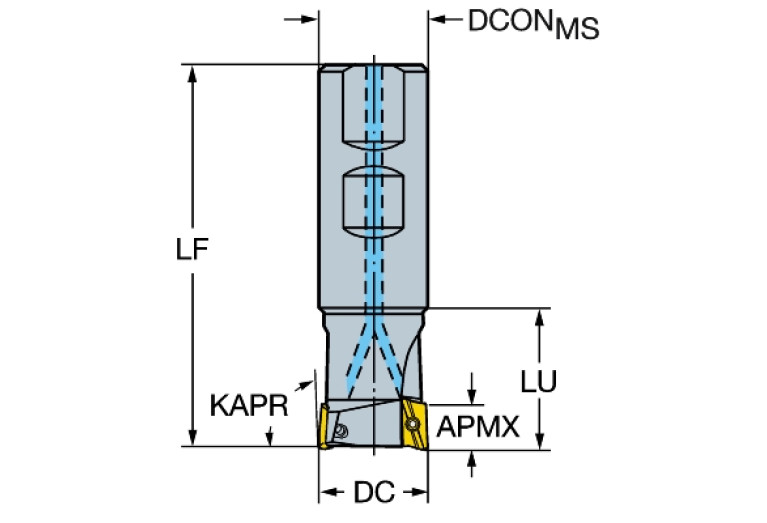

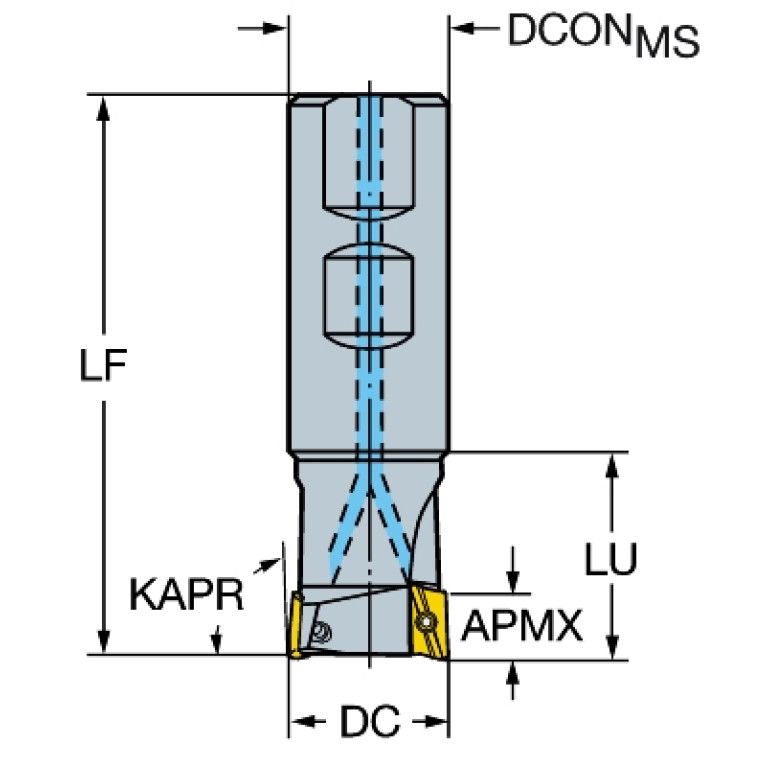

A2A (Clearance angle major Pos. A)
21 Degree
APMX (Depth of cut maximum)
10.008 mm
AZ (Plunge depth maximum)
1 mm
B1A (Cutting edge length Pos. A)
11.45 mm
B2A (Insert width Pos. A)
6.8 mm
B3A (Inscribed circle diameter Pos. A)
6.8 mm
BI (Block index)
1
BLDA (Tool style code Position A)
4
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
3.59 mm
CCONMS (Connection count machine side)
2
CICT (Cutting item count)
1
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DC (Cutting diameter)
12.7 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL06251035
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
1
GAMF (Rake angle radial)
11.99 Degree
GAMP (Rake angle axial)
-11.772 Degree
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL10R6250h$06
KAPR (Tool cutting edge angle)
90 Degree
LOC-03 ISO
ZYL10R6250h$06
LOC-03 (CCFMS Connection code form)
10
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
0625
LOC-03 (DCONMS Diameter)
15.875 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL06251035
LPR (Protruding length)
20.503 mm
LU (Usable length)
18.161 mm
MIID (Master insert identification)
R390-11..
OAL (Overall length)
73.203 mm
RMPX (Ramping angle maximum)
5 Degree
RPMX (Rotational speed maximum)
64400 1/min
TCDCONMS (ISO-tolerance class shank diameter)
h6
Working process
FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling
WT (Weight of item)
0.087 kg
ZEFF (Face effective cutting edge count)
1
ZEFP (Peripheral effective cutting edge count)
1
