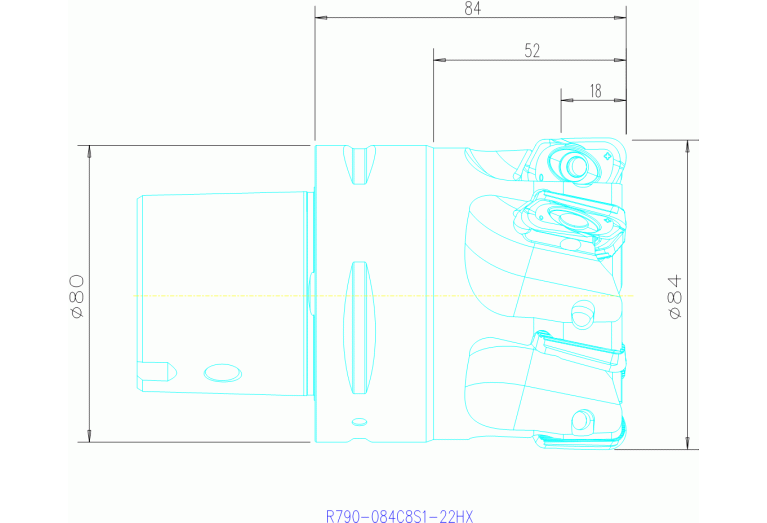

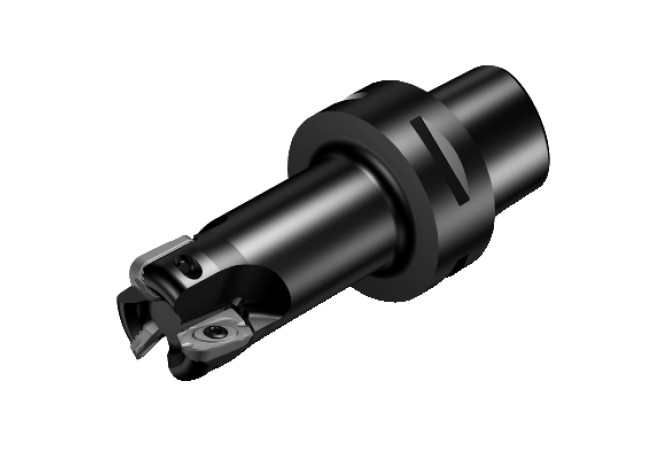

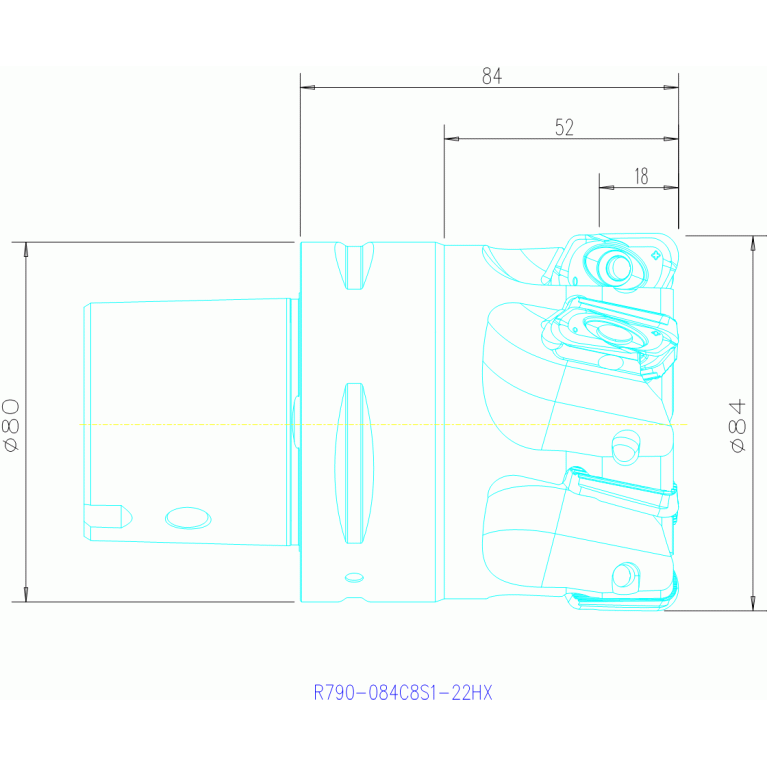

R790-084C8S1-22HX
R790-084C8S1-22HX
Артикул:
5912567
В наличии
0 ₽
Характеристики

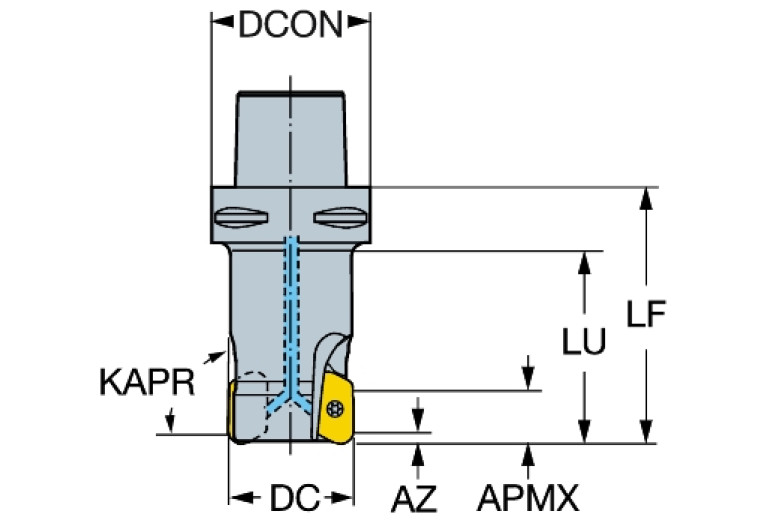

APMX (Depth of cut maximum)
18 mm
AZ (Plunge depth maximum)
0 mm
B2A (Insert width Pos. A)
16 mm
BI (Block index)
1
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
5 mm
CCONMS (Connection count machine side)
2
CICT (Cutting item count)
6
CNSC (Coolant entry style code)
3 - With Coolant entry, axial concentric and radial
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DC (Cutting diameter)
84 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
CCS08000195
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
6
GAMF (Rake angle radial)
13 Degree
GAMP (Rake angle axial)
7 Degree
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
CCS01C0800$$$$
KAPR (Tool cutting edge angle)
90 Degree
LF (Functional length)
84 mm
LOC-03 ISO
CCS01C0800$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0800
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS08000195
LPR (Protruding length)
84 mm
MIID (Master insert identification)
R790-2205..
OAL (Overall length)
132 mm
RMPX (Ramping angle maximum)
5 Degree
RPMX (Rotational speed maximum)
14000 1/min
Working process
FEC - Square shoulder milling,FPL - Face milling
WT (Weight of item)
3.055 kg
ZEFF (Face effective cutting edge count)
6
ZEFP (Peripheral effective cutting edge count)
6
