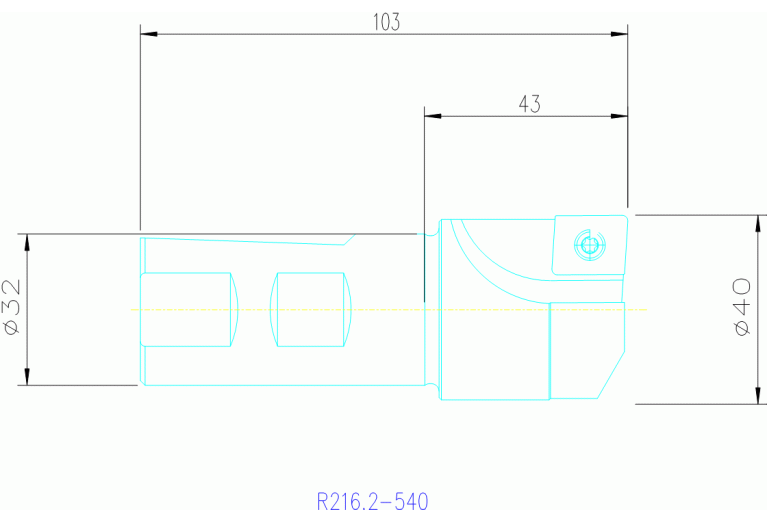

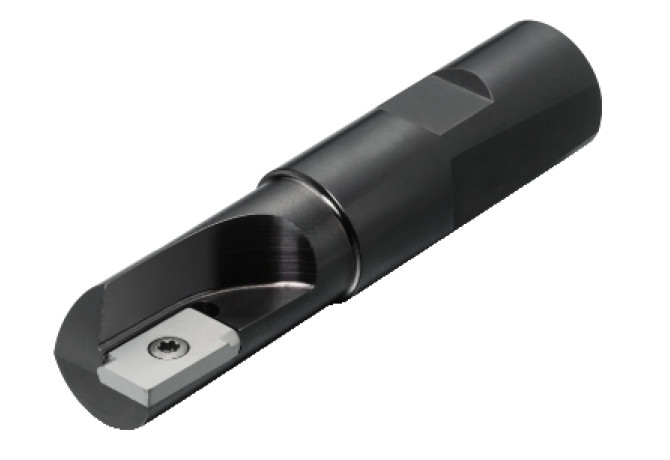

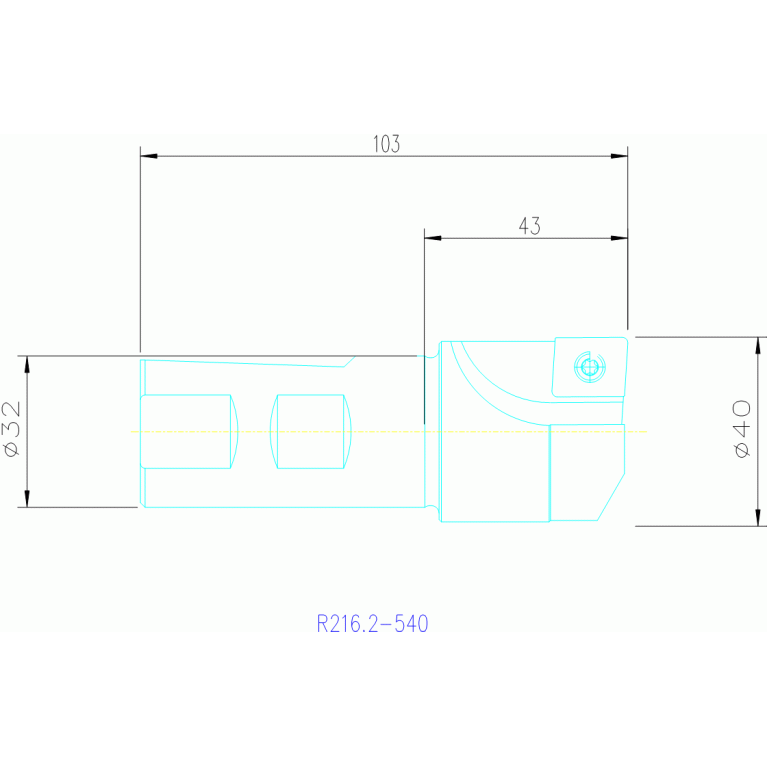

Главная Инструменты 307-01 - Non-centre cutting single row end mill R216.2-540

R216.2-540

Артикул: 5743036

В наличии

0 ₽

В корзину

Описание

Характеристики

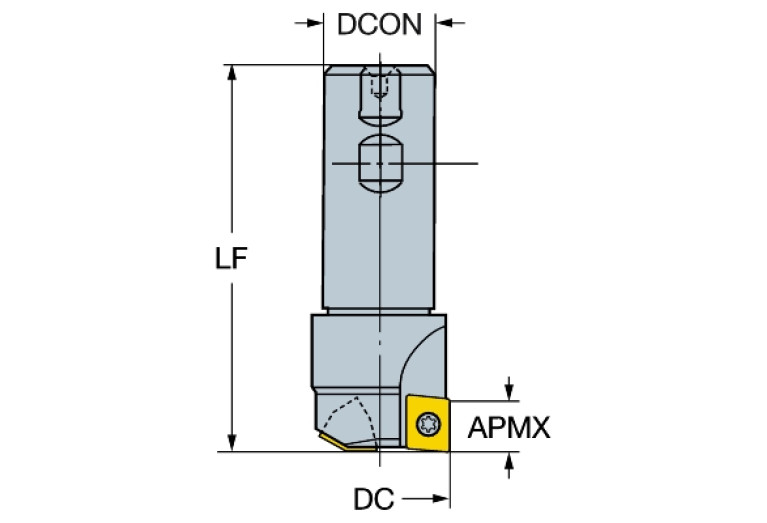

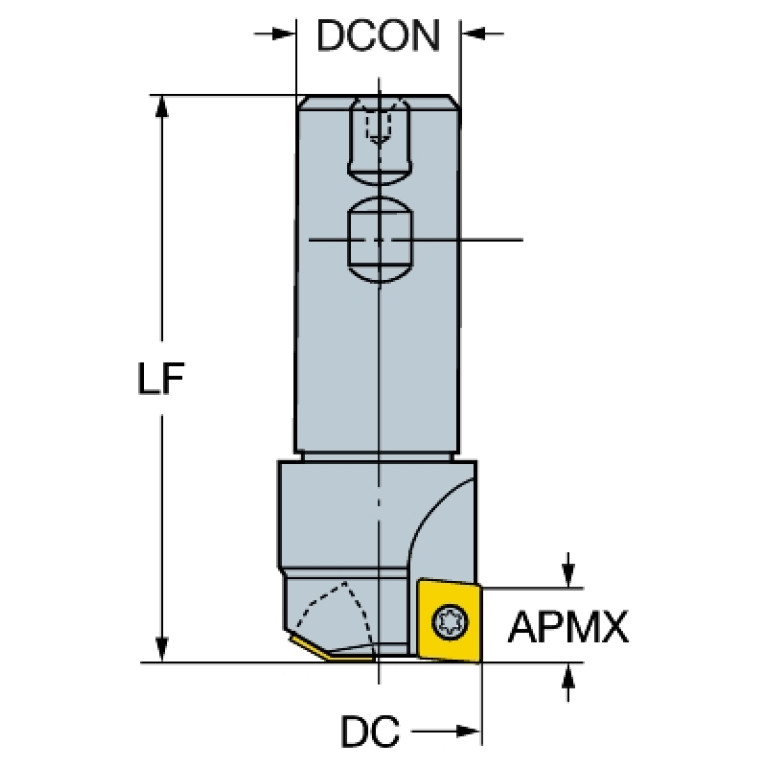

A1A (Cutting edge angle major Pos. A)

86 Degree

APMX (Depth of cut maximum)

15 mm

AZ (Plunge depth maximum)

15 mm

B2A (Insert width Pos. A)

4.6 mm

B3A (Inscribed circle diameter Pos. A)

13 mm

BI (Block index)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

3.969 mm

CCONMS (Connection count machine side)

CICT (Cutting item count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

40 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

ZYL03201805

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

GAMF (Rake angle radial)

3 Degree

GAMP (Rake angle axial)

-4 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL18G3200h$06

KAPR (Tool cutting edge angle)

90 Degree

LOC-03 ISO

ZYL18G3200h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0320

LOC-03 (DCONMS Diameter)

32 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201805

LPR (Protruding length)

43 mm

LS (Shank length)

60 mm

MIID (Master insert identification)

R216.2-15T312-2

OAL (Overall length)

103 mm

RMPX (Ramping angle maximum)

90 Degree

RPMX (Rotational speed maximum)

8460 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling

WT (Weight of item)

0.732 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
