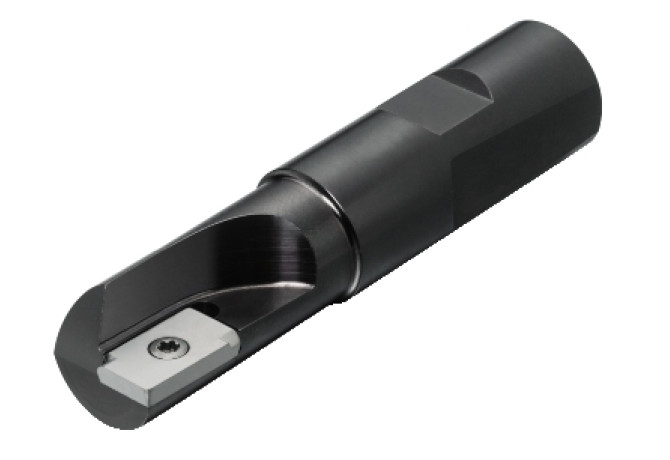

Главная Инструменты 307-01 - Non-centre cutting single row end mill R216.2-316

R216.2-316

Артикул: 5742806

В наличии

0 ₽

В корзину

Описание

Характеристики

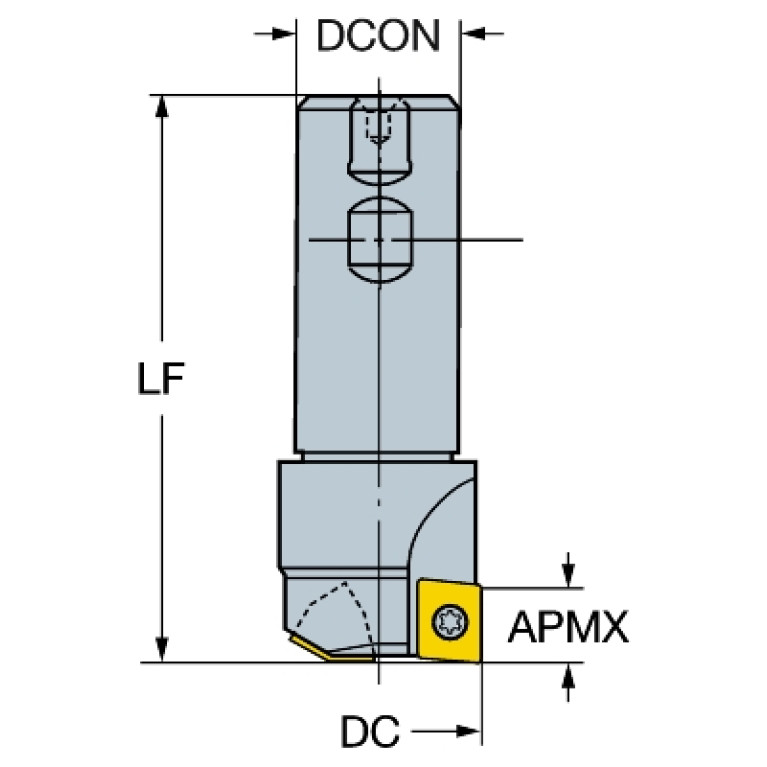

A1A (Cutting edge angle major Pos. A)

88 Degree

APMX (Depth of cut maximum)

10 mm

AZ (Plunge depth maximum)

10 mm

B2A (Insert width Pos. A)

8.3 mm

BI (Block index)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

2.381 mm

CCONMS (Connection count machine side)

CICT (Cutting item count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

15.875 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL06251025

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

GAMF (Rake angle radial)

2 Degree

GAMP (Rake angle axial)

-4 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL10R6250h$06

KAPR (Tool cutting edge angle)

90 Degree

LOC-03 ISO

ZYL10R6250h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

0625

LOC-03 (DCONMS Diameter)

15.875 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL06251025

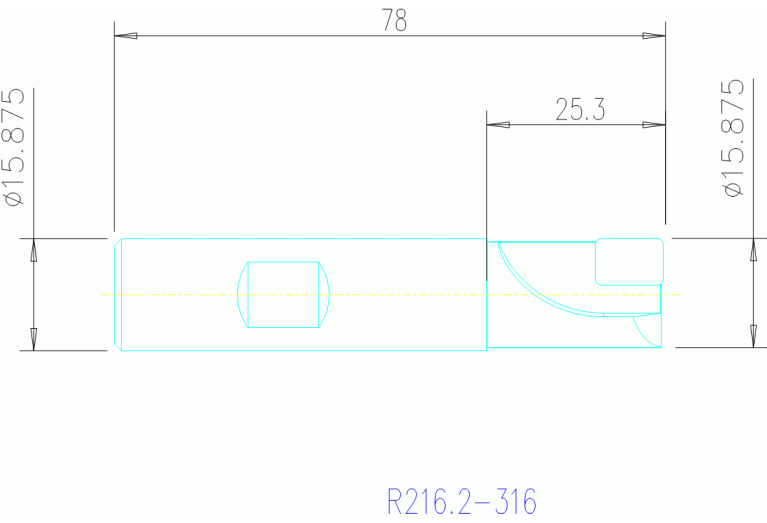

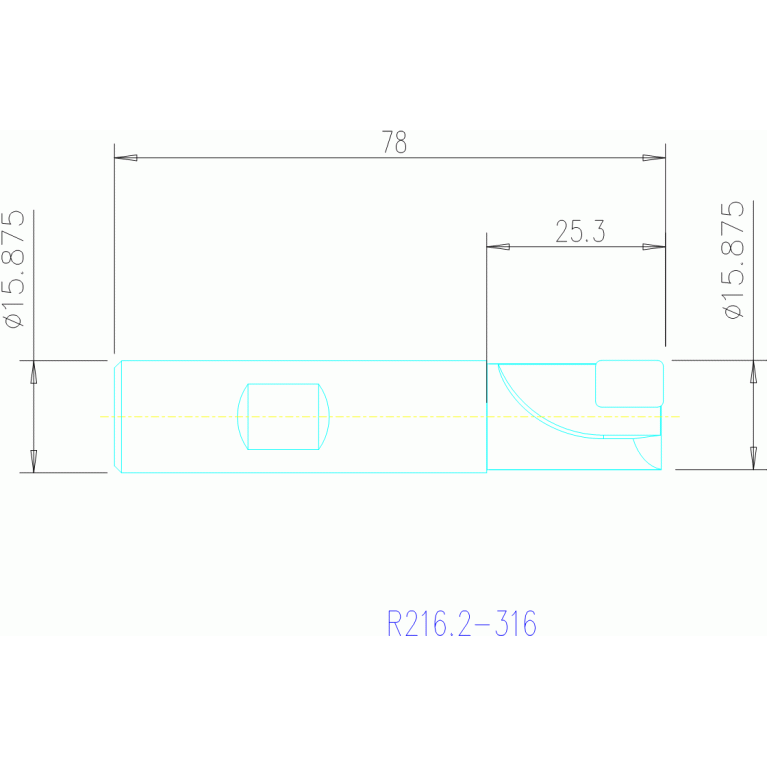

LPR (Protruding length)

25.3 mm

MIID (Master insert identification)

R216.2-100204

OAL (Overall length)

78 mm

RMPX (Ramping angle maximum)

90 Degree

RPMX (Rotational speed maximum)

18900 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling

WT (Weight of item)

0.211 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
