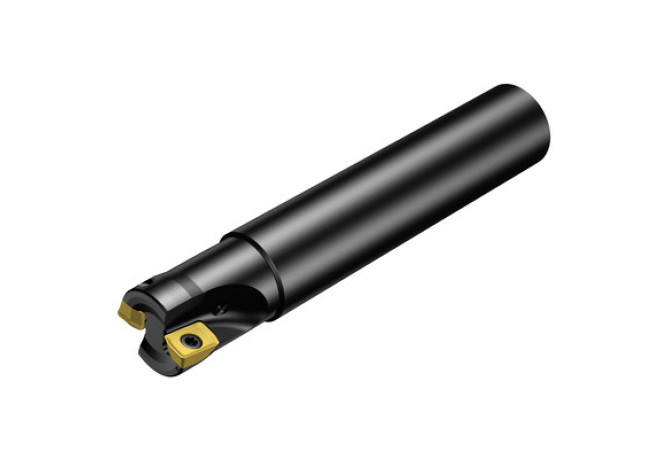

Главная Инструменты 307-01 - Non-centre cutting single row end mill MS20-R040A32L-10L

MS20-R040A32L-10L

Артикул: 8068146

В наличии

0 ₽

В корзину

Описание

Характеристики

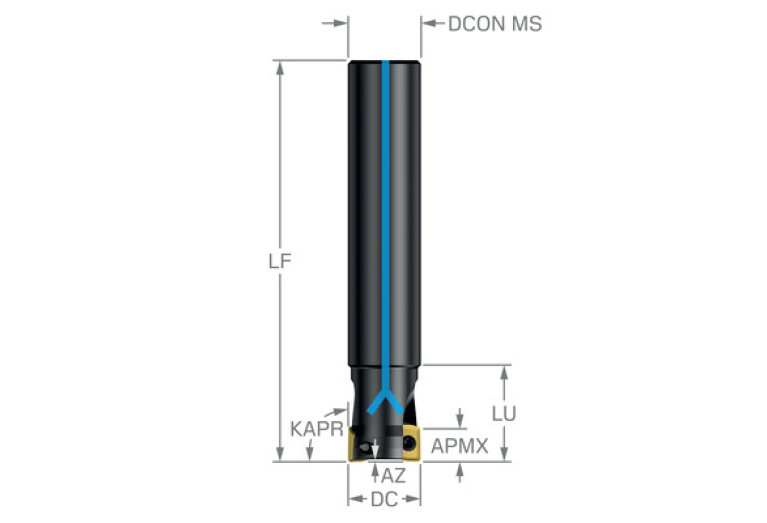

A2A (Clearance angle major Pos. A)

19 Degree

APMX (Depth of cut maximum)

9 mm

AZ (Plunge depth maximum)

1 mm

B1A (Cutting edge length Pos. A)

9.7 mm

B2A (Insert width Pos. A)

6.7 mm

B3A (Inscribed circle diameter Pos. A)

6.7 mm

BD (Body diameter)

38.5 mm

BI (Block index)

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

3.6 mm

CCONMS (Connection count machine side)

CICT (Cutting item count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DC (Cutting diameter)

40 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2024

DIN

ZYL03200115

DN (Neck diameter)

37.5 mm

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

GAMF (Rake angle radial)

10 Degree

GAMP (Rake angle axial)

-10.7 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01G3200h$07

KAPR (Tool cutting edge angle)

90 Degree

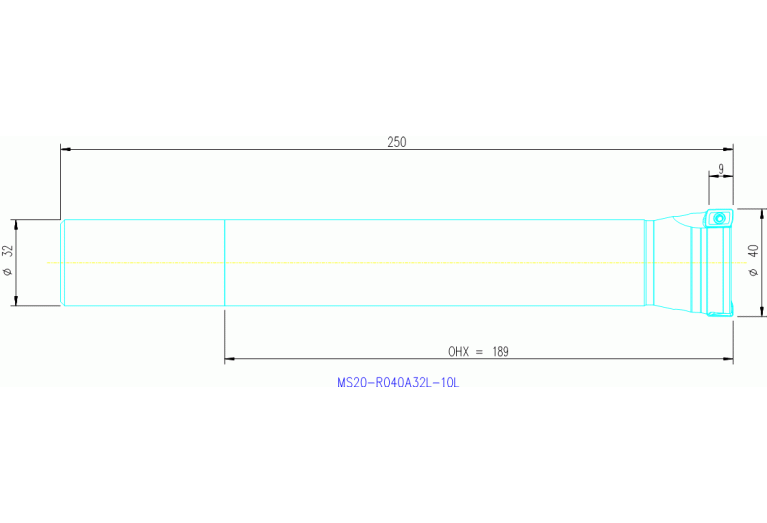

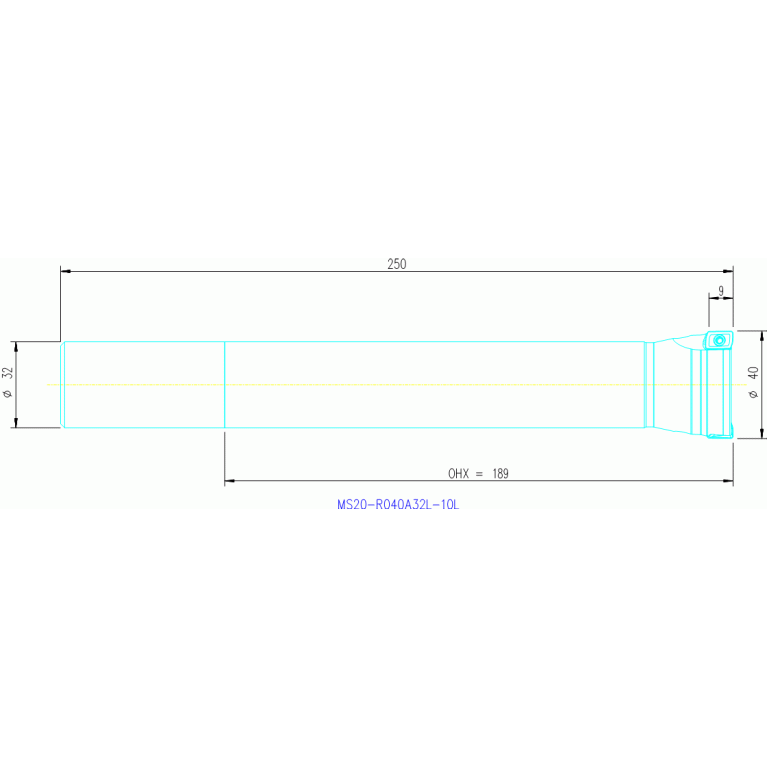

LF (Functional length)

250 mm

LOC-03 ISO

ZYL01G3200h$07

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0320

LOC-03 (DCONMS Diameter)

32 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03200115

LPR (Protruding length)

189 mm

LS (Shank length)

217 mm

MIID (Master insert identification)

MS20-10T3..

OAL (Overall length)

250 mm

RMPX (Ramping angle maximum)

1.6 Degree

RPMX (Rotational speed maximum)

12800 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling

WT (Weight of item)

1.543 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
