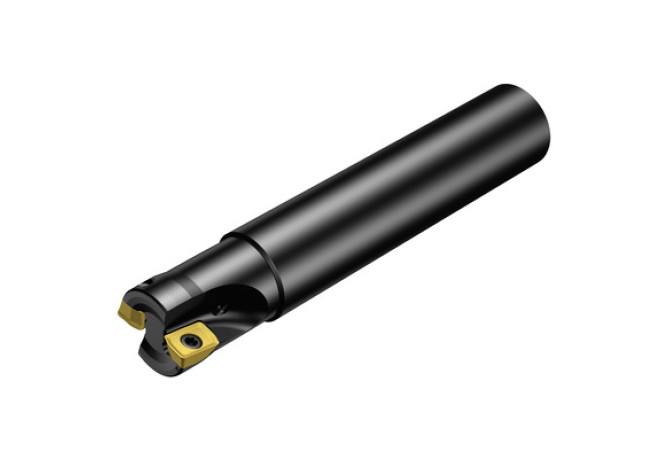

Главная Инструменты 307-01 - Non-centre cutting single row end mill MS20-AR038M32-10M

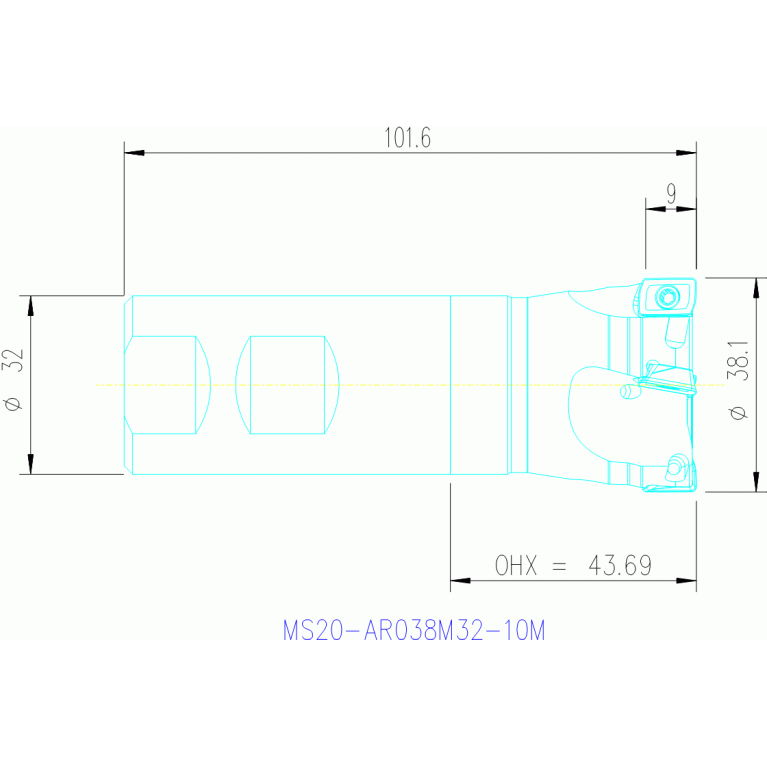

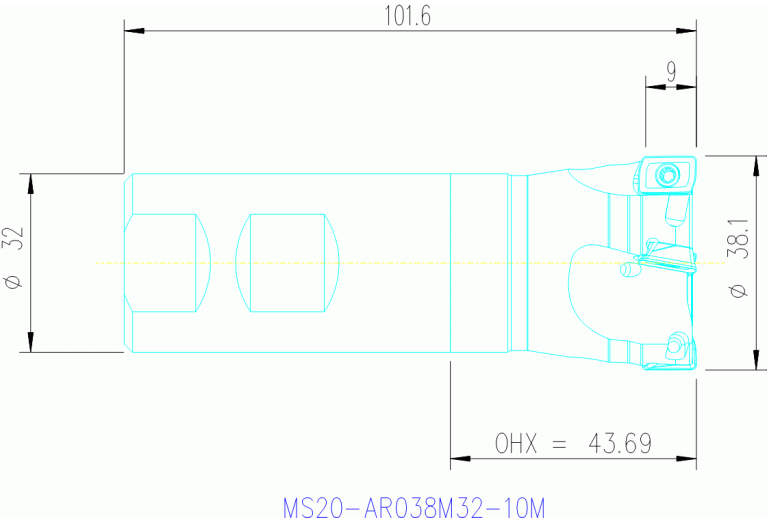

MS20-AR038M32-10M

Артикул: 8068046

В наличии

0 ₽

В корзину

Описание

Характеристики

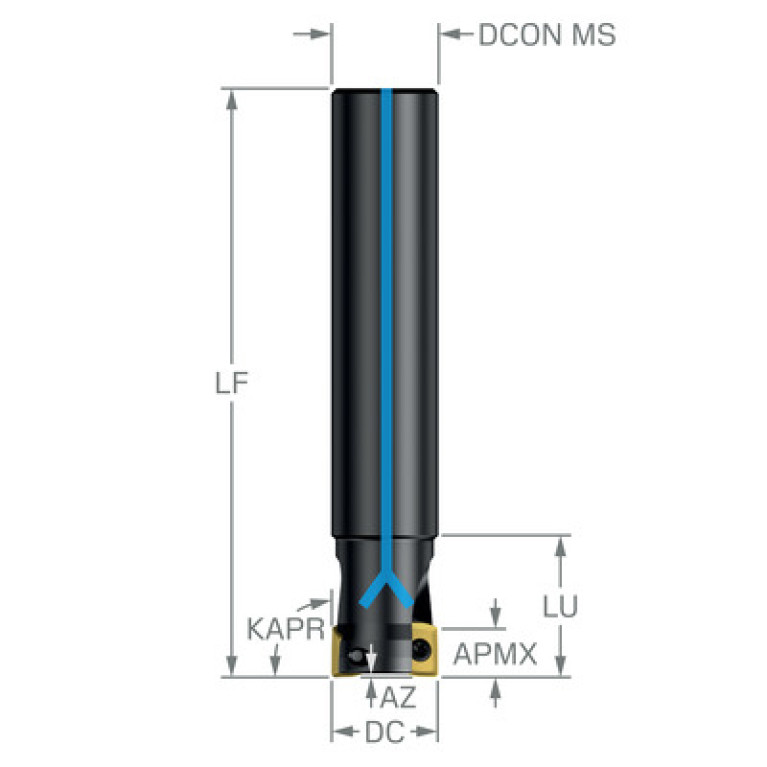

A2A (Clearance angle major Pos. A)

19 Degree

APMX (Depth of cut maximum)

9 mm

AZ (Plunge depth maximum)

1 mm

B1A (Cutting edge length Pos. A)

9.7 mm

B2A (Insert width Pos. A)

6.7 mm

B3A (Inscribed circle diameter Pos. A)

6.7 mm

BD (Body diameter)

36.6 mm

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

3.6 mm

CCONMS (Connection count machine side)

CICT (Cutting item count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DC (Cutting diameter)

38.1 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2024

DIN

ZYL12501035

DN (Neck diameter)

35.6 mm

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

GAMF (Rake angle radial)

10 Degree

GAMP (Rake angle axial)

-10.82 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL10S1250h$06

KAPR (Tool cutting edge angle)

90 Degree

LF (Functional length)

72.628 mm

LOC-03 ISO

ZYL10S1250h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

1250

LOC-03 (DCONMS Diameter)

31.75 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL12501035

LPR (Protruding length)

43.688 mm

LS (Shank length)

68.12 mm

OAL (Overall length)

101.6 mm

RMPX (Ramping angle maximum)

1.7 Degree

RPMX (Rotational speed maximum)

23200 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling

WT (Weight of item)

0.585 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
