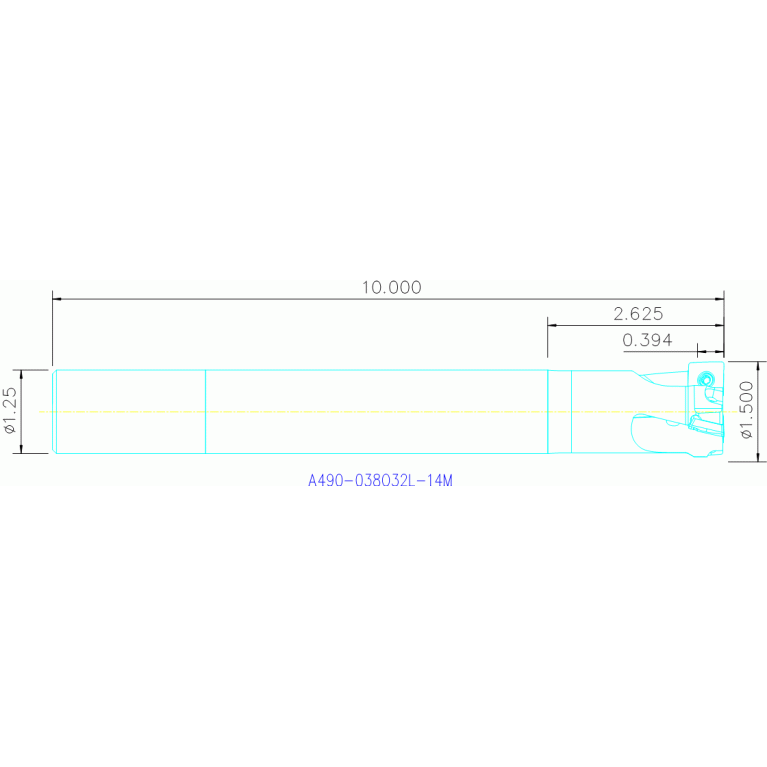

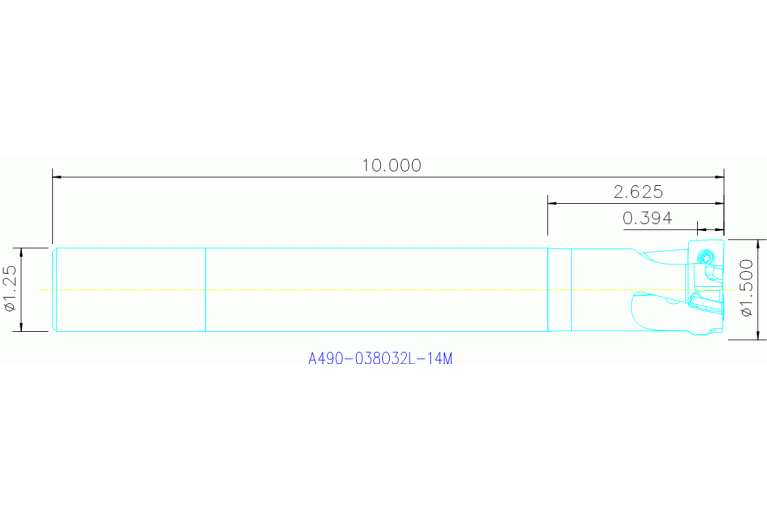

A490-038O32L-14M
A490-038O32L-14M
Артикул:
5844005
В наличии
0 ₽

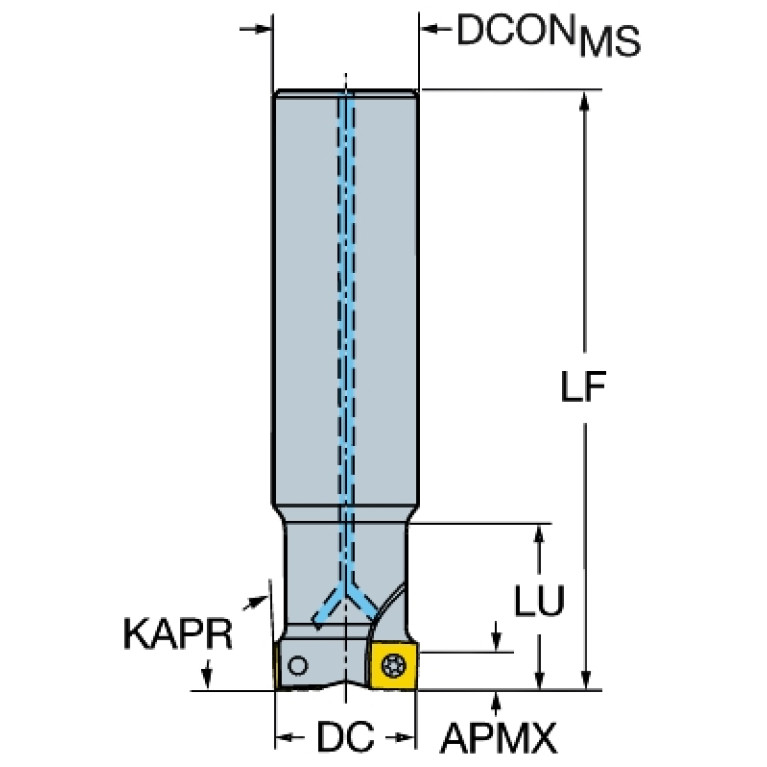

Характеристики
A1A (Cutting edge angle major Pos. A)
90 Degree
APMX (Depth of cut maximum)
10 mm
AZ (Plunge depth maximum)
0 mm
B2A (Insert width Pos. A)
13.8 mm
B3A (Inscribed circle diameter Pos. A)
13.8 mm
BI (Block index)
1
BLDA (Tool style code Position A)
2
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
3.9 mm
CCONMS (Connection count machine side)
2
CICT (Cutting item count)
3
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
2 - With Coolant exit, radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
2 - With Coolant exit, radial
DC (Cutting diameter)
38.1 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL12500135
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
3
GAMF (Rake angle radial)
14 Degree
GAMP (Rake angle axial)
15 Degree
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL01S1250$$$$
KAPR (Tool cutting edge angle)
90 Degree
LF (Functional length)
254 mm
LOC-03 ISO
ZYL01S1250$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
1250
LOC-03 (DCONMS Diameter)
31.75 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL12500135
LPR (Protruding length)
196.06 mm
LS (Shank length)
57.94 mm
MIID (Master insert identification)
490R-1404
OAL (Overall length)
254 mm
RMPX (Ramping angle maximum)
0 Degree
RPMX (Rotational speed maximum)
7400 1/min
Working process
FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling
WT (Weight of item)
1.434 kg
ZEFF (Face effective cutting edge count)
3
ZEFP (Peripheral effective cutting edge count)
3
