Главная Инструменты 307-01 - Non-centre cutting single row end mill 490-025C3-08M

490-025C3-08M

Артикул: 5762120

В наличии

0 ₽

В корзину

Описание

Характеристики

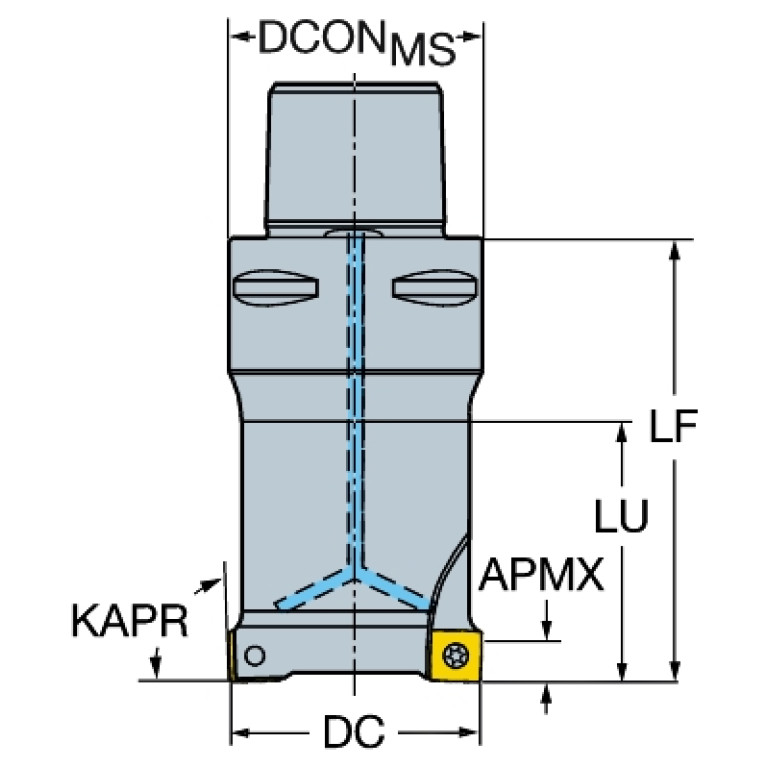

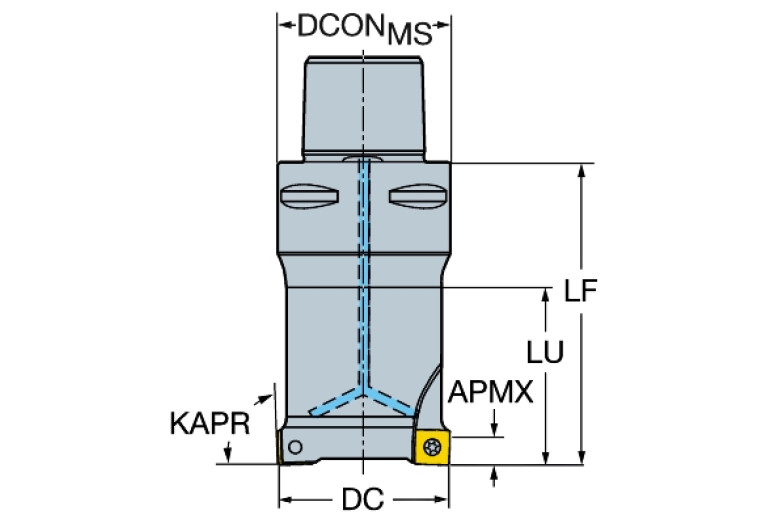

A1A (Cutting edge angle major Pos. A)

90 Degree

APMX (Depth of cut maximum)

5.5 mm

AZ (Plunge depth maximum)

0 mm

B2A (Insert width Pos. A)

8.5 mm

B3A (Inscribed circle diameter Pos. A)

8.5 mm

BI (Block index)

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

3.3 mm

CCONMS (Connection count machine side)

CICT (Cutting item count)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DC (Cutting diameter)

25 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS03200195

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

GAMF (Rake angle radial)

15 Degree

GAMP (Rake angle axial)

19.9 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

CCS01C0320$$$$

KAPR (Tool cutting edge angle)

90 Degree

LF (Functional length)

80 mm

LOC-03 ISO

CCS01C0320$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0320

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS03200195

LPR (Protruding length)

80 mm

LU (Usable length)

60 mm

MIID (Master insert identification)

490R-08T308

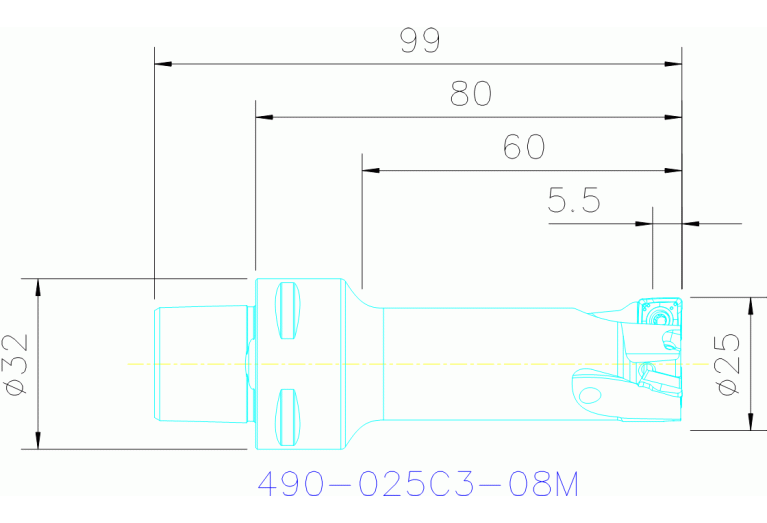

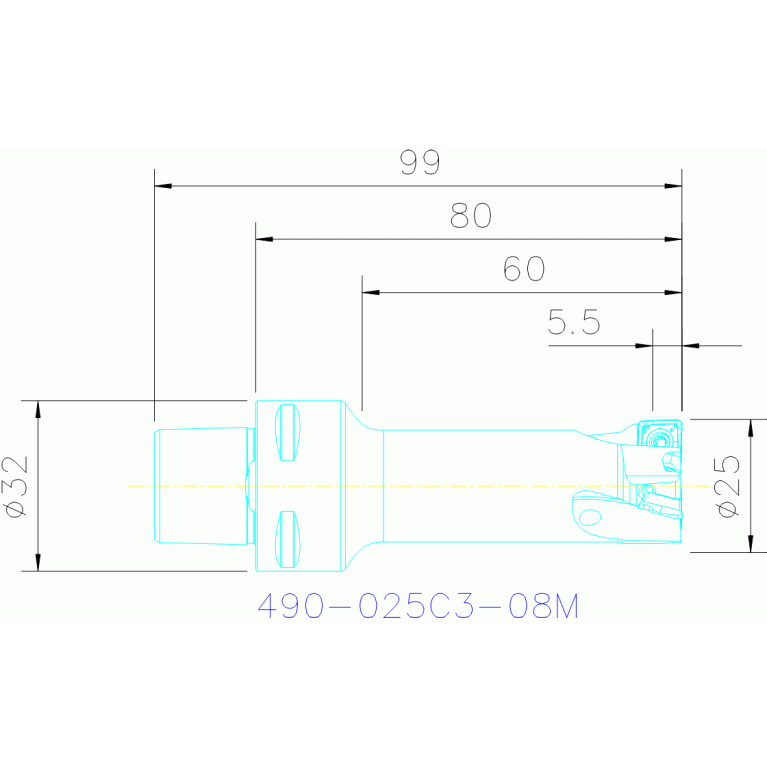

OAL (Overall length)

99 mm

RMPX (Ramping angle maximum)

0 Degree

RPMX (Rotational speed maximum)

40400 1/min

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling

WT (Weight of item)

0.278 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
