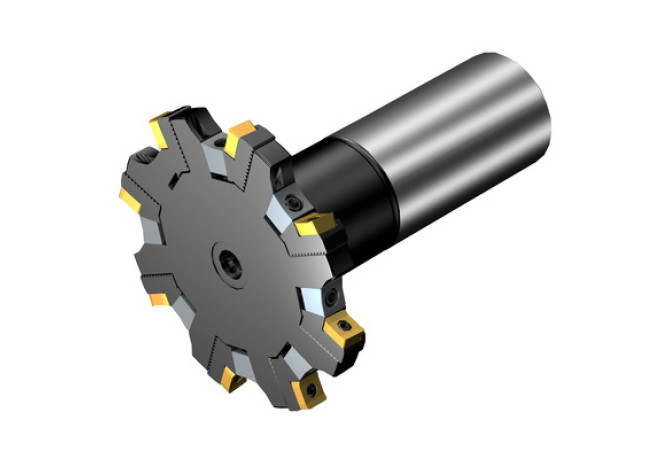

Главная Инструменты 307-04 - T-slot end mill R331.52C-080A32EMR

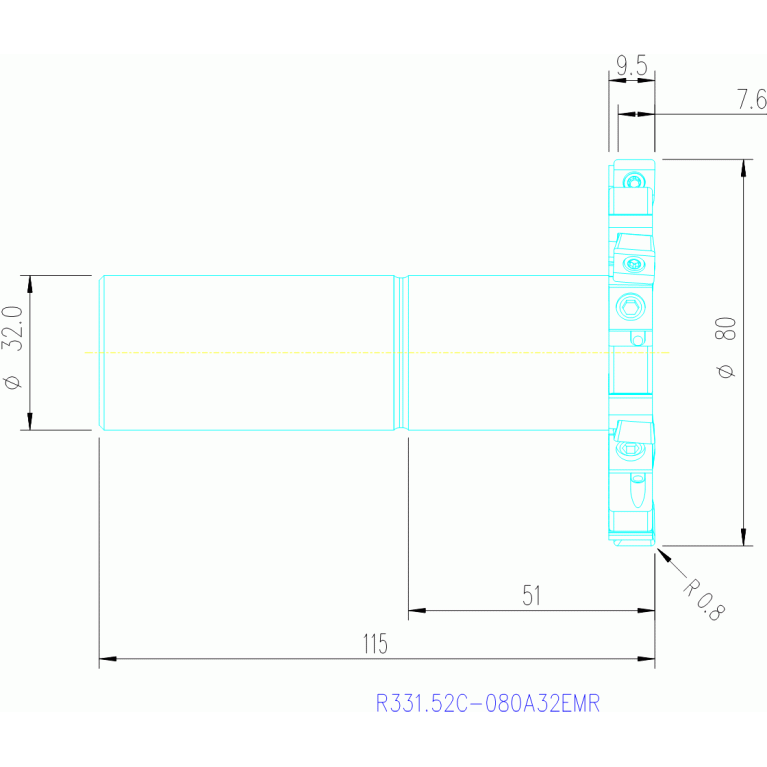

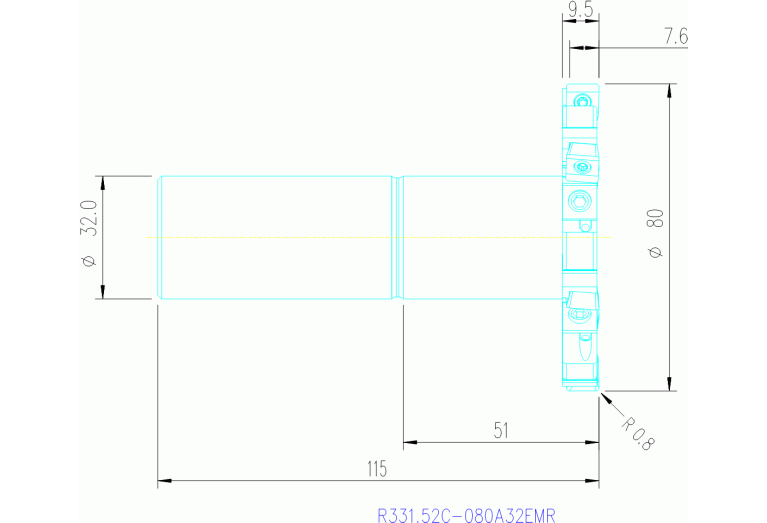

R331.52C-080A32EMR

R331.52C-080A32EMR R331.52C-080A32EMR R331.52C-080A32EMR R331.52C-080A32EMR

R331.52C-080A32EMR

SV - Sandvik-Coromant
Артикул: 7848295
В наличии
0 ₽
В корзину
Описание
Характеристики
A1A (Cutting edge angle major Pos. A)
90 Degree
A1B (Cutting edge angle major Pos. B)
90 Degree
A2A (Clearance angle major Pos. A)
0 Degree
A2B (Clearance angle major Pos. B)
0 Degree

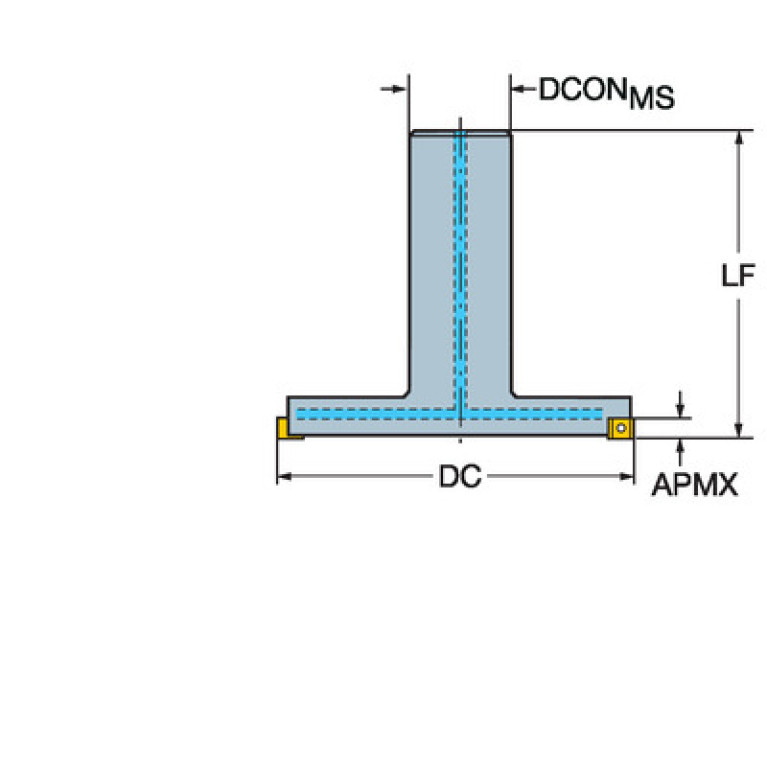

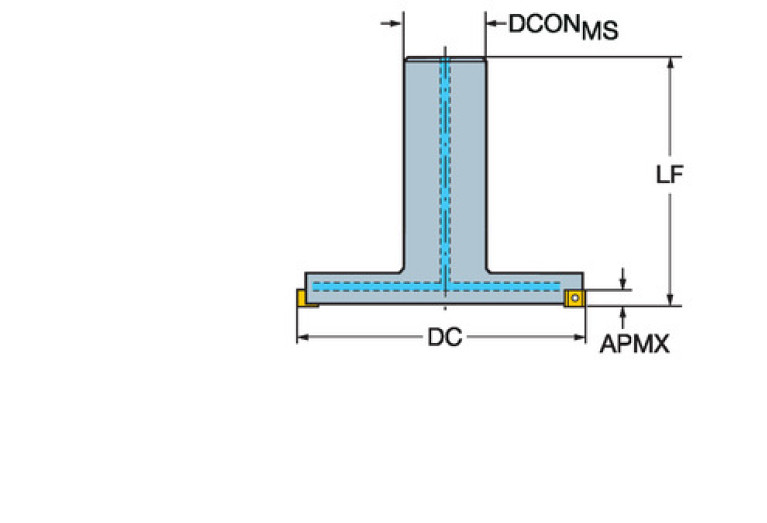

APMX (Depth of cut maximum)
7.6 mm
B2A (Insert width Pos. A)
9.5 mm
B2B (Insert width Pos. B)
9.5 mm
B3A (Inscribed circle diameter Pos. A)
9.5 mm
B3B (Inscribed circle diameter Pos. B)
9.5 mm
BD (Body diameter)
77.6 mm
BI (Block index)
1
BLDA (Tool style code Position A)
4
BLDB (Tool style code Position B)
4
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
4.45 mm
C1B (Insert thickness Pos. B)
4.45 mm
CCONMS (Connection count machine side)
2
CICT (Cutting item count)
12
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
2 - With Coolant exit, radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
2 - With Coolant exit, radial
DC (Cutting diameter)
80 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL03200115
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL01G3200h$06
LF (Functional length)
115 mm
LOC-02 (BI Block index)
2
LOC-02 (MIID Master insert identification)
N331.1A-08
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-03 ISO
ZYL01G3200h$06
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
0320
LOC-03 (DCONMS Diameter)
32 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03200115
LPR (Protruding length)
54 mm
LS (Shank length)
61 mm
MIID (Master insert identification)
N331.1A-08
MILTTY (Mill tool type ISO)
F - T-slot end mills
OAL (Overall length)
115 mm
RPMX (Rotational speed maximum)
15900 1/min
TCDCONMS (ISO-tolerance class shank diameter)
h6
Working process
FPL - Face milling
WT (Weight of item)
0.87 kg
ZEFF (Face effective cutting edge count)
6
ZEFP (Peripheral effective cutting edge count)
6
