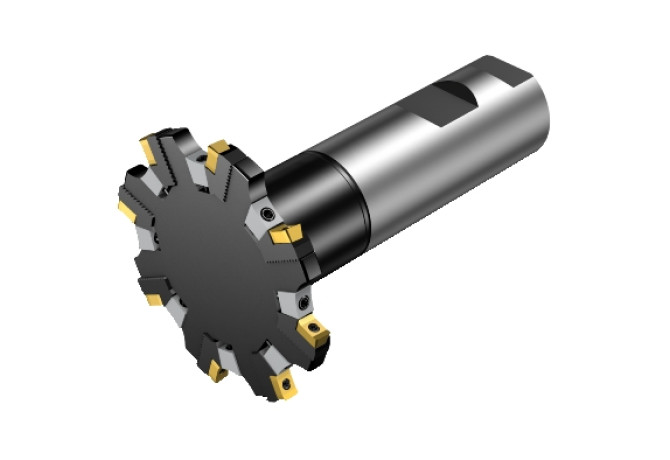

Главная Инструменты 307-04 - T-slot end mill R331.52-101M51EMR

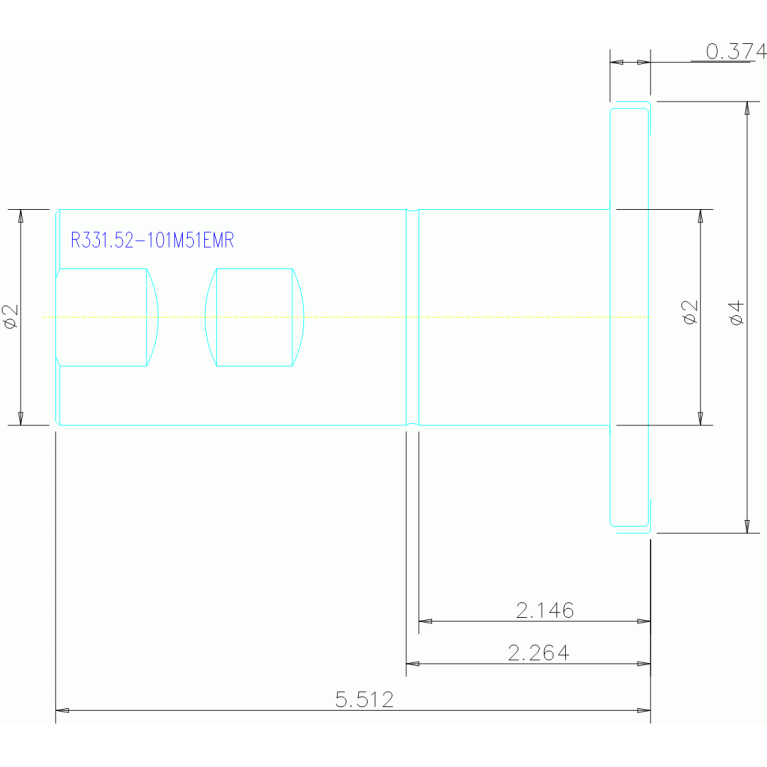

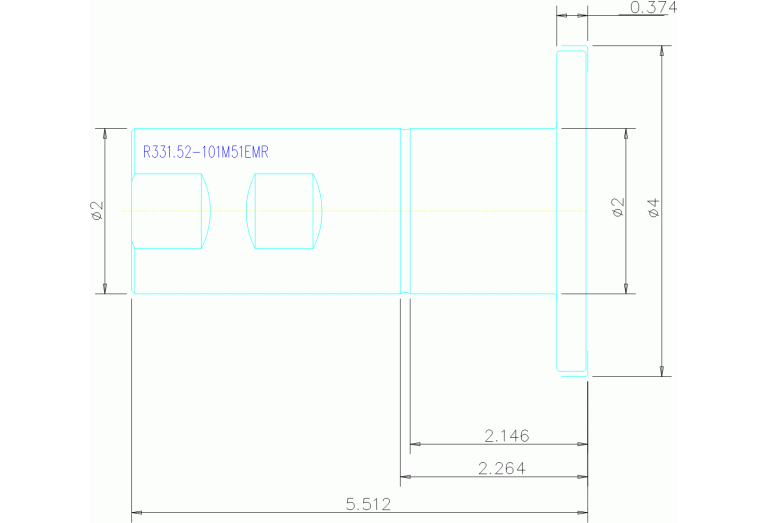

R331.52-101M51EMR

Артикул: 5745105

В наличии

0 ₽

В корзину

Описание

Характеристики

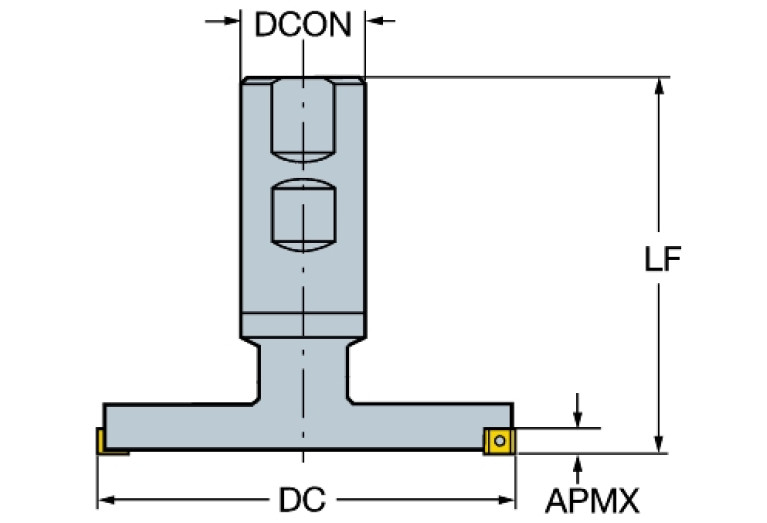

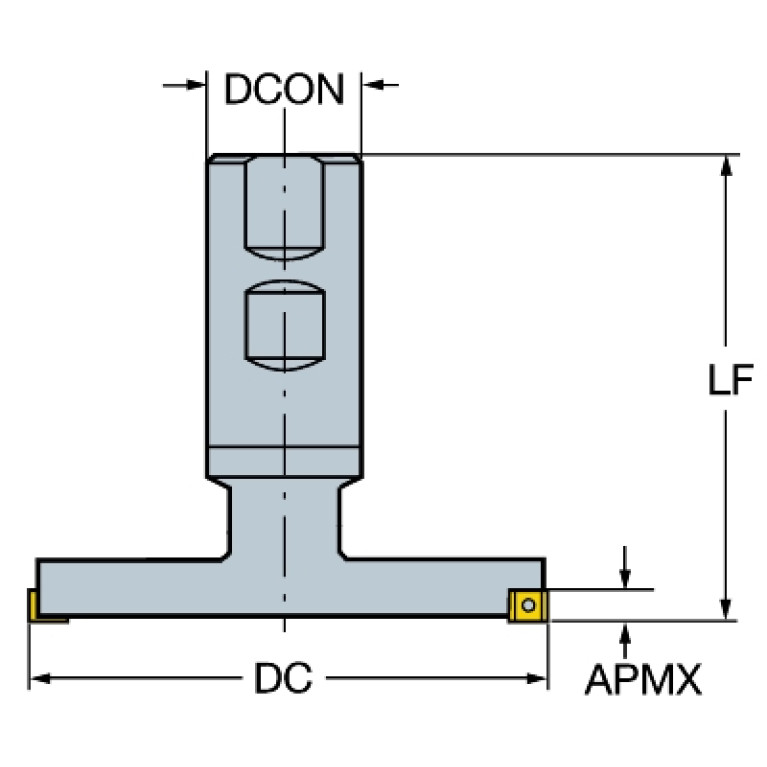

APMX (Depth of cut maximum)

7.6 mm

BD (Body diameter)

98 mm

BI (Block index)

BMC (Body material code)

S - Solid steel

CCONMS (Connection count machine side)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

101.6 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL20001025

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL10S2000h$06

LOC-03 ISO

ZYL10S2000h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

2000

LOC-03 (DCONMS Diameter)

50.8 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL20001025

LPR (Protruding length)

47.49 mm

MIID (Master insert identification)

N331.1A-08

MILTTY (Mill tool type ISO)

F - T-slot end mills

OAL (Overall length)

130.04 mm

RPMX (Rotational speed maximum)

15900 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FPL - Face milling

WT (Weight of item)

1.9 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
