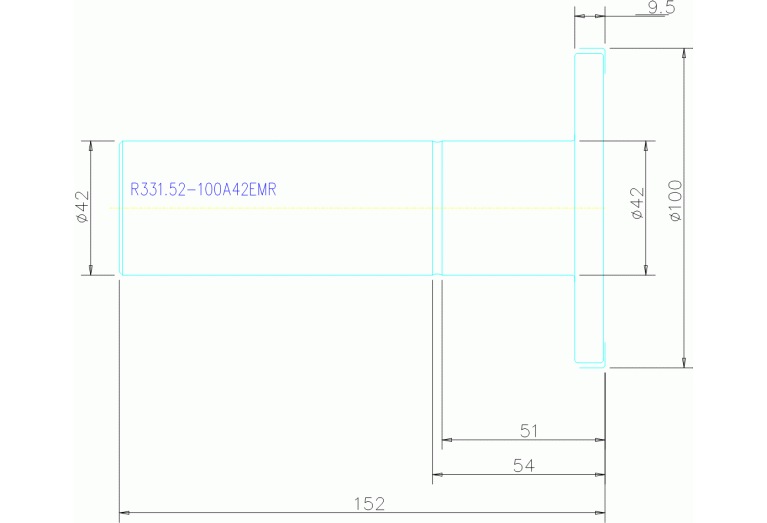

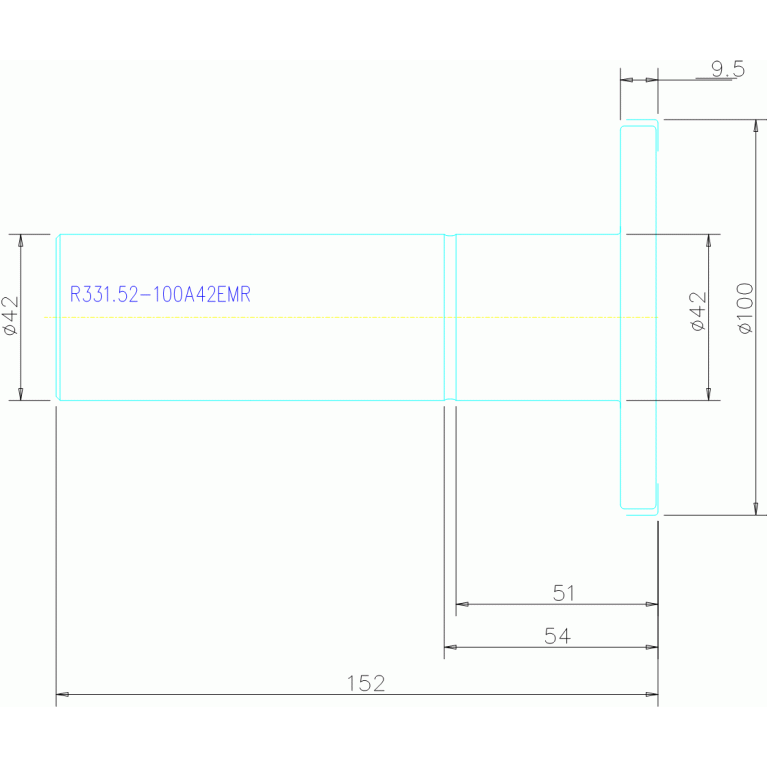

R331.52-100A42EMR
R331.52-100A42EMR
Артикул:
5744975
В наличии
0 ₽
Характеристики

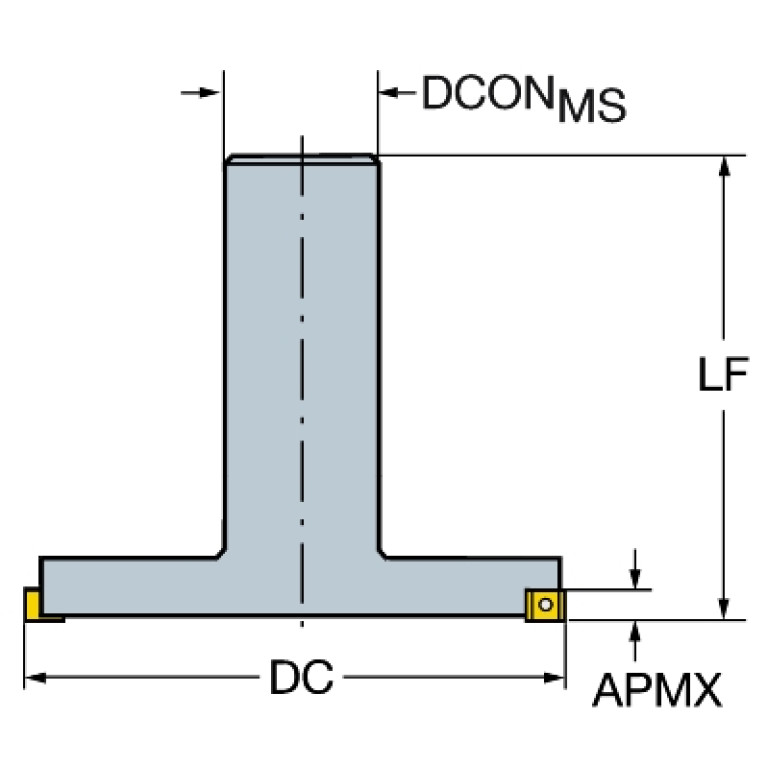

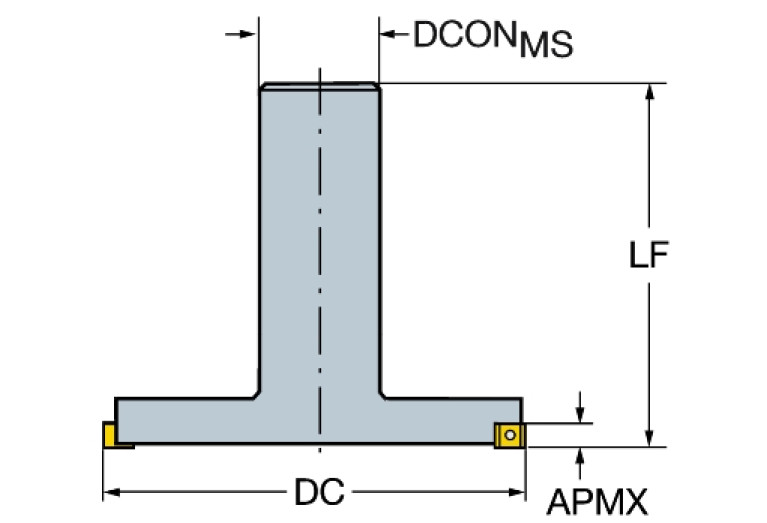

APMX (Depth of cut maximum)
7.6 mm
BD (Body diameter)
97 mm
BI (Block index)
1
BMC (Body material code)
S - Solid steel
CCONMS (Connection count machine side)
2
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DC (Cutting diameter)
100 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
ZYL04200105
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL01G4200h$07
LF (Functional length)
152 mm
LOC-03 ISO
ZYL01G4200h$07
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
0 Metric
LOC-03 (CZCMS Connection size code)
0420
LOC-03 (DCONMS Diameter)
42 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04200105
LPR (Protruding length)
54 mm
MIID (Master insert identification)
N331.1A-08
MILTTY (Mill tool type ISO)
F - T-slot end mills
OAL (Overall length)
152 mm
RPMX (Rotational speed maximum)
15900 1/min
TCDCONMS (ISO-tolerance class shank diameter)
h7
Working process
FPL - Face milling
WT (Weight of item)
1.9 kg
ZEFF (Face effective cutting edge count)
8
ZEFP (Peripheral effective cutting edge count)
8
