Главная Инструменты 307-04 - T-slot end mill A328-039B19-13M

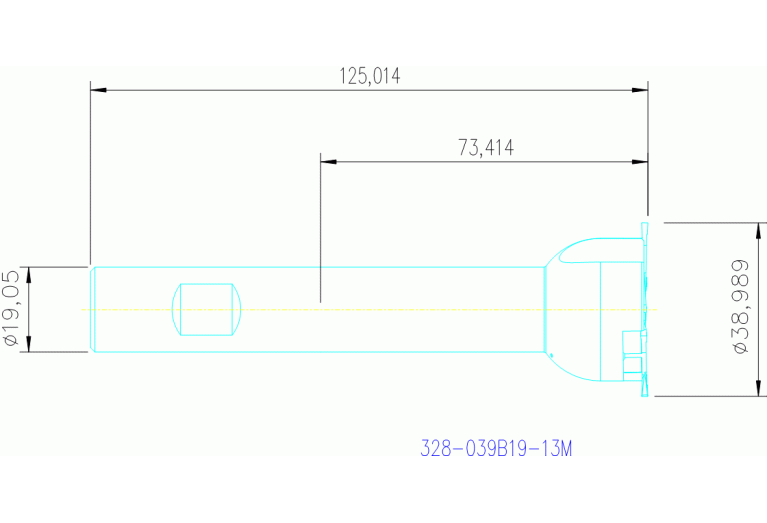

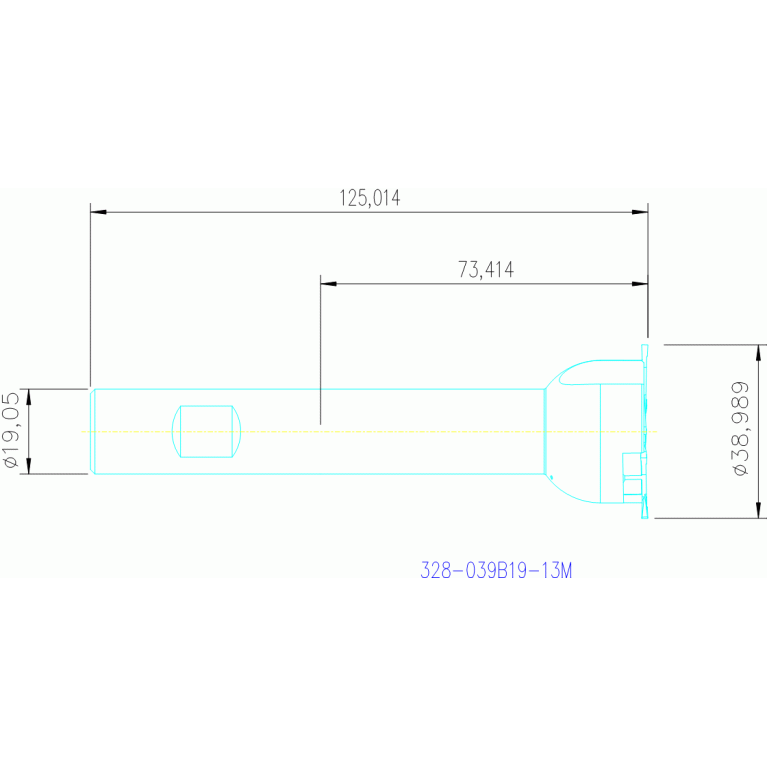

A328-039B19-13M

Артикул: 5722489

В наличии

0 ₽

В корзину

Описание

Характеристики

BD (Body diameter)

32 mm

BI (Block index)

BMC (Body material code)

S - Solid steel

CCONMS (Connection count machine side)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

39 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL07501025

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL10R7500h$06

LOC-01 ISO

SV$$MV13$$$$3R*$$$$

LOC-01 (BI Block index)

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

SV-MV130000

LOC-03 ISO

ZYL10R7500h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

0750

LOC-03 (DCONMS Diameter)

19.05 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL07501025

LPR (Protruding length)

74.2 mm

LS (Shank length)

50.8 mm

MILTTY (Mill tool type ISO)

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

OAL (Overall length)

124.993 mm

RPMX (Rotational speed maximum)

19300 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FTR - Slot cutting

WT (Weight of item)

0.428 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
