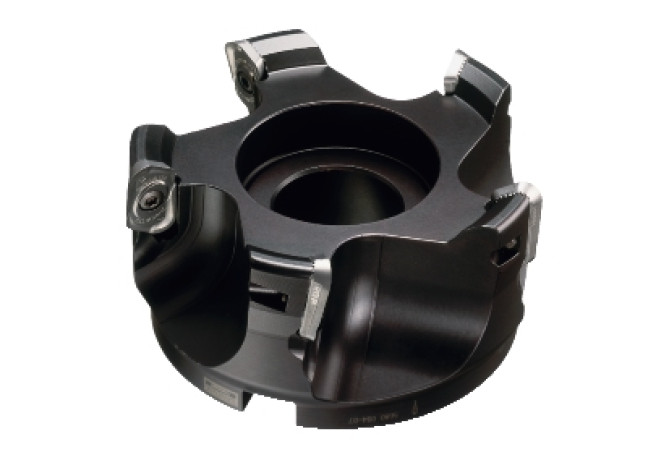

Главная Инструменты 308-02 - Shoulder milling cutter RA790-101R38S1-22M

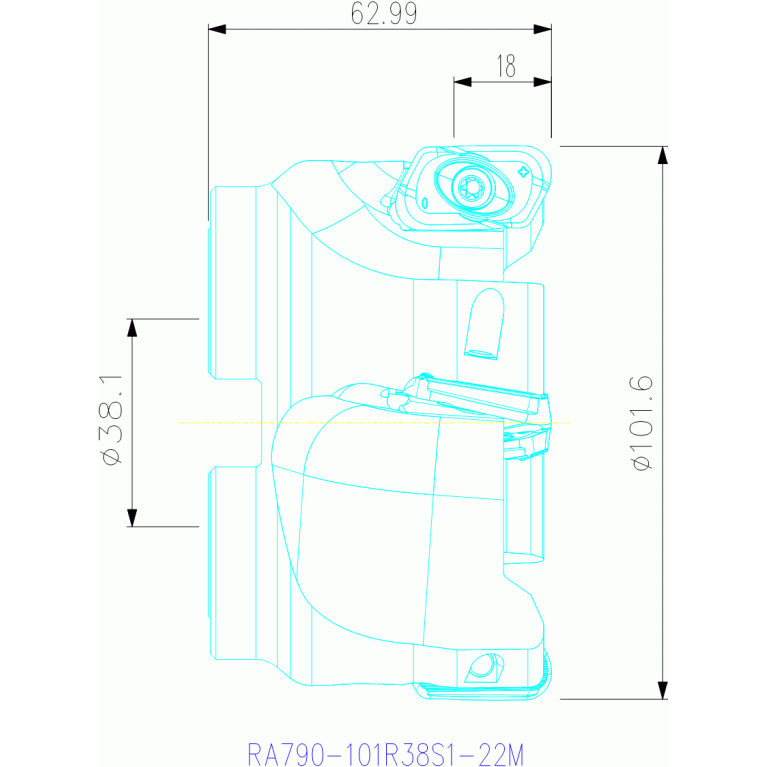

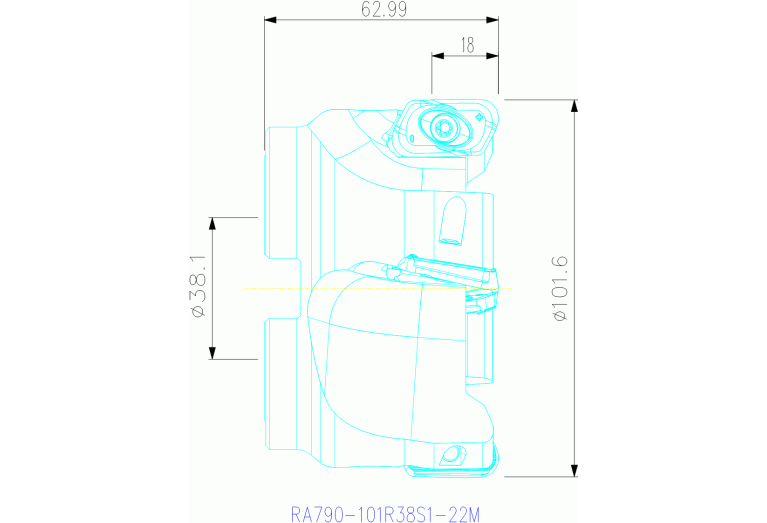

RA790-101R38S1-22M

Артикул: 5738795

В наличии

0 ₽

В корзину

Описание

Характеристики

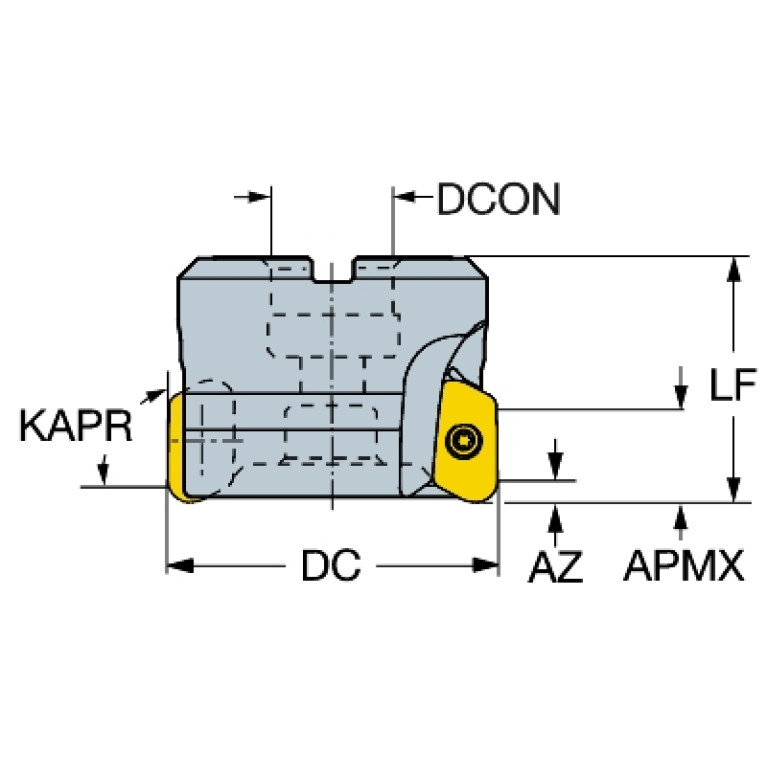

AZ (Plunge depth maximum)

3 mm

B2A (Insert width Pos. A)

16 mm

BI (Block index)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

5 mm

CCONMS (Connection count machine side)

CDX (Cutting depth maximum)

18 mm

CICT (Cutting item count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

101.6 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

FDA15002220

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

GAMF (Rake angle radial)

13 Degree

GAMP (Rake angle axial)

7 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

FDA22S1500$$$$

KAPR (Tool cutting edge angle)

90 Degree

LOC-03 ISO

FDA22S1500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

1500

LOC-03 (DCONMS Diameter)

38.1 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA15002220

MIID (Master insert identification)

R790-2205..

OAL (Overall length)

63 mm

RMPX (Ramping angle maximum)

2.5 Degree

RPMX (Rotational speed maximum)

20000 1/min

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling

WT (Weight of item)

1.734 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
