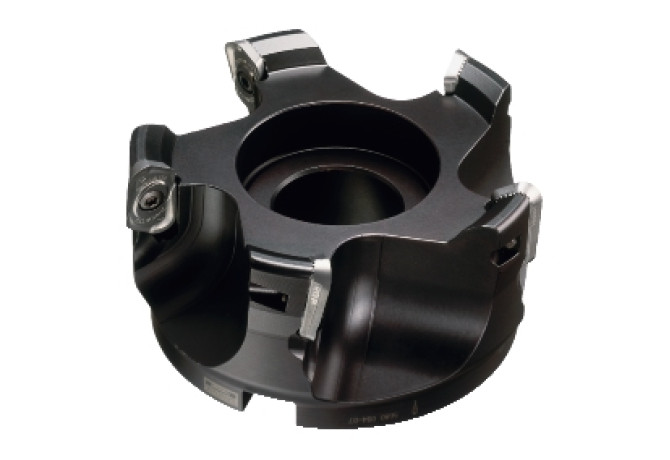

Главная Инструменты 308-02 - Shoulder milling cutter RA790-076R25S1-22M

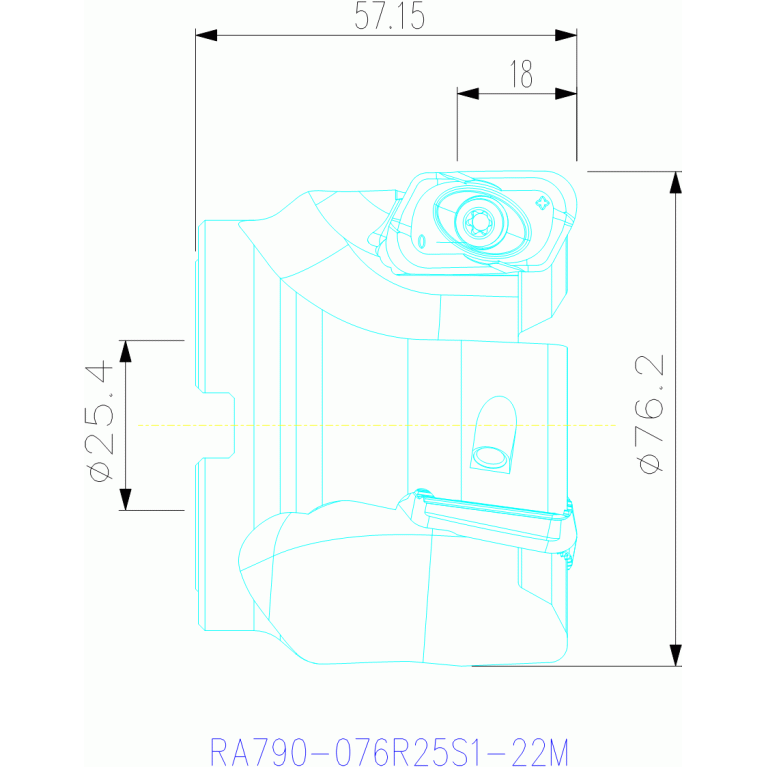

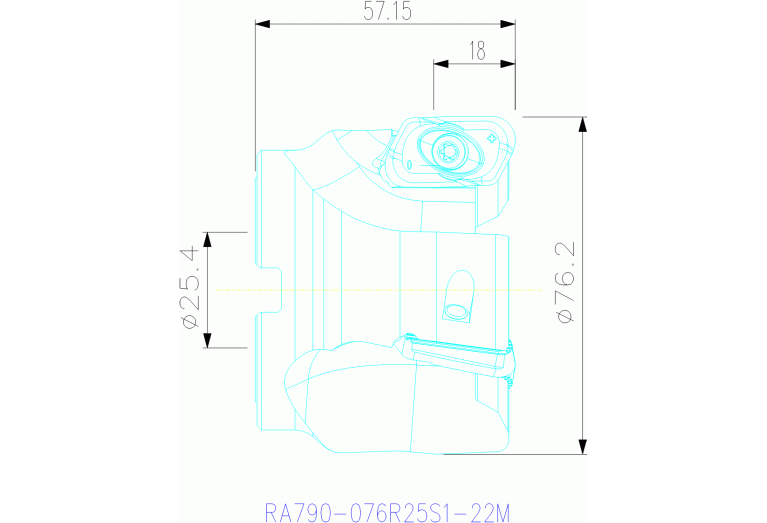

RA790-076R25S1-22M

RA790-076R25S1-22M RA790-076R25S1-22M RA790-076R25S1-22M RA790-076R25S1-22M

RA790-076R25S1-22M

SV - Sandvik-Coromant
Артикул: 5738794
В наличии
0 ₽
В корзину
Описание
Характеристики

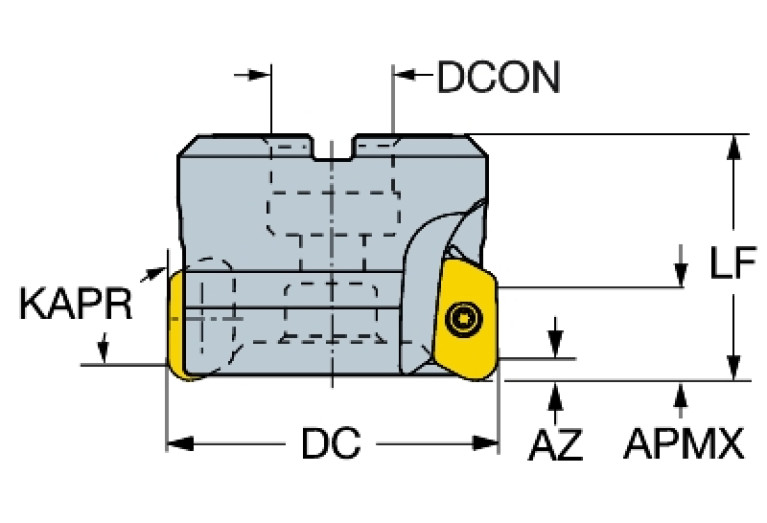

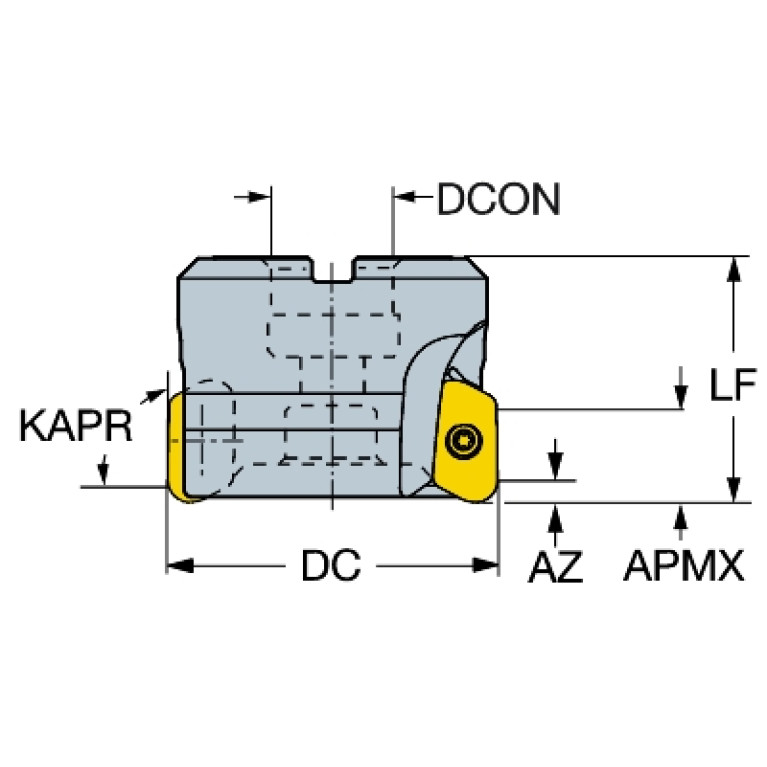

AZ (Plunge depth maximum)
3 mm
B2A (Insert width Pos. A)
16 mm
BI (Block index)
1
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
5 mm
CCONMS (Connection count machine side)
2
CDX (Cutting depth maximum)
18 mm
CICT (Cutting item count)
3
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DC (Cutting diameter)
76.2 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
FDA10001220
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
3
GAMF (Rake angle radial)
13 Degree
GAMP (Rake angle axial)
6.7 Degree
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
FDA12S1000$$$$
KAPR (Tool cutting edge angle)
90 Degree
LOC-03 ISO
FDA12S1000$$$$
LOC-03 (CCFMS Connection code form)
12
LOC-03 (CCSMS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-03 (CCTMS Connection code type)
FDA Milling arbor mounting
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
1000
LOC-03 (DCONMS Diameter)
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10001220
MIID (Master insert identification)
R790-2205..
OAL (Overall length)
57.15 mm
RMPX (Ramping angle maximum)
7.5 Degree
RPMX (Rotational speed maximum)
24400 1/min
Working process
FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling
WT (Weight of item)
0.755 kg
ZEFF (Face effective cutting edge count)
3
ZEFP (Peripheral effective cutting edge count)
3
