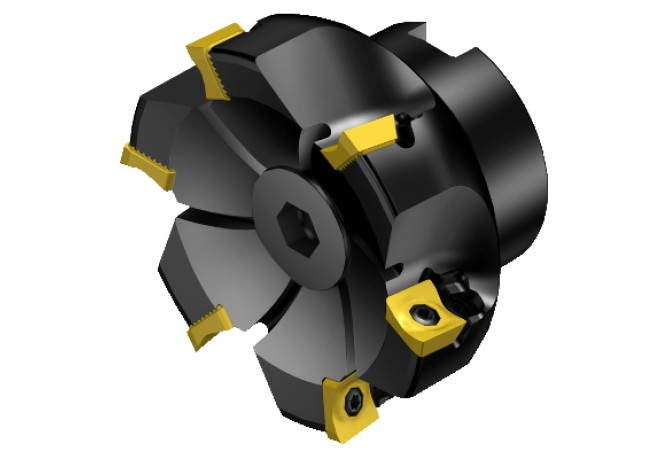

Главная Инструменты 308-02 - Shoulder milling cutter RA590-160J38S-11M

RA590-160J38S-11M

RA590-160J38S-11M RA590-160J38S-11M RA590-160J38S-11M RA590-160J38S-11M

RA590-160J38S-11M

SV - Sandvik-Coromant
Артикул: 5740386
В наличии
0 ₽
В корзину
Описание
Характеристики

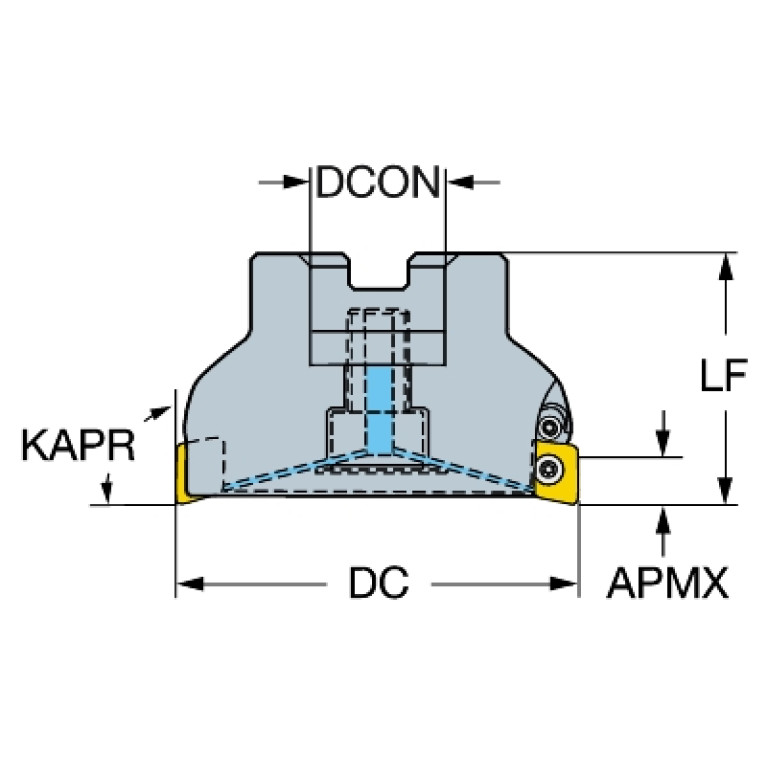

B2A (Insert width Pos. A)
11.5 mm
BI (Block index)
1
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
5 mm
CCONMS (Connection count machine side)
2
CICT (Cutting item count)
10
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DC (Cutting diameter)
160 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
FDA15002230
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
10
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
FDA22S1500$$$$
KAPR (Tool cutting edge angle)
90 Degree
LOC-03 ISO
FDA22S1500$$$$
LOC-03 (CCFMS Connection code form)
22
LOC-03 (CCSMS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-03 (CCTMS Connection code type)
FDA Milling arbor mounting
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
1500
LOC-03 (DCONMS Diameter)
38.1 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA15002230
MIID (Master insert identification)
R590-1105..
OAL (Overall length)
63 mm
RMPX (Ramping angle maximum)
0 Degree
RPMX (Rotational speed maximum)
17900 1/min
Working process
FEC - Square shoulder milling,FPL - Face milling
WT (Weight of item)
6.02 kg
ZEFF (Face effective cutting edge count)
10
ZEFP (Peripheral effective cutting edge count)
10
