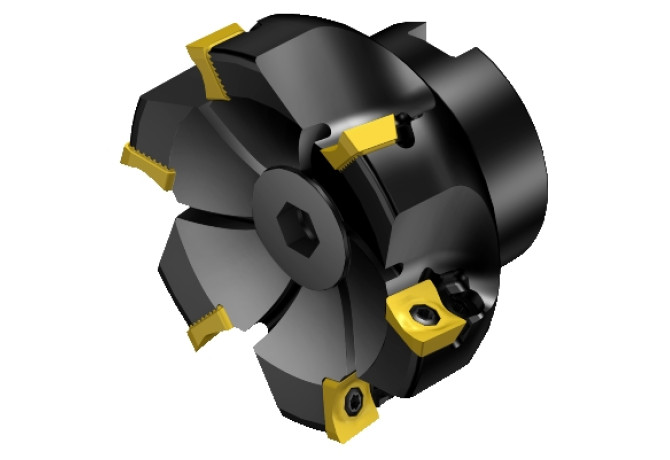

Главная Инструменты 308-02 - Shoulder milling cutter RA590-125J38S-11M

RA590-125J38S-11M

RA590-125J38S-11M

RA590-125J38S-11M

RA590-125J38S-11M

RA590-125J38S-11M

RA590-125J38S-11M

RA590-125J38S-11M

SV - Sandvik-Coromant

Артикул: 5740380

В наличии

0 ₽

В корзину

Описание

Характеристики

AZ (Plunge depth maximum)

0 mm

B2A (Insert width Pos. A)

11.5 mm

BI (Block index)

1

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

5 mm

CCONMS (Connection count machine side)

2

CDX (Cutting depth maximum)

11 mm

CICT (Cutting item count)

8

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

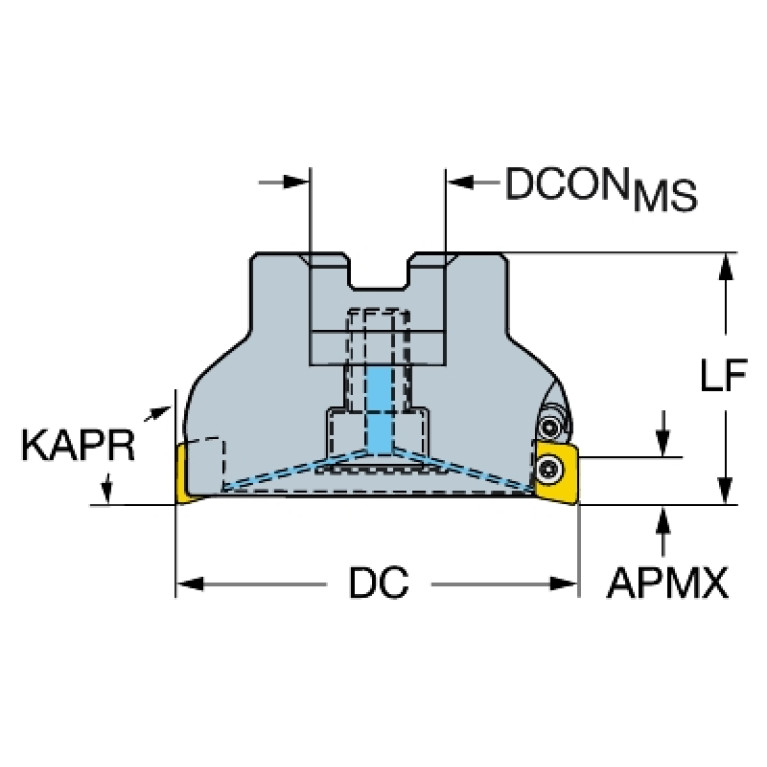

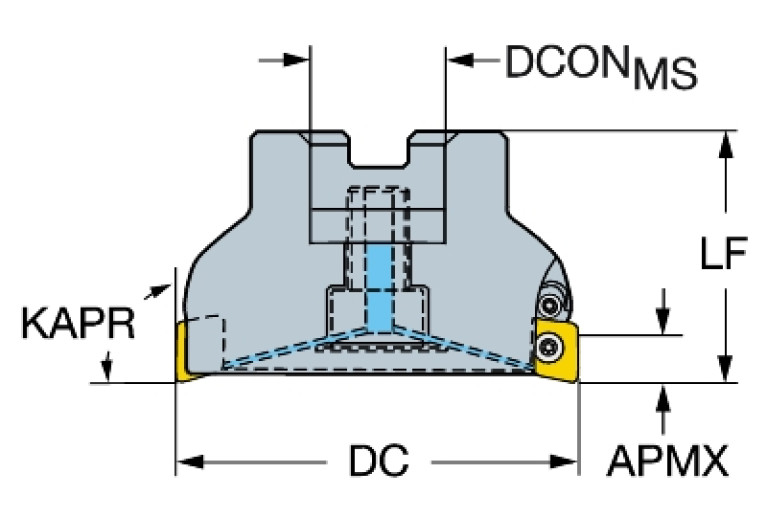

DC (Cutting diameter)

125 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

FDA15002230

F23 (Number of mounting layers)

1

F24 (Cutting item count per mounting layer)

8

GAMF (Rake angle radial)

8 Degree

GAMP (Rake angle axial)

-11.7 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

FDA22S1500$$$$

KAPR (Tool cutting edge angle)

90 Degree

LOC-03 ISO

FDA22S1500$$$$

LOC-03 (CCFMS Connection code form)

22

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

1500

LOC-03 (DCONMS Diameter)

38.1 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA15002230

MIID (Master insert identification)

R590-1105..

OAL (Overall length)

63 mm

RMPX (Ramping angle maximum)

0 Degree

RPMX (Rotational speed maximum)

20700 1/min

Working process

FEC - Square shoulder milling,FPL - Face milling

WT (Weight of item)

2.8 kg

ZEFF (Face effective cutting edge count)

8

ZEFP (Peripheral effective cutting edge count)

8
