Главная Инструменты 308-02 - Shoulder milling cutter RA390-102R38-18M

RA390-102R38-18M

RA390-102R38-18M RA390-102R38-18M RA390-102R38-18M RA390-102R38-18M

RA390-102R38-18M

SV - Sandvik-Coromant
Артикул: 5740257
В наличии
0 ₽
В корзину
Описание
Характеристики

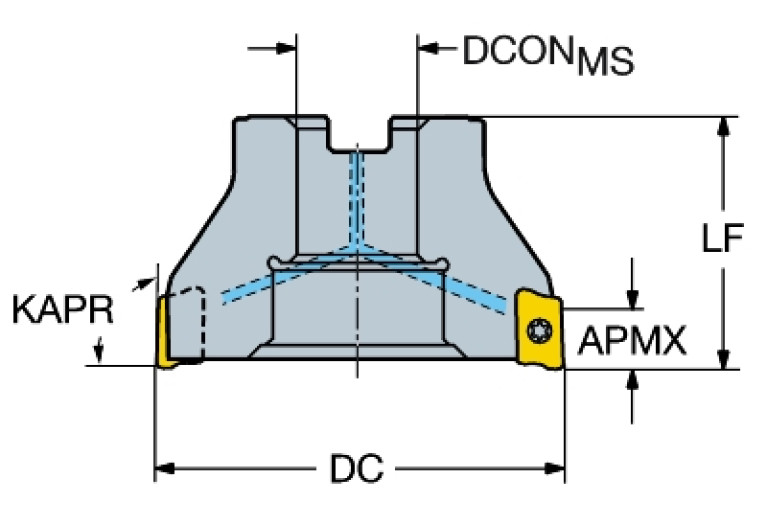

A2A (Clearance angle major Pos. A)
11 Degree
AZ (Plunge depth maximum)
0 mm
B1A (Cutting edge length Pos. A)
18.45 mm
B2A (Insert width Pos. A)
11 mm
B3A (Inscribed circle diameter Pos. A)
11 mm
BI (Block index)
1
BLDA (Tool style code Position A)
4
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
6.33 mm
CCONMS (Connection count machine side)
2
CDX (Cutting depth maximum)
15.4 mm
CICT (Cutting item count)
7
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DC (Cutting diameter)
101.6 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
FDA15002230
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
7
GAMF (Rake angle radial)
13.5 Degree
GAMP (Rake angle axial)
-5.2 Degree
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
FDA22S1500$$$$
KAPR (Tool cutting edge angle)
90 Degree
LOC-03 ISO
FDA22S1500$$$$
LOC-03 (CCFMS Connection code form)
22
LOC-03 (CCSMS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-03 (CCTMS Connection code type)
FDA Milling arbor mounting
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
1500
LOC-03 (DCONMS Diameter)
38.1 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA15002230
MIID (Master insert identification)
R390-18..
OAL (Overall length)
50 mm
RMPX (Ramping angle maximum)
2.3 Degree
RPMX (Rotational speed maximum)
5200 1/min
Working process
FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling
WT (Weight of item)
1.246 kg
ZEFF (Face effective cutting edge count)
7
ZEFP (Peripheral effective cutting edge count)
7
