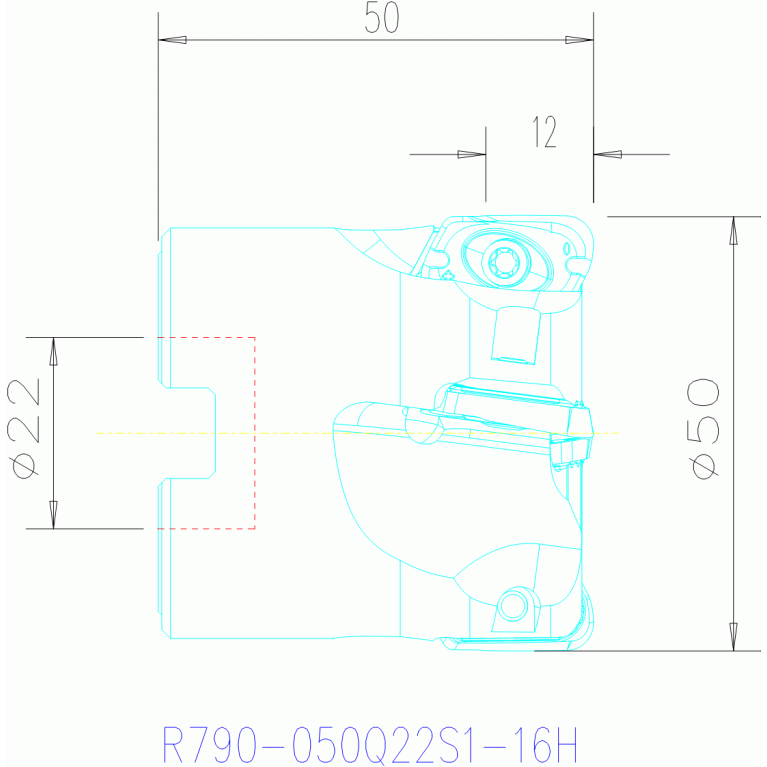

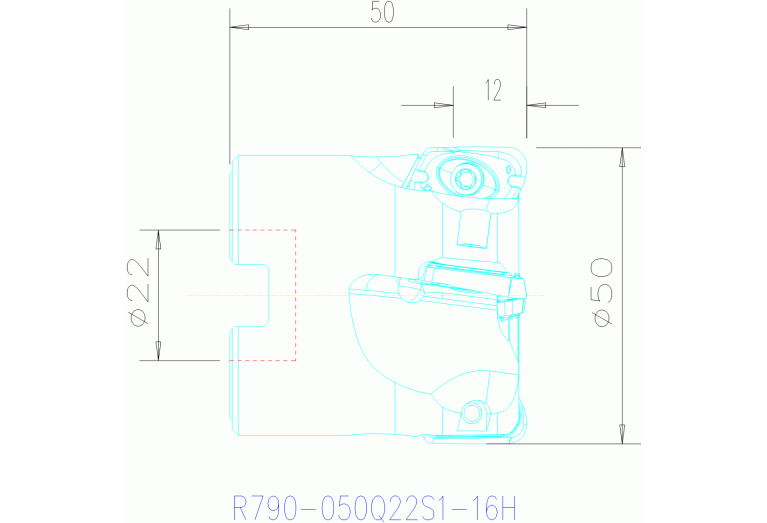

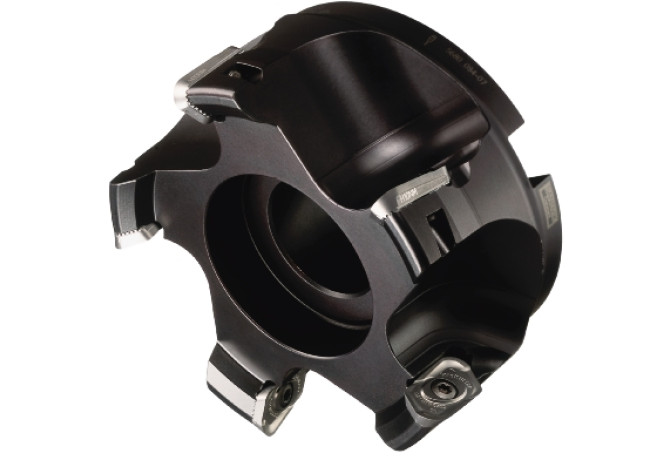

Главная Инструменты 308-02 - Shoulder milling cutter R790-050Q22S1-16H

R790-050Q22S1-16H

Артикул: 5747178

В наличии

0 ₽

В корзину

Описание

Характеристики

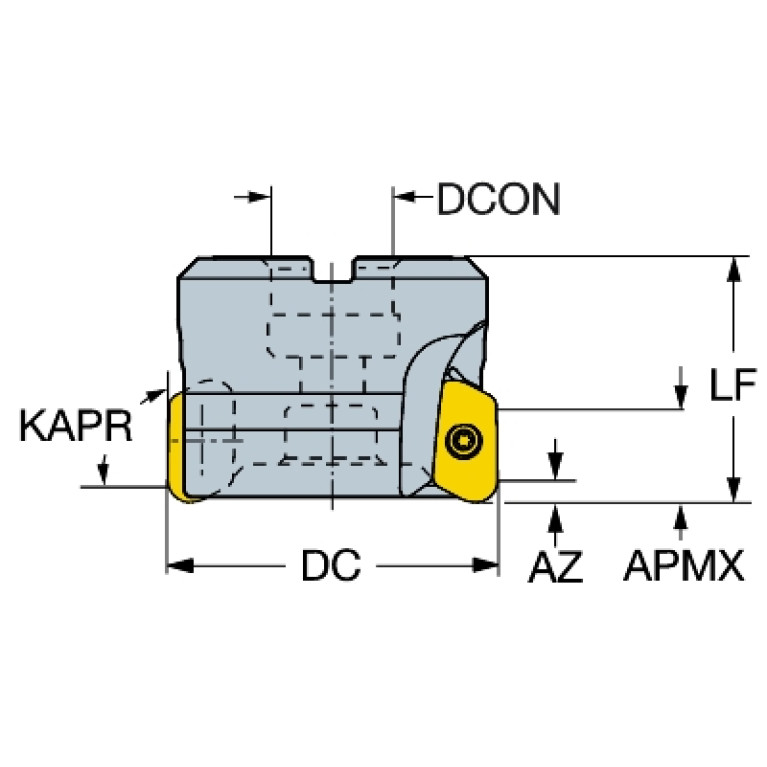

AZ (Plunge depth maximum)

0 mm

B2A (Insert width Pos. A)

11 mm

BI (Block index)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

4 mm

CCONMS (Connection count machine side)

CDX (Cutting depth maximum)

12 mm

CICT (Cutting item count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

50 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

FDA02201200

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

GAMF (Rake angle radial)

11 Degree

GAMP (Rake angle axial)

2 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

FDA12G2200$$$$

KAPR (Tool cutting edge angle)

90 Degree

LOC-03 ISO

FDA12G2200$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0220

LOC-03 (DCONMS Diameter)

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02201200

MIID (Master insert identification)

R790-1604..

OAL (Overall length)

50 mm

RMPX (Ramping angle maximum)

7 Degree

RPMX (Rotational speed maximum)

36700 1/min

Working process

FEC - Square shoulder milling,FPL - Face milling

WT (Weight of item)

0.42 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
