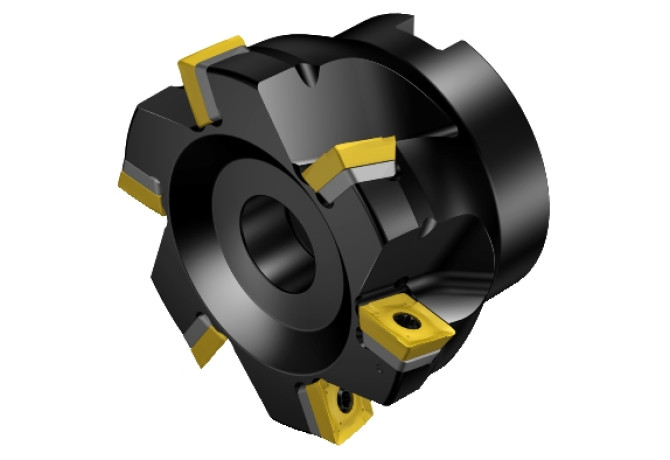

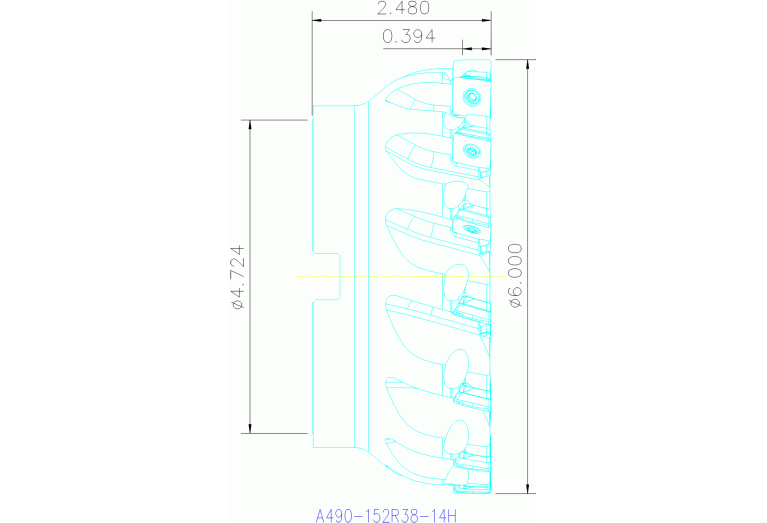

A490-152R38-14H
A490-152R38-14H
Артикул:
5844021
В наличии
0 ₽
Характеристики
A1A (Cutting edge angle major Pos. A)
90 Degree
AZ (Plunge depth maximum)
0 mm
B3A (Inscribed circle diameter Pos. A)
13.8 mm
BI (Block index)
1
BLDA (Tool style code Position A)
2
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
3.9 mm
CCONMS (Connection count machine side)
2
CDX (Cutting depth maximum)
10 mm
CICT (Cutting item count)
14
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DC (Cutting diameter)
152.4 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SPK15000123
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
14
GAMF (Rake angle radial)
16 Degree
GAMP (Rake angle axial)
15 Degree
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SPK01S1500$$$$
KAPR (Tool cutting edge angle)
90 Degree
LOC-03 ISO
SPK01S1500$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or
LOC-03 (CCTMS Connection code type)
SPK Spindle nose mounting
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
1500
LOC-03 (DCONMS Diameter)
38.1 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SPK15000123
MIID (Master insert identification)
490R-1404
OAL (Overall length)
62.992 mm
RMPX (Ramping angle maximum)
0 Degree
RPMX (Rotational speed maximum)
7000 1/min
Working process
FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling
WT (Weight of item)
3.999 kg
ZEFF (Face effective cutting edge count)
14
ZEFP (Peripheral effective cutting edge count)
14
