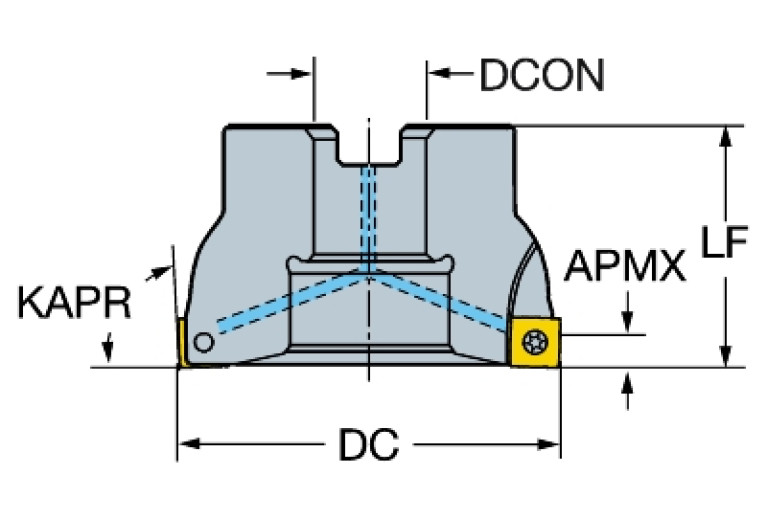

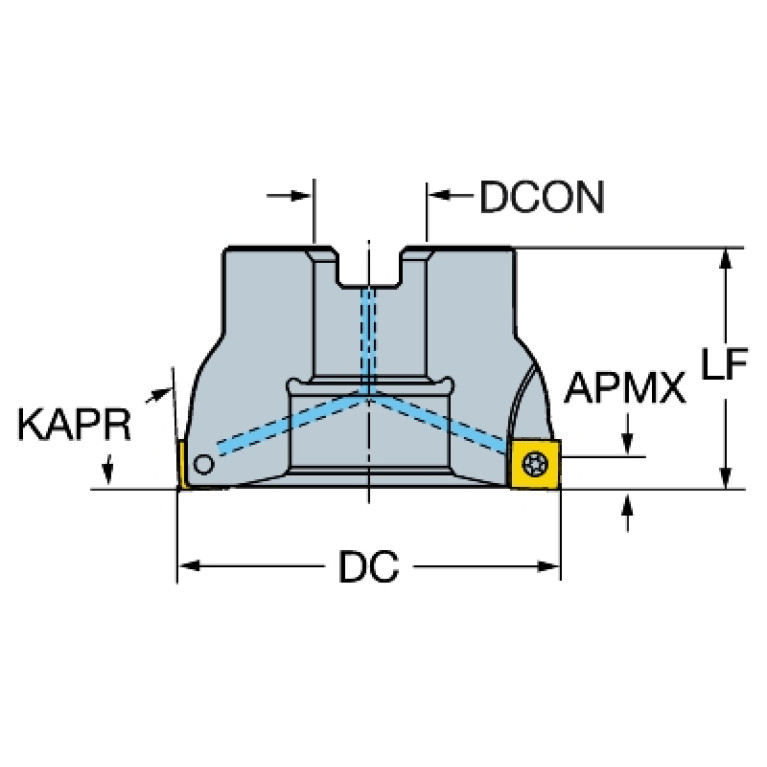

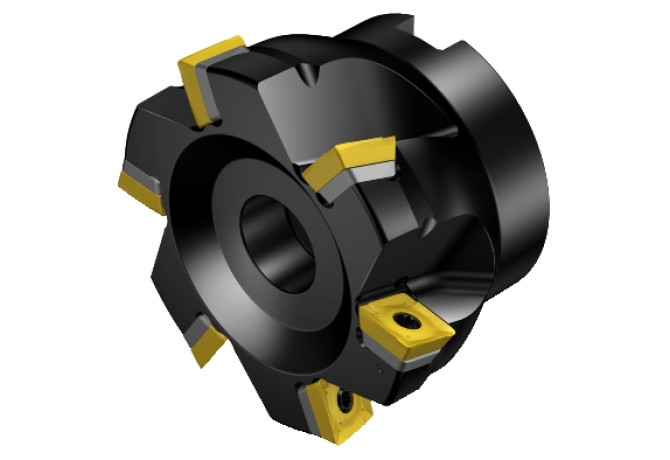

Главная Инструменты 308-02 - Shoulder milling cutter A490-084R25-14M

A490-084R25-14M

A490-084R25-14M A490-084R25-14M A490-084R25-14M A490-084R25-14M

A490-084R25-14M

SV - Sandvik-Coromant
Артикул: 6068011
В наличии
0 ₽
В корзину
Описание
Характеристики
A1A (Cutting edge angle major Pos. A)
90 Degree
B3A (Inscribed circle diameter Pos. A)
13.8 mm
BI (Block index)
1
BLDA (Tool style code Position A)
2
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
3.9 mm
CCONMS (Connection count machine side)
2
CICT (Cutting item count)
6
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
2 - With Coolant exit, radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
2 - With Coolant exit, radial
DC (Cutting diameter)
84 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
FDA10001230
F23 (Number of mounting layers)
1
F24 (Cutting item count per mounting layer)
6
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
FDA12S1000$$$$
KAPR (Tool cutting edge angle)
90 Degree
LOC-03 ISO
FDA12S1000$$$$
LOC-03 (CCFMS Connection code form)
12
LOC-03 (CCSMS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-03 (CCTMS Connection code type)
FDA Milling arbor mounting
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
1000
LOC-03 (DCONMS Diameter)
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10001230
MIID (Master insert identification)
490R-1404
OAL (Overall length)
50.013 mm
RMPX (Ramping angle maximum)
0 Degree
RPMX (Rotational speed maximum)
9800 1/min
Working process
FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling
WT (Weight of item)
1.34 kg
ZEFF (Face effective cutting edge count)
6
ZEFP (Peripheral effective cutting edge count)
6
