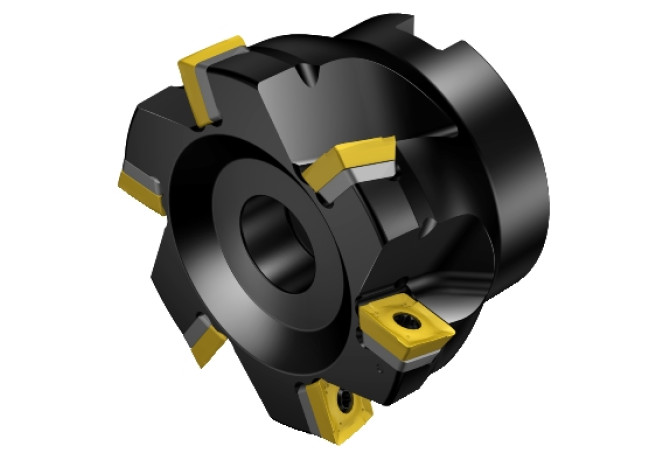

Главная Инструменты 308-02 - Shoulder milling cutter A490-051R19-08L

A490-051R19-08L

Артикул: 5723560

В наличии

0 ₽

В корзину

Описание

Характеристики

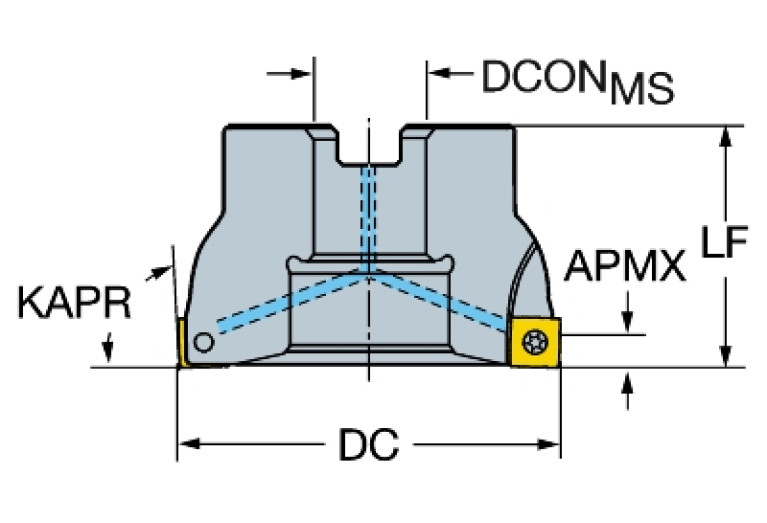

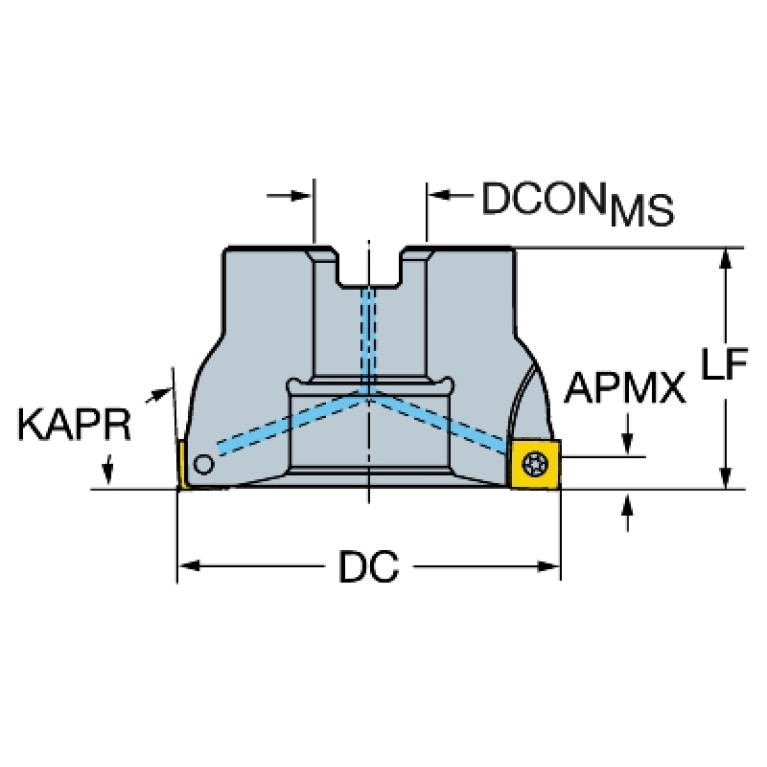

A1A (Cutting edge angle major Pos. A)

90 Degree

AZ (Plunge depth maximum)

0 mm

B3A (Inscribed circle diameter Pos. A)

8.5 mm

BI (Block index)

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

3.3 mm

CCONMS (Connection count machine side)

CDX (Cutting depth maximum)

5.5 mm

CICT (Cutting item count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

DC (Cutting diameter)

50.8 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

FDA07501230

F23 (Number of mounting layers)

F24 (Cutting item count per mounting layer)

GAMF (Rake angle radial)

15 Degree

GAMP (Rake angle axial)

19.9 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

FDA12R7500$$$$

KAPR (Tool cutting edge angle)

90 Degree

LOC-03 ISO

FDA12R7500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

0750

LOC-03 (DCONMS Diameter)

19.05 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA07501230

MIID (Master insert identification)

490R-08T308

OAL (Overall length)

40.005 mm

RMPX (Ramping angle maximum)

0 Degree

RPMX (Rotational speed maximum)

25200 1/min

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling

WT (Weight of item)

0.348 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
