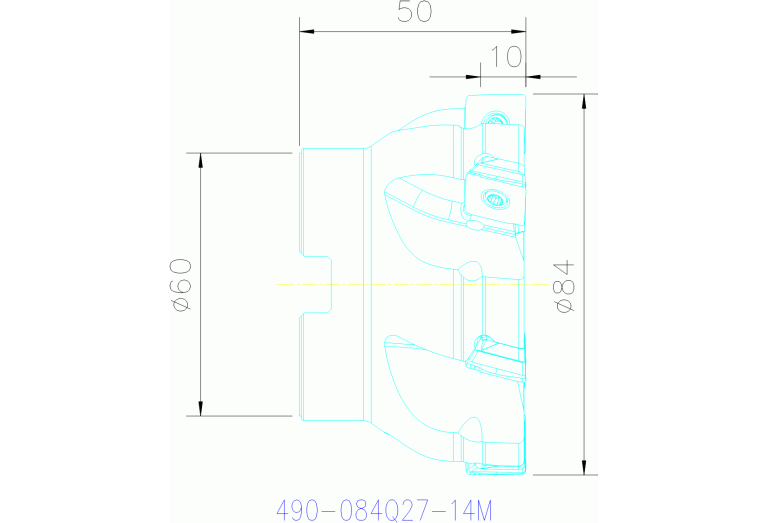

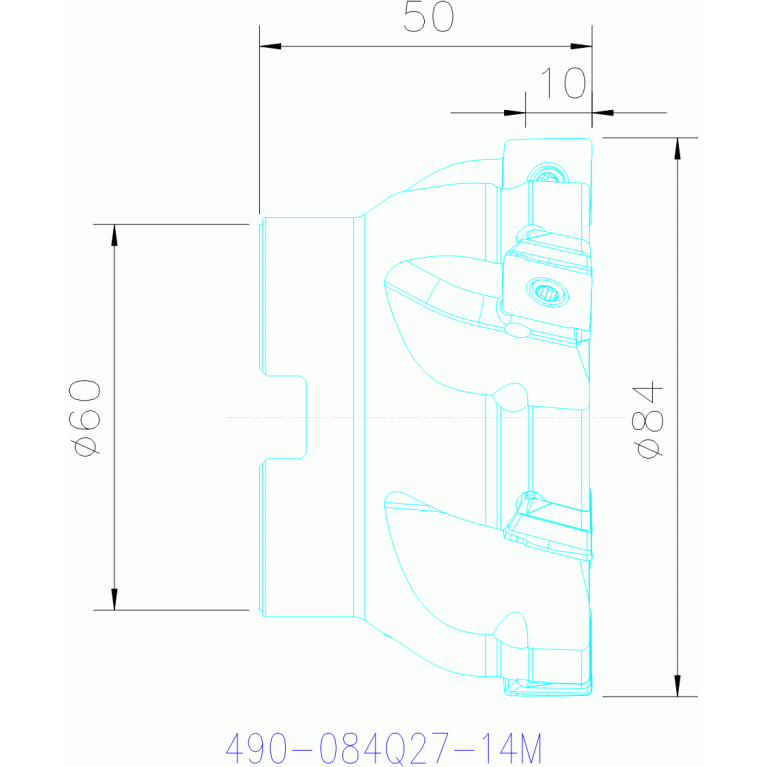

Главная Инструменты 308-02 - Shoulder milling cutter 490-084Q27-14M

490-084Q27-14M

490-084Q27-14M

SV - Sandvik-Coromant

Артикул: 6068005

В наличии

0 ₽

В корзину

Описание

Характеристики

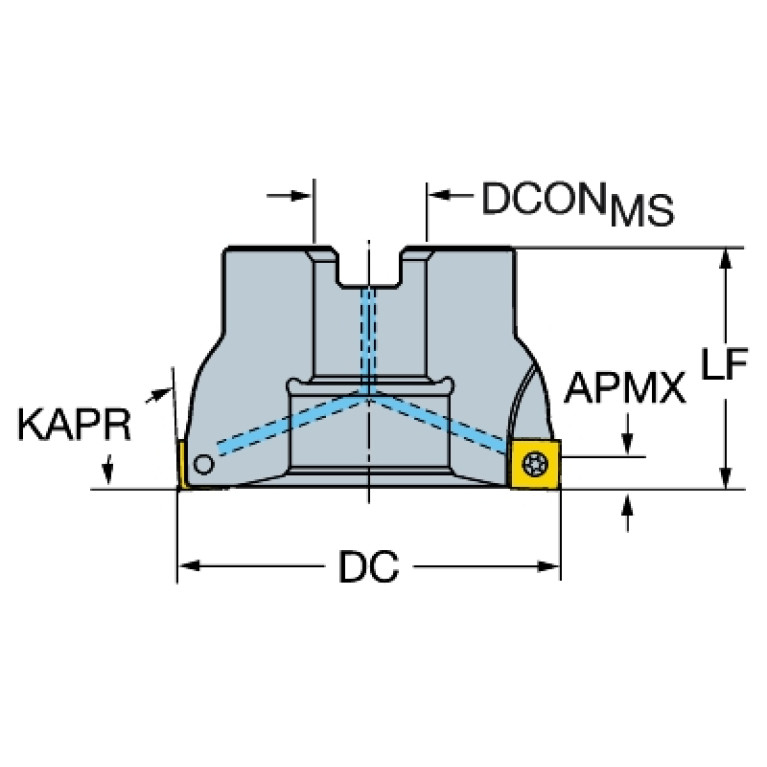

A1A (Cutting edge angle major Pos. A)

90 Degree

AZ (Plunge depth maximum)

0 mm

B3A (Inscribed circle diameter Pos. A)

13.8 mm

BLDA (Tool style code Position A)

2

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

3.9 mm

CCONMS (Connection count machine side)

2

CDX (Cutting depth maximum)

10 mm

CICT (Cutting item count)

6

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

2 - With Coolant exit, radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

2 - With Coolant exit, radial

DC (Cutting diameter)

84 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

FDA02701210

F23 (Number of mounting layers)

1

F24 (Cutting item count per mounting layer)

6

GAMF (Rake angle radial)

16 Degree

GAMP (Rake angle axial)

15 Degree

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

FDA12G2700$$$$

KAPR (Tool cutting edge angle)

90 Degree

LOC-03 ISO

FDA12G2700$$$$

LOC-03 (CCFMS Connection code form)

12

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0270

LOC-03 (DCONMS Diameter)

27 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02701210

OAL (Overall length)

50 mm

RMPX (Ramping angle maximum)

0 Degree

RPMX (Rotational speed maximum)

9800 1/min

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling

WT (Weight of item)

1.07 kg

ZEFF (Face effective cutting edge count)

6

ZEFP (Peripheral effective cutting edge count)

6
