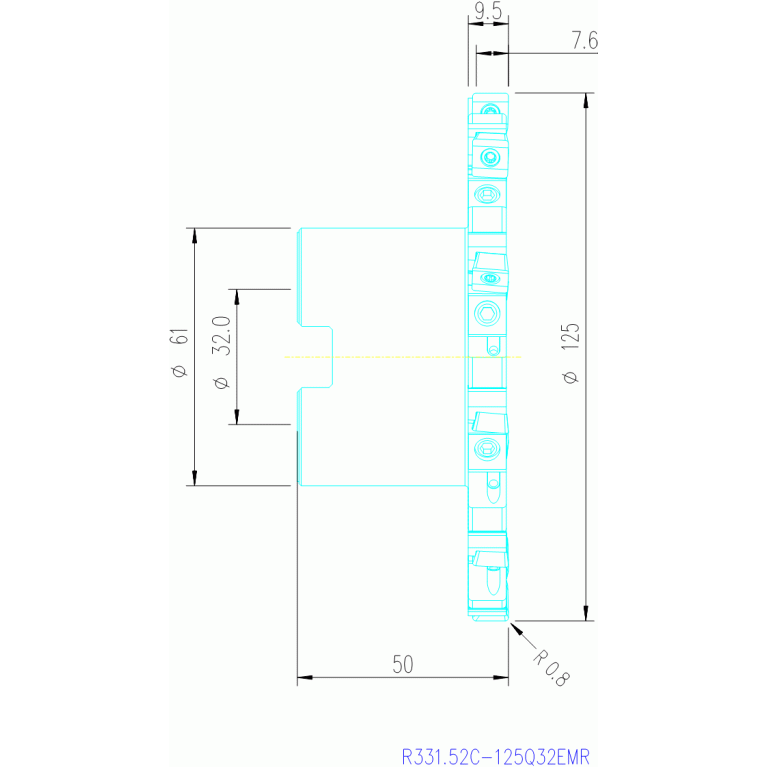

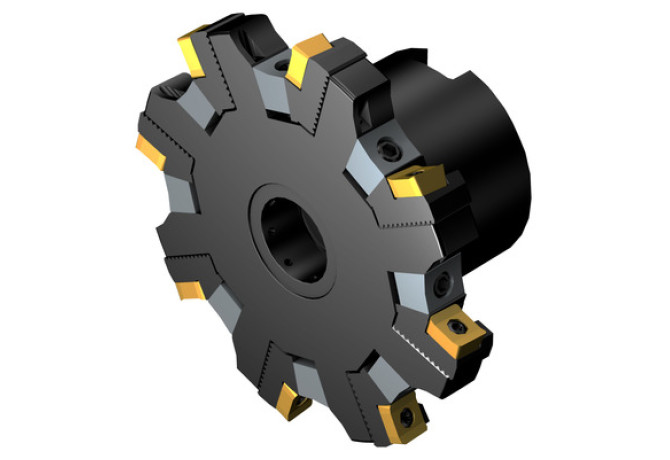

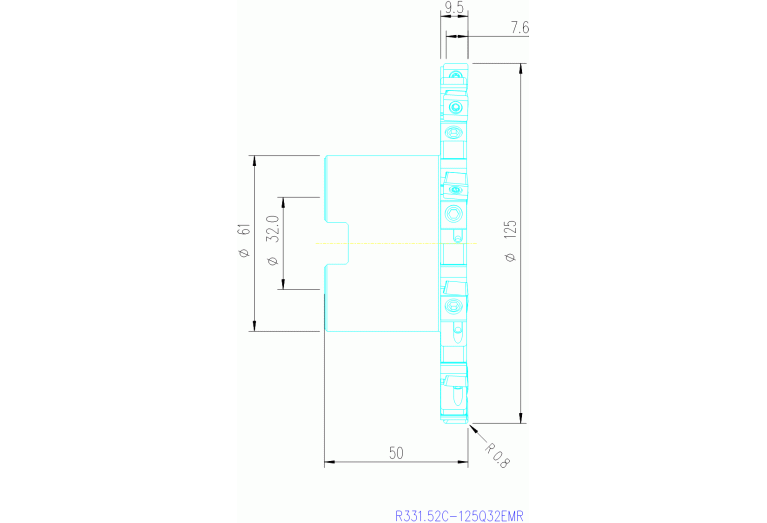

R331.52C-125Q32EMR
R331.52C-125Q32EMR
Артикул:
7843406
В наличии
0 ₽
Характеристики
A1A (Cutting edge angle major Pos. A)
90 Degree
A1B (Cutting edge angle major Pos. B)
90 Degree
A2A (Clearance angle major Pos. A)
0 Degree
A2B (Clearance angle major Pos. B)
0 Degree
B2A (Insert width Pos. A)
9.5 mm
B2B (Insert width Pos. B)
9.5 mm
B3A (Inscribed circle diameter Pos. A)
9.5 mm
B3B (Inscribed circle diameter Pos. B)
9.5 mm

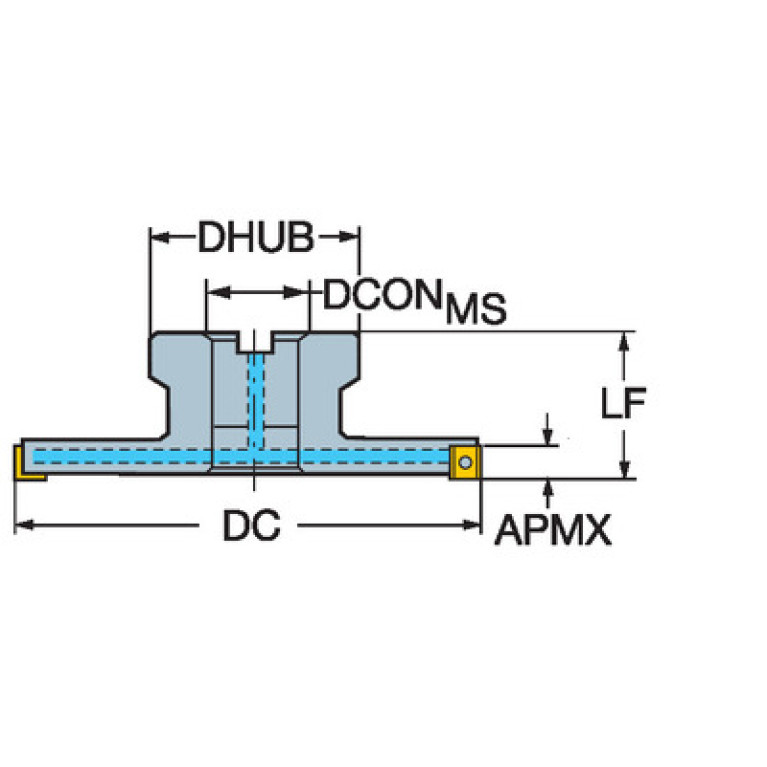

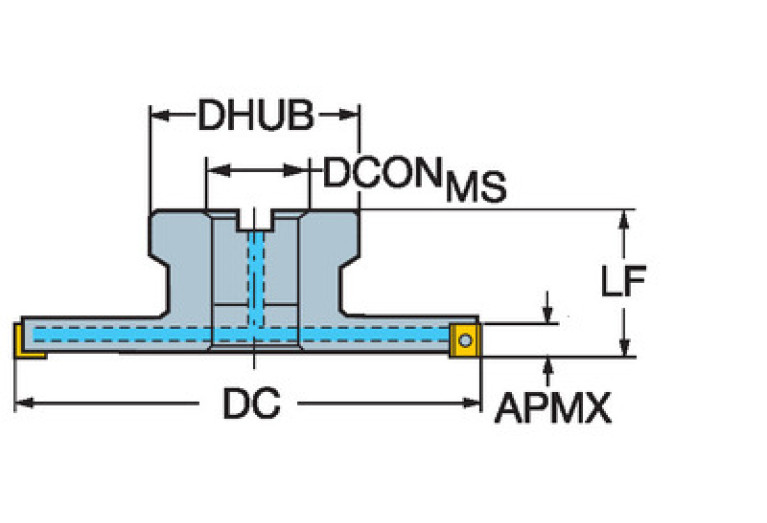

BD (Body diameter)
121.2 mm
BI (Block index)
1
BLDA (Tool style code Position A)
4
BLDB (Tool style code Position B)
4
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
4.45 mm
C1B (Insert thickness Pos. B)
4.45 mm
CCONMS (Connection count machine side)
2
CICT (Cutting item count)
20
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
2 - With Coolant exit, radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
2 - With Coolant exit, radial
DC (Cutting diameter)
125 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DHUB (Hub diameter)
61 mm
DIN
FDA03202210
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
FDA22G3200$$$$
LOC-02 (BI Block index)
2
LOC-02 (MIID Master insert identification)
N331.1A-08
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-03 ISO
FDA22G3200$$$$
LOC-03 (CCFMS Connection code form)
22
LOC-03 (CCSMS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-03 (CCTMS Connection code type)
FDA Milling arbor mounting
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
0320
LOC-03 (DCONMS Diameter)
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA03202210
MIID (Master insert identification)
N331.1A-08
MILTTY (Mill tool type ISO)
C - Disc mill - three side cutting
OAL (Overall length)
50 mm
RPMX (Rotational speed maximum)
14100 1/min
Working process
FPL - Face milling
WT (Weight of item)
1.1 kg
ZEFF (Face effective cutting edge count)
10
ZEFP (Peripheral effective cutting edge count)
10
