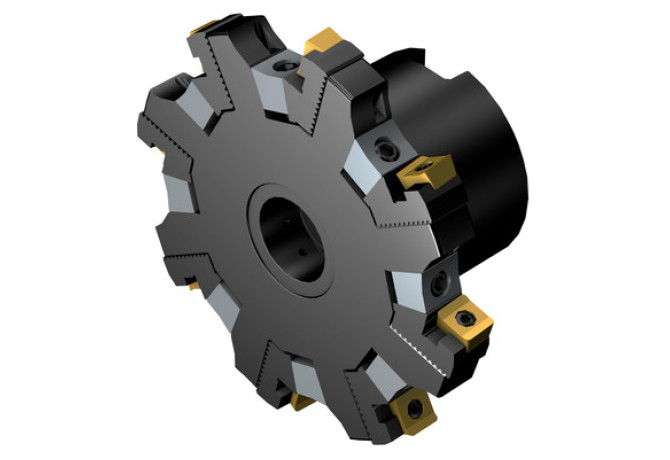

Главная Инструменты 308-05 - Full-side slot milling cutter R331.52C-080R25FML

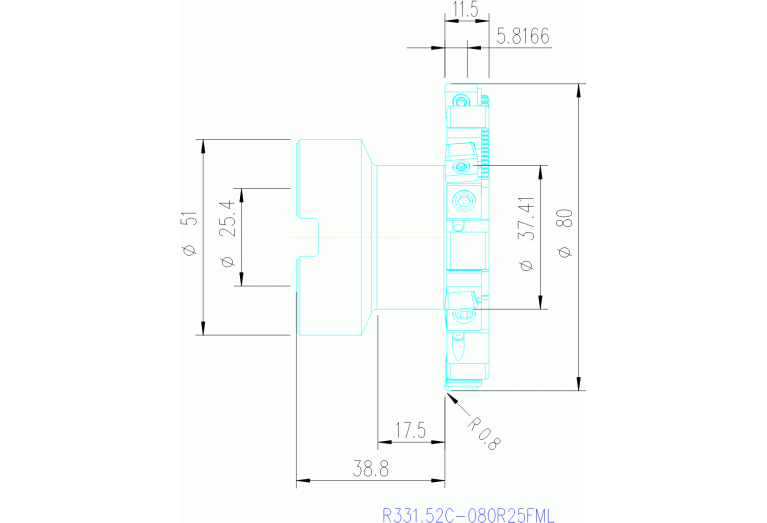

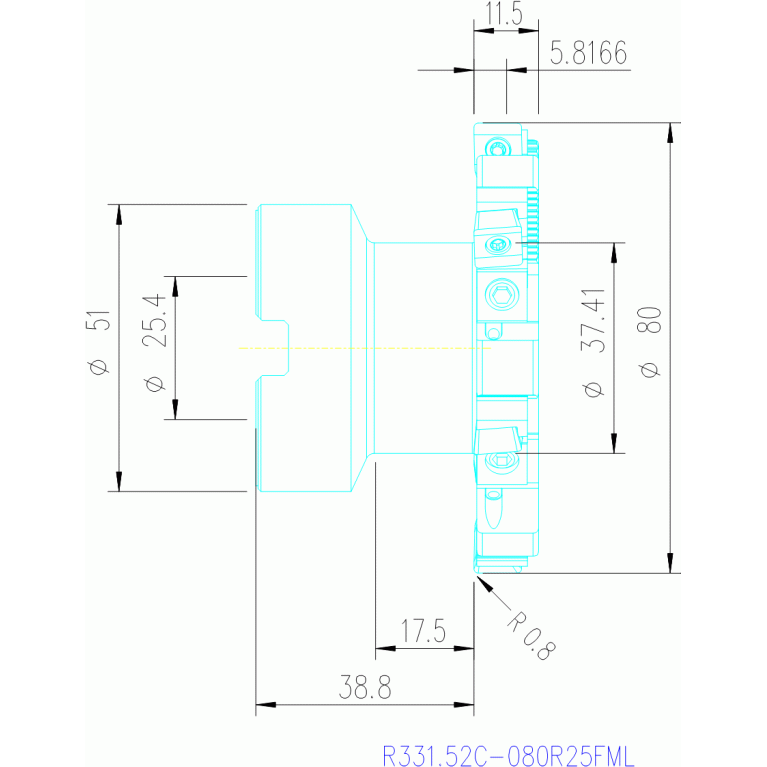

R331.52C-080R25FML

R331.52C-080R25FML R331.52C-080R25FML R331.52C-080R25FML R331.52C-080R25FML

R331.52C-080R25FML

SV - Sandvik-Coromant
Артикул: 7843389
В наличии
0 ₽
В корзину
Описание
Характеристики
A1A (Cutting edge angle major Pos. A)
90 Degree
A1B (Cutting edge angle major Pos. B)
90 Degree
A2A (Clearance angle major Pos. A)
0 Degree
A2B (Clearance angle major Pos. B)
0 Degree
B2A (Insert width Pos. A)
9.5 mm
B2B (Insert width Pos. B)
9.5 mm
B3A (Inscribed circle diameter Pos. A)
9.5 mm
B3B (Inscribed circle diameter Pos. B)
9.5 mm

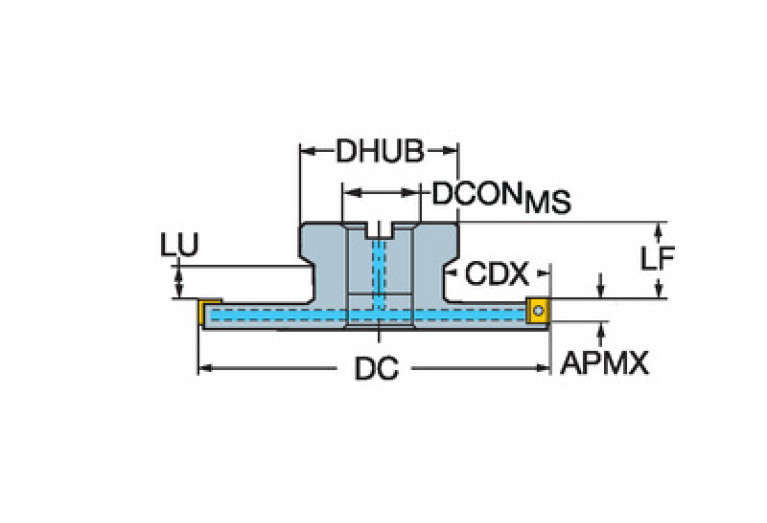

BD (Body diameter)
77.6 mm
BI (Block index)
1
BLDA (Tool style code Position A)
4
BLDB (Tool style code Position B)
4
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
4.45 mm
C1B (Insert thickness Pos. B)
4.45 mm
CCONMS (Connection count machine side)
2
CDX (Cutting depth maximum)
20.3 mm
CICT (Cutting item count)
12
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
2 - With Coolant exit, radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
2 - With Coolant exit, radial
DC (Cutting diameter)
80 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DHUB (Hub diameter)
51 mm
DIN
FDA10001230
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
FDA12S1000$$$$
LOC-02 (BI Block index)
2
LOC-02 (MIID Master insert identification)
N331.1A-08
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-03 ISO
FDA12S1000$$$$
LOC-03 (CCFMS Connection code form)
12
LOC-03 (CCSMS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-03 (CCTMS Connection code type)
FDA Milling arbor mounting
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
1000
LOC-03 (DCONMS Diameter)
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10001230
MIID (Master insert identification)
N331.1A-08
MILTTY (Mill tool type ISO)
C - Disc mill - three side cutting
OAL (Overall length)
38.8 mm
RPMX (Rotational speed maximum)
18100 1/min
Working process
FPL - Face milling
WT (Weight of item)
0.595 kg
ZEFF (Face effective cutting edge count)
6
ZEFP (Peripheral effective cutting edge count)
6
