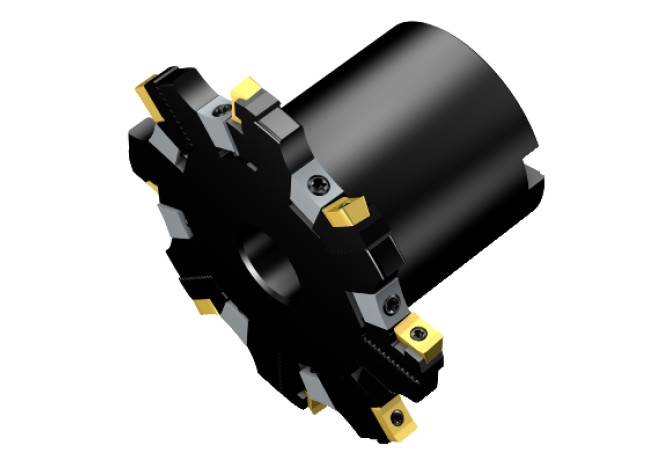

Главная Инструменты 308-05 - Full-side slot milling cutter R331.32-203R38RM0.925

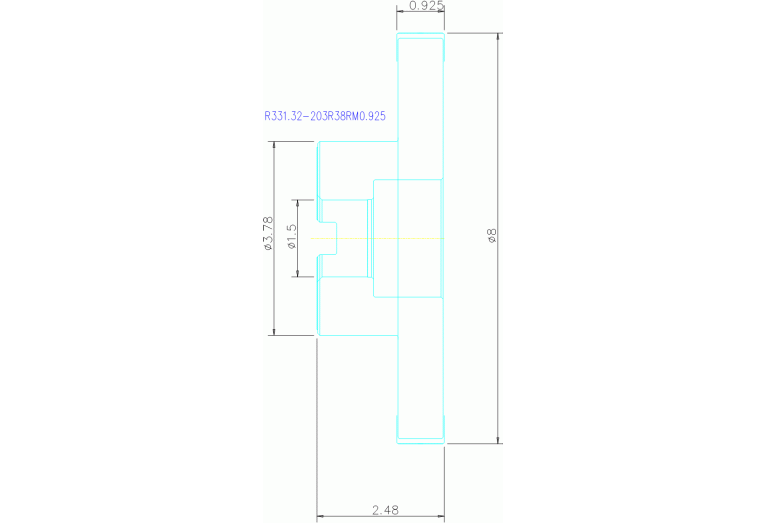

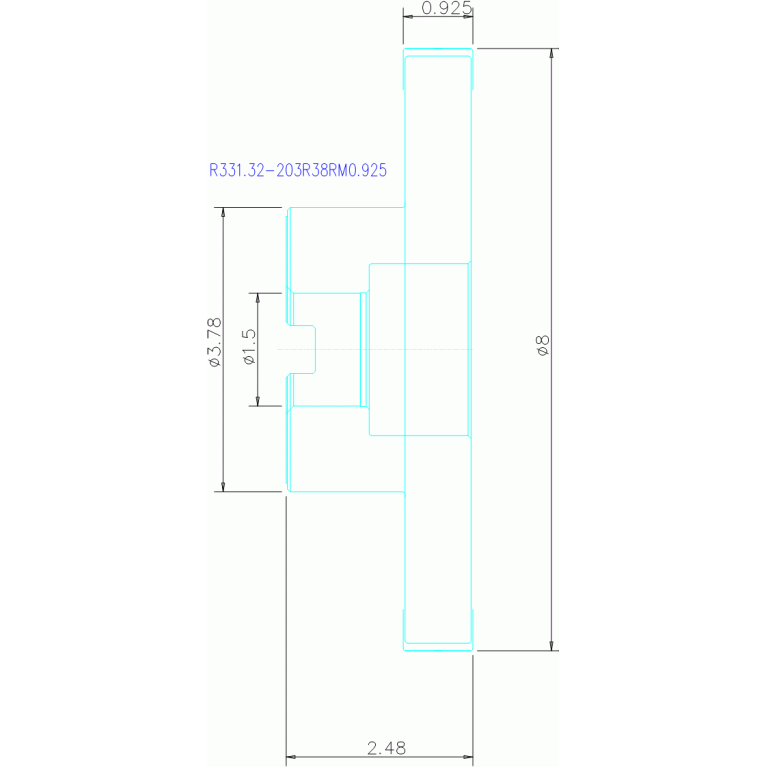

R331.32-203R38RM0.925

R331.32-203R38RM0.925 R331.32-203R38RM0.925 R331.32-203R38RM0.925 R331.32-203R38RM0.925

R331.32-203R38RM0.925

SV - Sandvik-Coromant
Артикул: 6448856
В наличии
0 ₽
В корзину
Описание
Характеристики
A1A (Cutting edge angle major Pos. A)
90 Degree
A1B (Cutting edge angle major Pos. B)
90 Degree
A2A (Clearance angle major Pos. A)
0 Degree
A2B (Clearance angle major Pos. B)
0 Degree
B2A (Insert width Pos. A)
11.5 mm
B2B (Insert width Pos. B)
11.5 mm
B3A (Inscribed circle diameter Pos. A)
11.5 mm
B3B (Inscribed circle diameter Pos. B)
11.5 mm
BI (Block index)
1
BLDA (Tool style code Position A)
4
BLDB (Tool style code Position B)
4
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
4.95 mm
C1B (Insert thickness Pos. B)
4.95 mm
CCONMS (Connection count machine side)
2

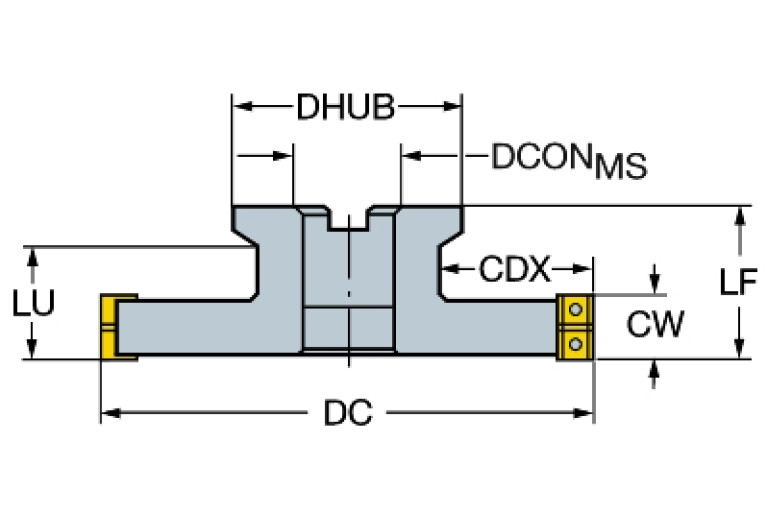

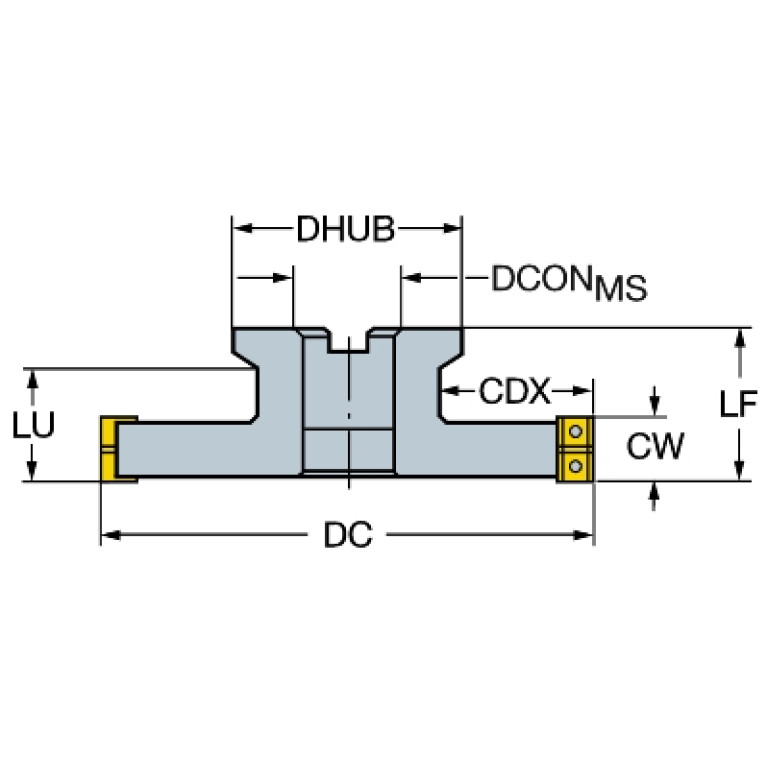

CDX (Cutting depth maximum)
52.603 mm
CICT (Cutting item count)
12
CNSC (Coolant entry style code)
0 - Without coolant entry
CWN (Cutting width minimum)
23.5 mm
CWX (Cutting width maximum)
26.5 mm
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DC (Cutting diameter)
203.2 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DHUB (Hub diameter)
96.012 mm
DIN
FDA15002220
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
FDA22S1500$$$$
LOC-03 ISO
FDA22S1500$$$$
LOC-03 (CCFMS Connection code form)
22
LOC-03 (CCSMS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-03 (CCTMS Connection code type)
FDA Milling arbor mounting
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
1500
LOC-03 (DCONMS Diameter)
38.1 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA15002220
MIID (Master insert identification)
N331.1A-14
MILTTY (Mill tool type ISO)
C - Disc mill - three side cutting
OAL (Overall length)
62.992 mm
RPMX (Rotational speed maximum)
8000 1/min
Working process
FEC - Square shoulder milling,FPL - Face milling,FTR - Slot cutting
WT (Weight of item)
10.16 kg
ZEFF (Face effective cutting edge count)
6
ZEFP (Peripheral effective cutting edge count)
6
