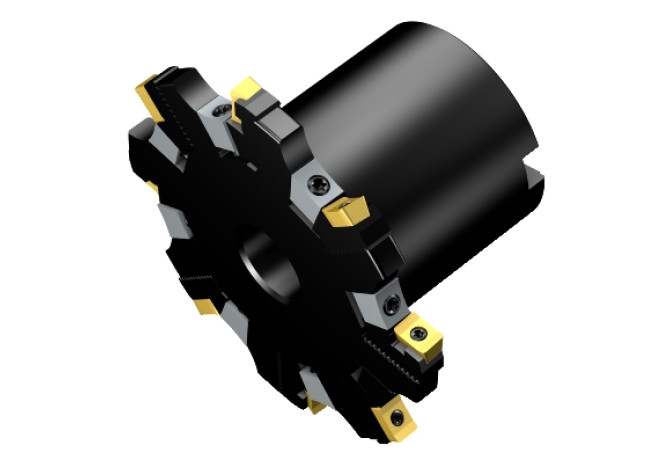

Главная Инструменты 308-05 - Full-side slot milling cutter R331.32-200Q40RM23.50

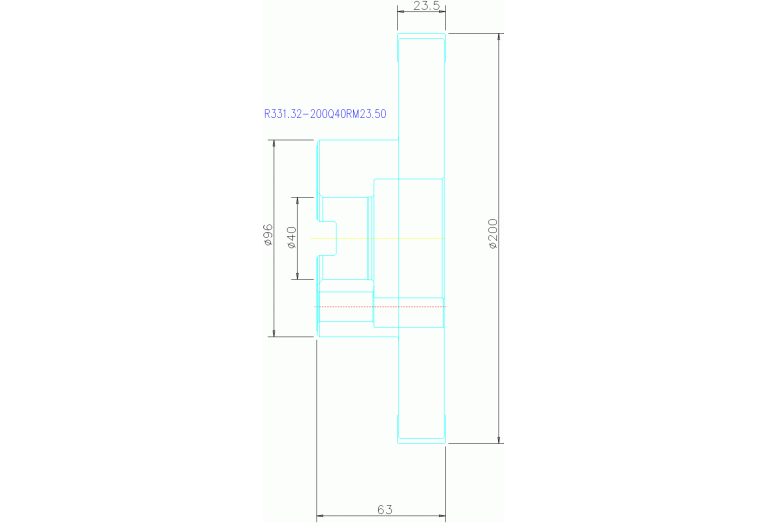

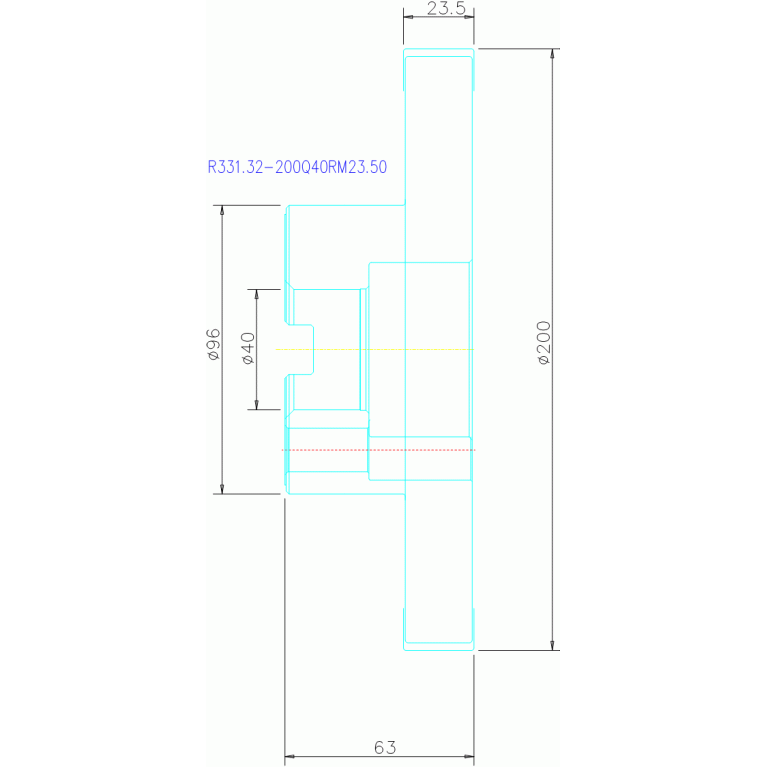

R331.32-200Q40RM23.50

R331.32-200Q40RM23.50 R331.32-200Q40RM23.50 R331.32-200Q40RM23.50 R331.32-200Q40RM23.50

R331.32-200Q40RM23.50

SV - Sandvik-Coromant
Артикул: 5745079
В наличии
0 ₽
В корзину
Описание
Характеристики
A1A (Cutting edge angle major Pos. A)
90 Degree
A1B (Cutting edge angle major Pos. B)
90 Degree
A2A (Clearance angle major Pos. A)
0 Degree
A2B (Clearance angle major Pos. B)
0 Degree
B2A (Insert width Pos. A)
11.5 mm
B2B (Insert width Pos. B)
11.5 mm
B3A (Inscribed circle diameter Pos. A)
11.5 mm
B3B (Inscribed circle diameter Pos. B)
11.5 mm
BI (Block index)
1
BLDA (Tool style code Position A)
4
BLDB (Tool style code Position B)
4
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
4.95 mm
C1B (Insert thickness Pos. B)
4.95 mm
CCONMS (Connection count machine side)
2

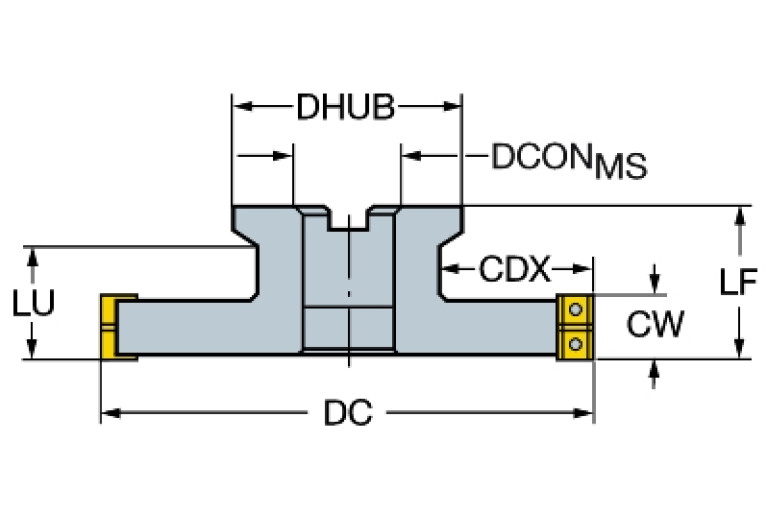

CDX (Cutting depth maximum)
51 mm
CICT (Cutting item count)
12
CNSC (Coolant entry style code)
0 - Without coolant entry
CWN (Cutting width minimum)
23.5 mm
CWX (Cutting width maximum)
26.5 mm
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DC (Cutting diameter)
200 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DHUB (Hub diameter)
96 mm
DIN
SPK04000103
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SPK01G4000$$$$
LOC-03 ISO
SPK01G4000$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or
LOC-03 (CCTMS Connection code type)
SPK Spindle nose mounting
LOC-03 (CCUMS Connection code unit base)
0 Metric
LOC-03 (CZCMS Connection size code)
0400
LOC-03 (DCONMS Diameter)
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SPK04000103
MIID (Master insert identification)
N331.1A-14
MILTTY (Mill tool type ISO)
C - Disc mill - three side cutting
OAL (Overall length)
63 mm
RPMX (Rotational speed maximum)
8000 1/min
Working process
FEC - Square shoulder milling,FPL - Face milling,FTR - Slot cutting
WT (Weight of item)
10.8 kg
ZEFF (Face effective cutting edge count)
6
ZEFP (Peripheral effective cutting edge count)
6
