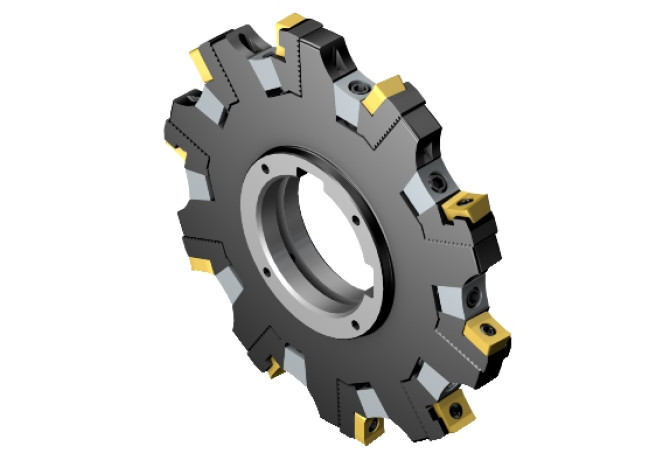

Главная Инструменты 308-05 - Full-side slot milling cutter N331.32C-160S40DM

N331.32C-160S40DM

N331.32C-160S40DM N331.32C-160S40DM N331.32C-160S40DM N331.32C-160S40DM

N331.32C-160S40DM

SV - Sandvik-Coromant
Артикул: 7295367
В наличии
0 ₽
В корзину
Описание
Характеристики
A1A (Cutting edge angle major Pos. A)
90 Degree
A1B (Cutting edge angle major Pos. B)
90 Degree
A2A (Clearance angle major Pos. A)
0 Degree
A2B (Clearance angle major Pos. B)
0 Degree
B2A (Insert width Pos. A)
9.5 mm
B2B (Insert width Pos. B)
9.5 mm
B3A (Inscribed circle diameter Pos. A)
9.5 mm
B3B (Inscribed circle diameter Pos. B)
9.5 mm
BI (Block index)
1
BLDA (Tool style code Position A)
4
BLDB (Tool style code Position B)
4
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
4.45 mm
C1B (Insert thickness Pos. B)
4.45 mm
CCONMS (Connection count machine side)
2

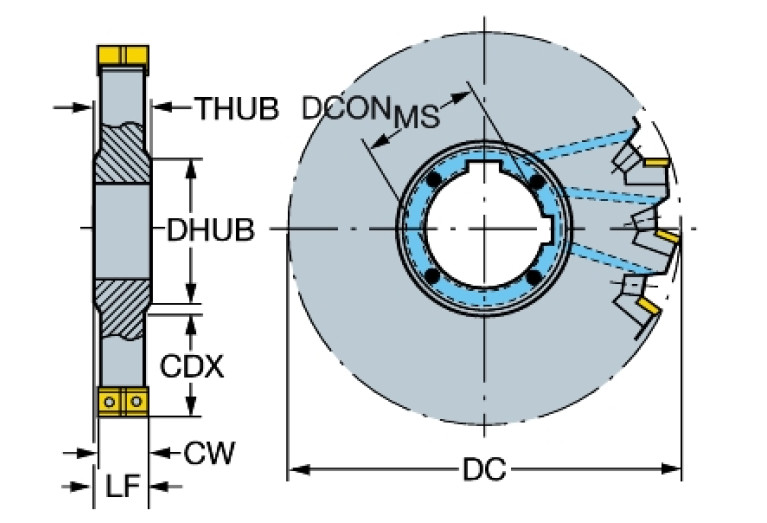

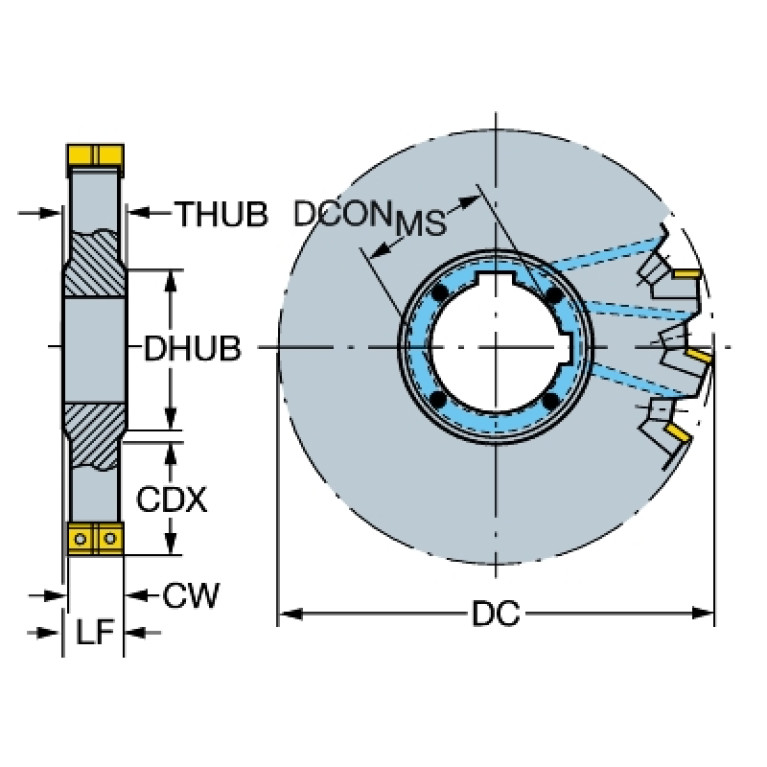

CDX (Cutting depth maximum)
51.5 mm
CICT (Cutting item count)
12
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CWN (Cutting width minimum)
8 mm
CWX (Cutting width maximum)
10 mm
CXSC (Coolant exit style code)
2 - With Coolant exit, radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
2 - With Coolant exit, radial

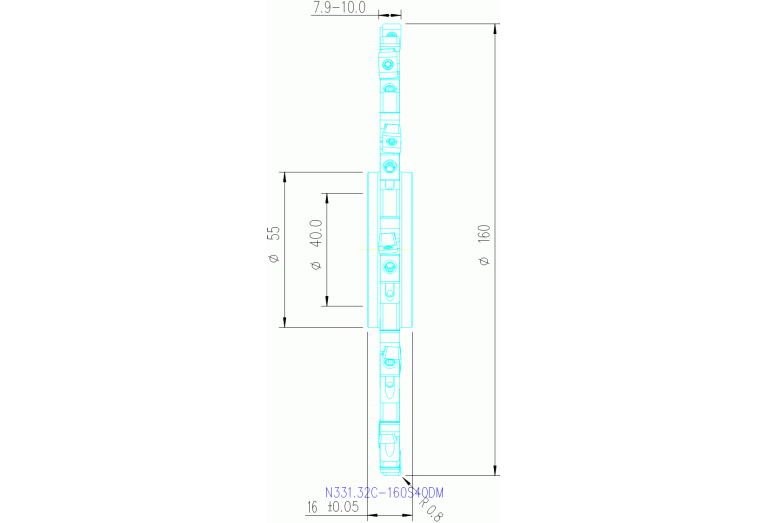

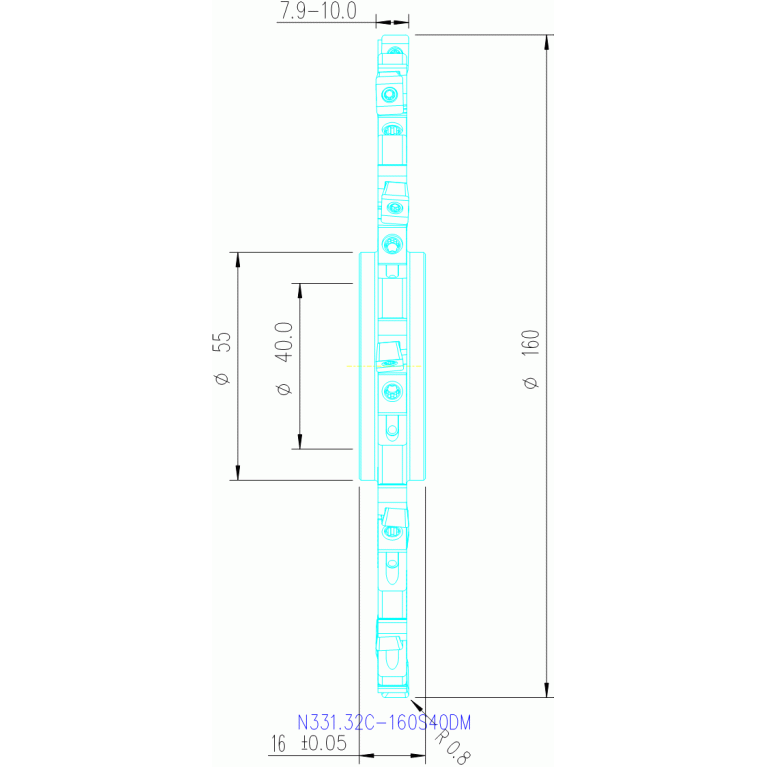

DC (Cutting diameter)
160 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DHUB (Hub diameter)
55 mm
DIN
FDA04000110
HAND (Cutting direction)
N - Neutral
Interface codes
J6 / J61
ISO
FDA01G4000$$$$
LOC-03 ISO
FDA01G4000$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-03 (CCTMS Connection code type)
FDA Milling arbor mounting
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
0400
LOC-03 (DCONMS Diameter)
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA04000110
MIID (Master insert identification)
N331.1A-05
MILTTY (Mill tool type ISO)
C - Disc mill - three side cutting
OAL (Overall length)
16 mm
RPMX (Rotational speed maximum)
10200 1/min
Working process
FEC - Square shoulder milling,FPL - Face milling,FTR - Slot cutting
WT (Weight of item)
0.863 kg
ZEFF (Face effective cutting edge count)
6
ZEFP (Peripheral effective cutting edge count)
6
