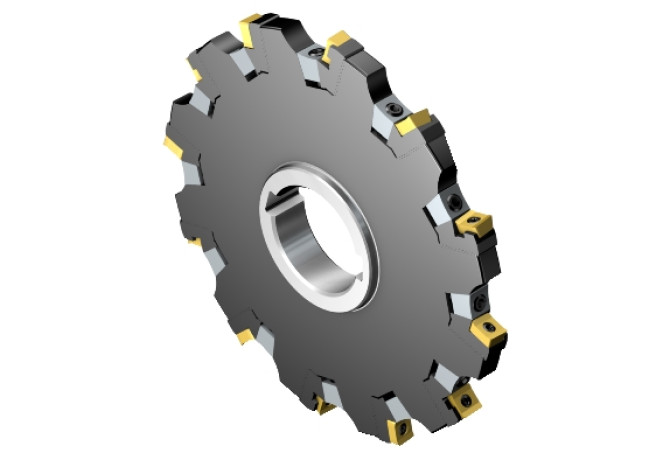

Главная Инструменты 308-05 - Full-side slot milling cutter N331.32-200S50FM12.00

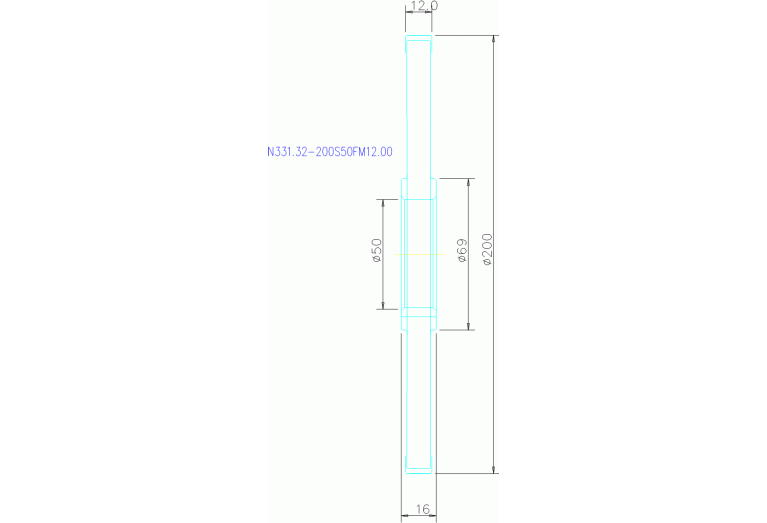

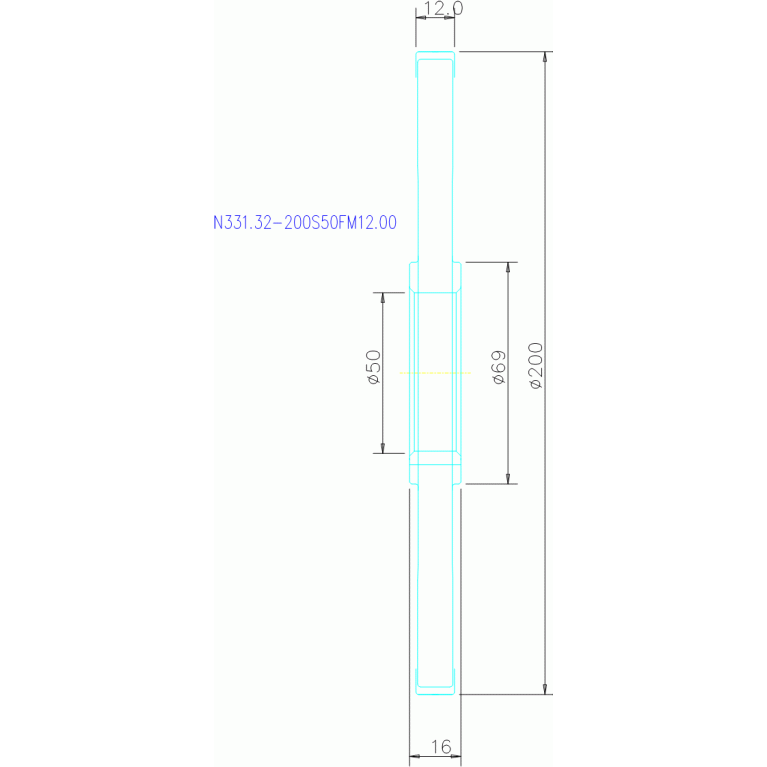

N331.32-200S50FM12.00

Артикул: 5739166

В наличии

0 ₽

В корзину

Описание

Характеристики

A1A (Cutting edge angle major Pos. A)

90 Degree

A1B (Cutting edge angle major Pos. B)

90 Degree

A2A (Clearance angle major Pos. A)

0 Degree

A2B (Clearance angle major Pos. B)

0 Degree

B2A (Insert width Pos. A)

9.5 mm

B2B (Insert width Pos. B)

9.5 mm

B3A (Inscribed circle diameter Pos. A)

9.5 mm

B3B (Inscribed circle diameter Pos. B)

9.5 mm

BI (Block index)

BLDA (Tool style code Position A)

BLDB (Tool style code Position B)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

4.45 mm

C1B (Insert thickness Pos. B)

4.45 mm

CCONMS (Connection count machine side)

CDX (Cutting depth maximum)

64.5 mm

CICT (Cutting item count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CWN (Cutting width minimum)

12 mm

CWX (Cutting width maximum)

15 mm

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

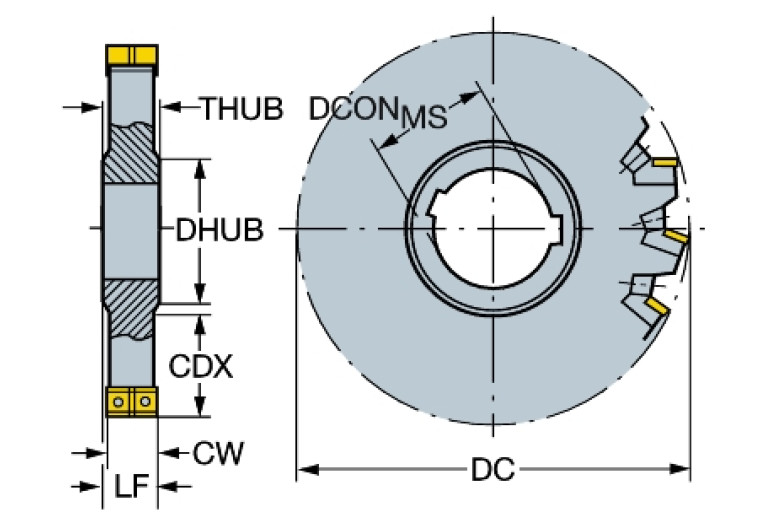

DC (Cutting diameter)

200 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DHUB (Hub diameter)

69 mm

DIN

FDA05000100

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

FDA01G5000$$$$

LOC-03 ISO

FDA01G5000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0500

LOC-03 (DCONMS Diameter)

50 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA05000100

MIID (Master insert identification)

N331.1A-08

MILTTY (Mill tool type ISO)

C - Disc mill - three side cutting

OAL (Overall length)

16 mm

RPMX (Rotational speed maximum)

11000 1/min

Working process

FEC - Square shoulder milling,FPL - Face milling,FTR - Slot cutting

WT (Weight of item)

2.384 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
