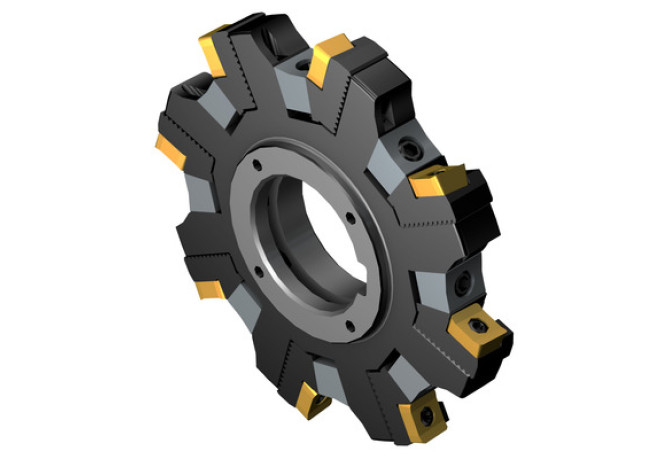

Главная Инструменты 308-05 - Full-side slot milling cutter L331.52C-152T38KM

L331.52C-152T38KM

Артикул: 7843379

В наличии

0 ₽

В корзину

Описание

Характеристики

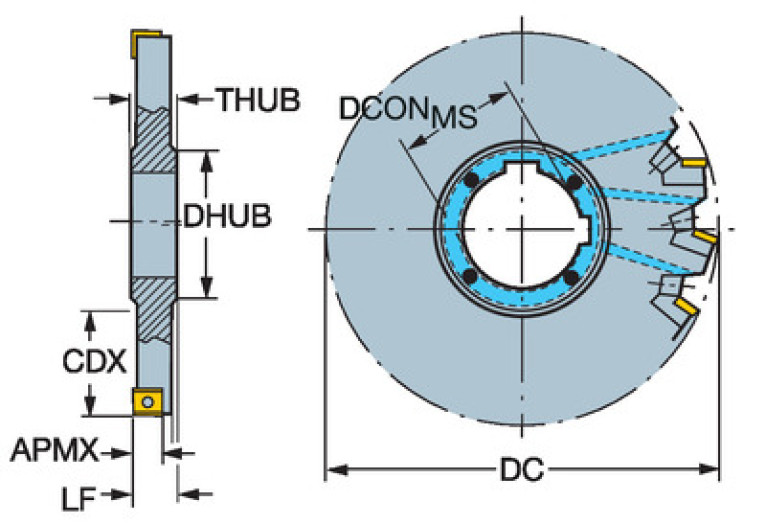

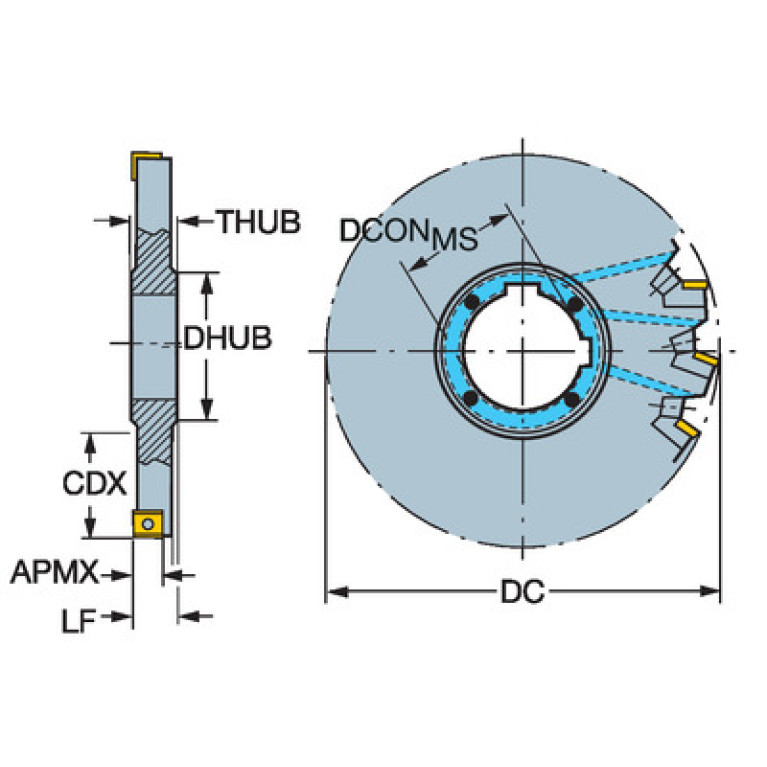

A1A (Cutting edge angle major Pos. A)

90 Degree

A1B (Cutting edge angle major Pos. B)

90 Degree

A2A (Clearance angle major Pos. A)

0 Degree

A2B (Clearance angle major Pos. B)

0 Degree

B2A (Insert width Pos. A)

11.5 mm

B2B (Insert width Pos. B)

11.5 mm

B3A (Inscribed circle diameter Pos. A)

11.5 mm

B3B (Inscribed circle diameter Pos. B)

11.5 mm

BD (Body diameter)

148.1 mm

BI (Block index)

BLDA (Tool style code Position A)

BLDB (Tool style code Position B)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

4.95 mm

C1B (Insert thickness Pos. B)

4.95 mm

CCONMS (Connection count machine side)

CDX (Cutting depth maximum)

49 mm

CICT (Cutting item count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

2 - With Coolant exit, radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

2 - With Coolant exit, radial

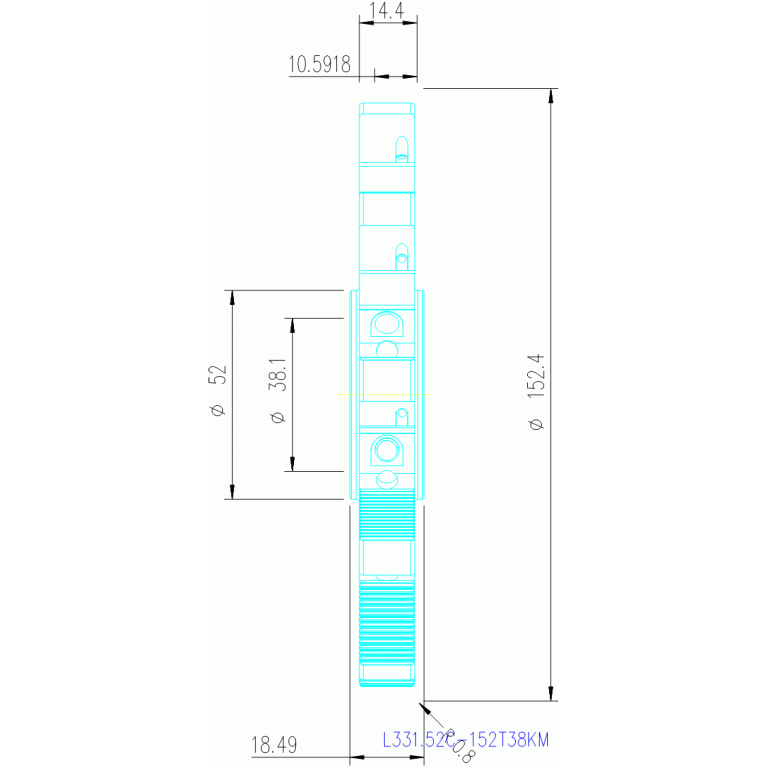

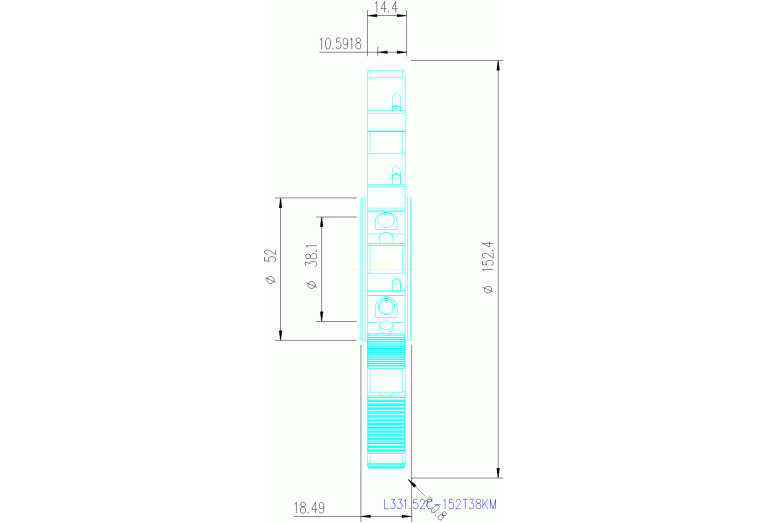

DC (Cutting diameter)

152.4 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DHUB (Hub diameter)

52 mm

DIN

FDA15000130

HAND (Cutting direction)

L - Left

Interface codes

J6 / J61

ISO

FDA01S1500$$$$

LOC-02 (BI Block index)

LOC-02 (MIID Master insert identification)

N331.1A-11

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-03 ISO

FDA01S1500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

1500

LOC-03 (DCONMS Diameter)

38.1 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA15000130

MIID (Master insert identification)

N331.1A-11

MILTTY (Mill tool type ISO)

C - Disc mill - three side cutting

OAL (Overall length)

18.5 mm

RPMX (Rotational speed maximum)

10800 1/min

Working process

FPL - Face milling

WT (Weight of item)

1.429 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
