Главная Инструменты 308-05 - Full-side slot milling cutter A329-102T25-F

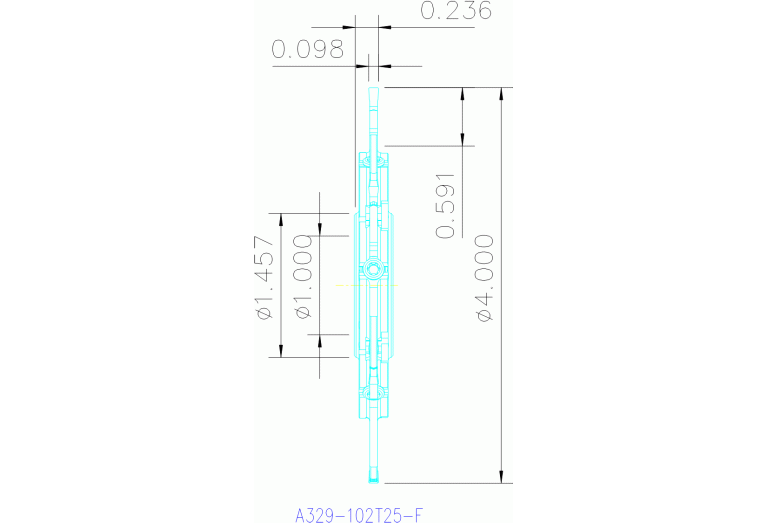

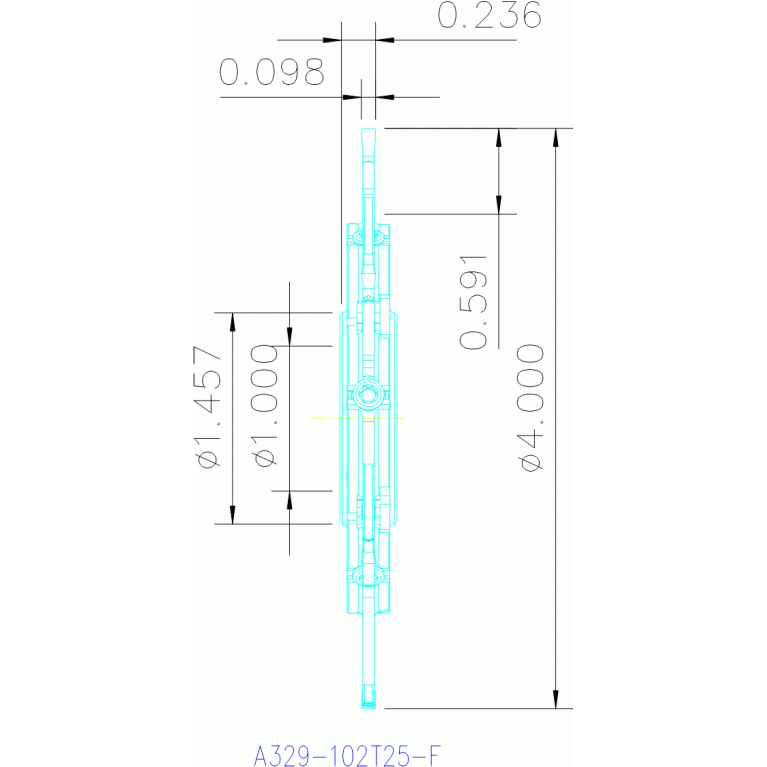

A329-102T25-F

A329-102T25-F A329-102T25-F A329-102T25-F A329-102T25-F

A329-102T25-F

SV - Sandvik-Coromant
Артикул: 5875673
В наличии
0 ₽
В корзину
Описание
Характеристики

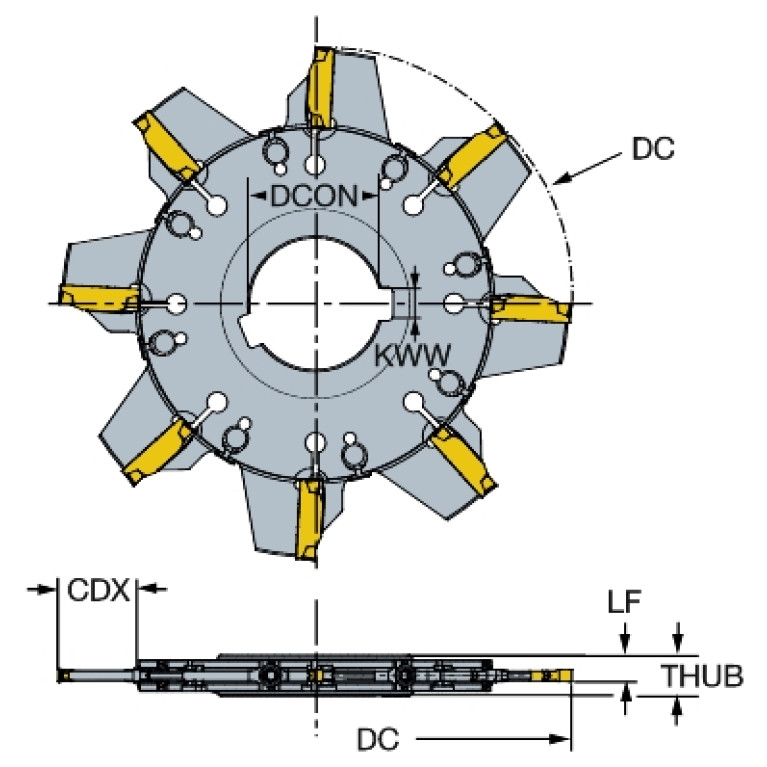

BI (Block index)
1
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
4.3 mm
CCONMS (Connection count machine side)
2
CDX (Cutting depth maximum)
15.011 mm
CNSC (Coolant entry style code)
0 - Without coolant entry
CWN (Cutting width minimum)
2.5 mm
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DC (Cutting diameter)
101.6 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DHUB (Hub diameter)
37.008 mm
DIN
FDA10000120
F24 (Cutting item count per mounting layer)
6
HAND (Cutting direction)
N - Neutral
Interface codes
J6 / J61
ISO
FDA01S1000$$$$
LOC-03 ISO
FDA01S1000$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-03 (CCTMS Connection code type)
FDA Milling arbor mounting
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
1000
LOC-03 (DCONMS Diameter)
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10000120
MIID (Master insert identification)
N123F2-0250-
MILTTY (Mill tool type ISO)
C - Disc mill - three side cutting
OAL (Overall length)
10.008 mm
RPMX (Rotational speed maximum)
4400 1/min
Working process
FSC - Thread milling,FTR - Slot cutting
WT (Weight of item)
0.54 kg
ZEFF (Face effective cutting edge count)
6
ZEFP (Peripheral effective cutting edge count)
6
