Главная Инструменты 308-05 - Full-side slot milling cutter 329-125S32-G

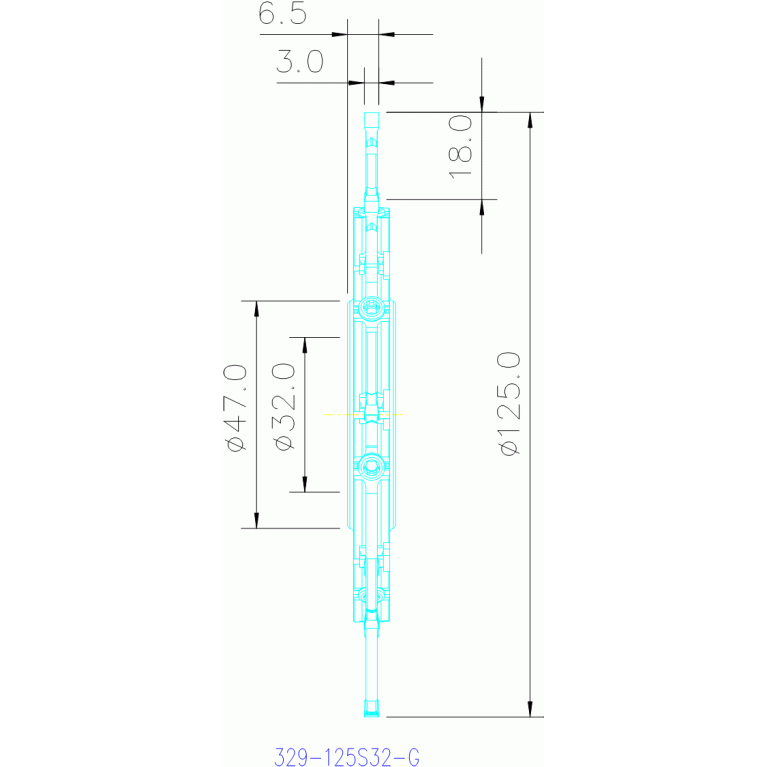

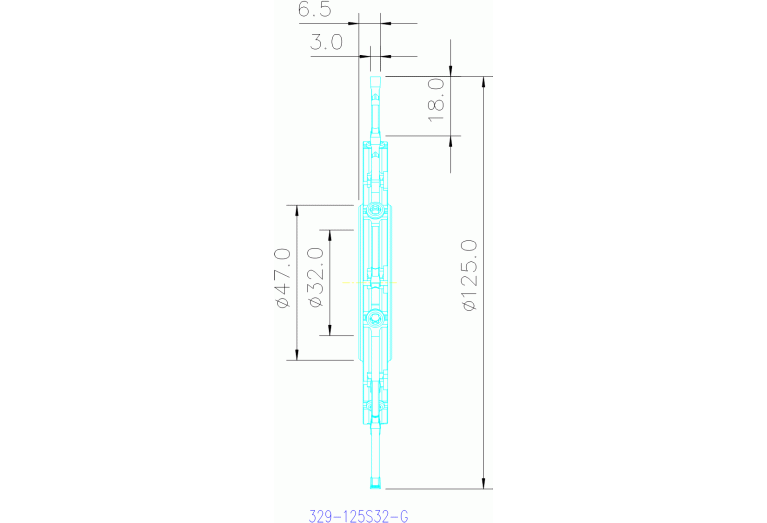

329-125S32-G

329-125S32-G

SV - Sandvik-Coromant

Артикул: 5758704

В наличии

0 ₽

В корзину

Описание

Характеристики

BI (Block index)

1

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

4.3 mm

C1B (Insert thickness Pos. B)

4.3 mm

CCONMS (Connection count machine side)

2

CDX (Cutting depth maximum)

18 mm

CICT (Cutting item count)

16

CNSC (Coolant entry style code)

0 - Without coolant entry

CWN (Cutting width minimum)

3 mm

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DC (Cutting diameter)

125 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DHUB (Hub diameter)

47 mm

DIN

FDA03200100

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISISO A (Indicator for ISO cutting plate Pos.A)

ISISO B (Indicator for ISO cutting plate Pos.B)

ISO

FDA01G3200$$$$

LOC-02 (BI Block index)

2

LOC-02 (MIID Master insert identification)

N123G2-0300-

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-03 ISO

FDA01G3200$$$$

LOC-03 (CCFMS Connection code form)

01

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

FDA Milling arbor mounting

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0320

LOC-03 (DCONMS Diameter)

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA03200100

MIID (Master insert identification)

N123G2-0300-

MILTTY (Mill tool type ISO)

C - Disc mill - three side cutting

OAL (Overall length)

10 mm

RPMX (Rotational speed maximum)

3700 1/min

Working process

FSC - Thread milling,FTR - Slot cutting

WT (Weight of item)

0.707 kg

ZEFF (Face effective cutting edge count)

8

ZEFP (Peripheral effective cutting edge count)

8
