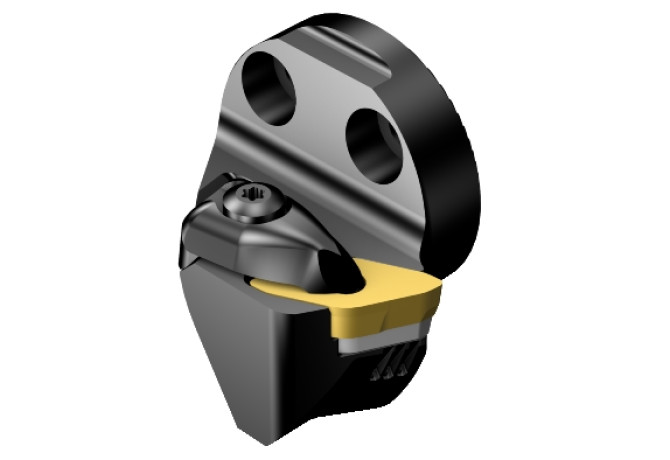

Главная Инструменты 309-13 - System tool for pull back machining SL-CP-X-25BL-40-11B

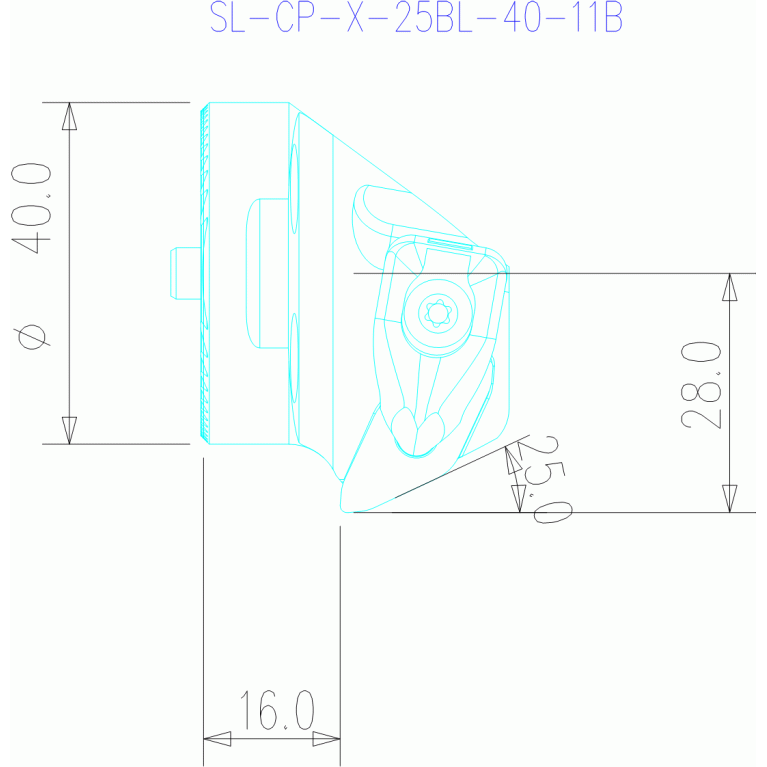

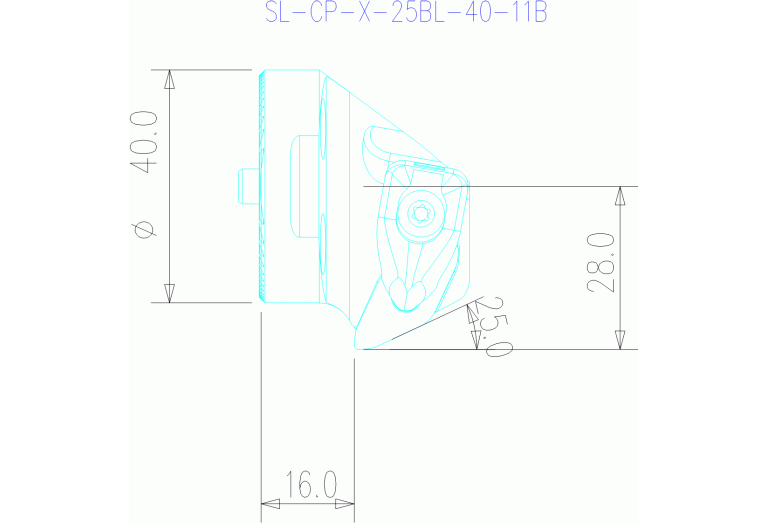

SL-CP-X-25BL-40-11B

Артикул: 7478342

В наличии

0 ₽

В корзину

Описание

Характеристики

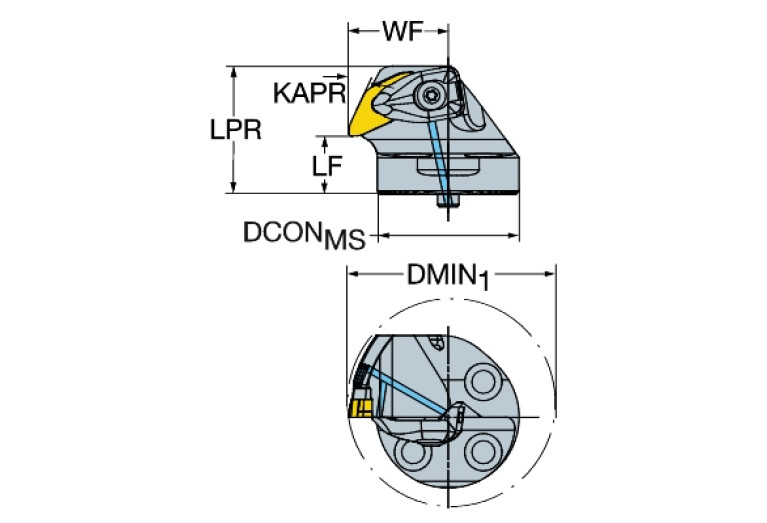

B3A (Inscribed circle diameter Pos. A)

11 mm

BI (Block index)

C1A (Insert thickness Pos. A)

5 mm

CEATC (Tool cutting edge angle type code)

P - Pull back

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

D1A (Corner radius Pos. A)

0.794 mm

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

CMS04000197

DIN CSW1

SV-TL110500

DMIN (Minimum bore diameter)

90 mm

EPSR (Insert included angle)

80 Degree

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

L - Left

HF (Functional height)

0 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

CMS01C0400$$$$

ISO CSW1

SV$$TL1105002**$$**

KAPR (Tool cutting edge angle)

25 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

16 mm

LOC-03 ISO

CMS01C0400$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

7 Serrated connection

LOC-03 (CCTMS Connection code type)

CMS Coromant Modular boring SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CMS04000197

LPR (Protruding length)

16 mm

LTA (Length tool assembly)

16 mm

MIID (Master insert identification)

CP-B1108

OAL (Overall length)

36 mm

WF (Functional width)

28 mm

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DFI - Internal form turning,DPI - Profiling internal

WT (Weight of item)

0.176 kg
